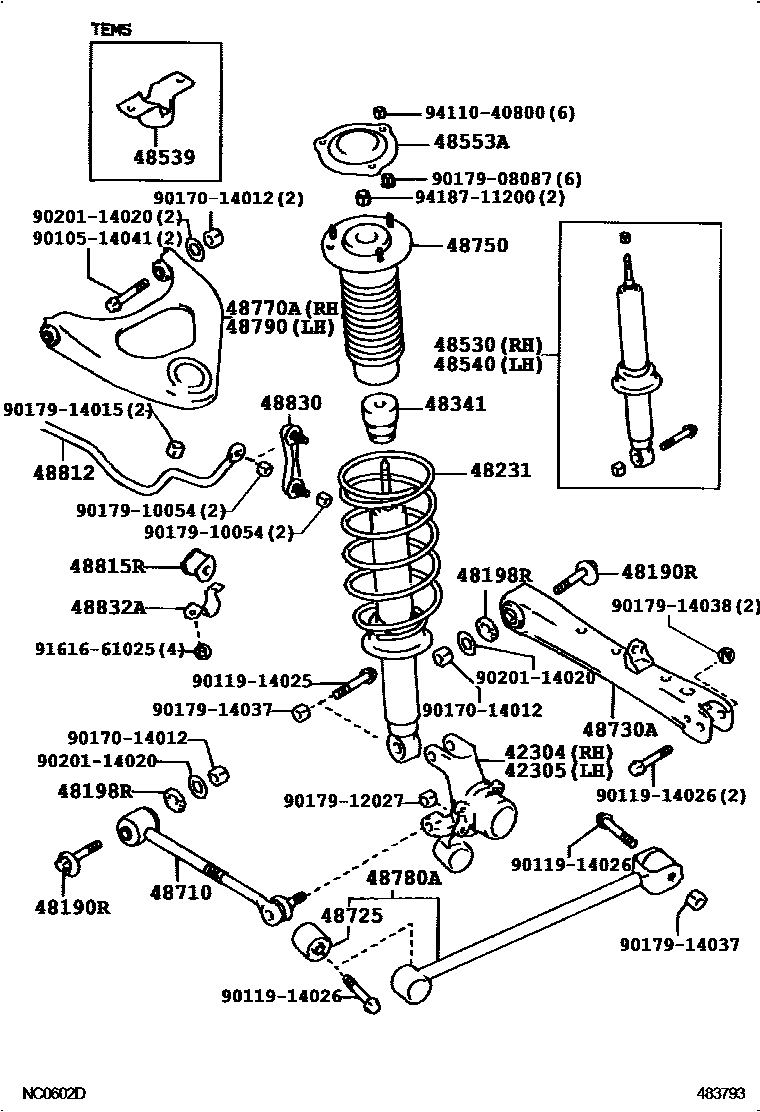

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-22010iGX81,JZX81,MX83198808-199211

sub42304-22011

main42304-22011iGX81,JZX81,MX83199211-199512

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-22010iGX81,JZX81,MX83198808-199211

sub42305-22011

main42305-22011iGX81,JZX81,MX83199211-199512

48190RCAM ASSY, CAMBER ADJUST

main48190-22020iGX81,MX83198808-199302

sub48190-22021

main48190-22021iGX81199302-199512

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-14010iGX81,JZX81,MX83198808-199512

sub48198-50011

48231SPRING, COIL, REAR

main48231-2A020iSX80;YX80..KYO198808-199008

main48231-2A022iSX80;LX80..GL..TD;LX80,YX80..GR,KYO199008-199512

main48231-2A030iLX80198808-199008

main48231-2A080iGX81..TWT198808-199008

main48231-2A082iJZX81..TWT199008-199210

main48231-2A180iGX81..SPC198808-198908

main48231-2A181iGX81,MX83..GDG198908-199008

sub48231-2A183

main48231-2A183iJZX81,MX83..TWC199008-199302

main48231-2A190iGX81..TWC198808-198908

main48231-2A191iGX81..TWC198908-199008

main48231-2A193iGX81..TWC199008-199302

main48231-2A200iYX80..GL198808-199008

main48231-2A201iLX80,YX80..(3FC,5F)..GL..(DSL,LPG)199008-199512

main48231-2A230iGX81..HTWC198808-199512

main48231-2A330iYX80..4FC..GL199302-199512

48341BUMPER, REAR SPRING

main48341-22130iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

sub48341-22131

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-29066iGX81..TWT198808-198908

sub48530-29166

main48530-29076iGX81..HTWC198808-198912

sub48530-29077

main48530-29077iGX81..HTWC198912-199008

sub48530-29087

main48530-29096iGX81..SPC,TWC198808-198908

sub48530-29097

main48530-29097iGX81,MX83..SPC,TWC198908-199008

sub48530-29098

main48530-29106iLX80198808-198912

sub48530-29107

main48530-29107iLX80198912-199003

sub48530-29117

main48530-29116iSX80,YX80198808-198912

sub48530-29117

main48530-29117iSX80,YX80198912-199008

sub48530-29118

main48530-29127iLX80199003-199004

sub48530-29128

main48530-29128iLX80,SX80,YX80199004-199501

sub48530-29485

main48530-29165iGX81..TWT198908-198912

sub48530-29166

main48530-29166iGX81..TWT198912-199008

sub48530-29225

main48530-29175iGX81..HTWC199008-199101

sub48530-29225

main48530-29185iGX81,JZX81,MX83..TWC199008-199302

sub48530-29186

main48530-29195iJZX81..TWT199008-199210

sub48530-29196

main48530-29225iGX81..HTWC199101-199512

sub48530-29226

main48530-29485iSX80,YX80199501-199512

sub48530-29486

48539BRACKET, ACTUATOR SUPPORT, RR

main48539-22020iGX81,JZX81,MX83..SPC,TWC198808-199302

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-29066iGX81..TWT198808-198908

sub48530-29166

main48530-29076iGX81..HTWC198808-198912

sub48530-29077

main48530-29077iGX81..HTWC198912-199008

sub48530-29087

main48530-29096iGX81..SPC,TWC198808-198908

sub48530-29097

main48530-29097iGX81,MX83..SPC,TWC198908-199008

sub48530-29098

main48530-29106iLX80198808-198912

sub48530-29107

main48530-29107iLX80198912-199003

sub48530-29117

main48530-29116iSX80,YX80198808-198912

sub48530-29117

main48530-29117iSX80,YX80198912-199008

sub48530-29118

main48530-29127iLX80199003-199004

sub48530-29128

main48530-29128iLX80199004-199501

sub48530-29485

main48530-29165iGX81..TWT198908-198912

sub48530-29166

main48530-29166iGX81..TWT198912-199008

sub48530-29225

main48530-29175iGX81..HTWC199008-199101

sub48530-29225

main48530-29185iGX81,JZX81,MX83..TWC199008-199302

sub48530-29186

main48530-29195iJZX81..TWT199008-199210

sub48530-29196

main48530-29225iGX81..HTWC199101-199512

sub48530-29226

main48530-29485iSX80,YX80199501-199512

sub48530-29486

48553ACAP, SHOCK ABSORBER

main48553-22020iGX81,JZX81,MX83..SPC,TWC198808-199302

main48553-22030iGX81,JZX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWT198808-199512

48710ARM ASSY, UPPER CONTROL

main48710-22230iLX80,SX80;YX80..KYO198808-199512

main48710-22240iGX81,JZX81,MX83198808-199512

main48710-22260iLX80..GL..DSL198808-199008

main48710-22260iLX80,YX80..GL..(DSL,LPG)199008-199512

48725BUSH, LOWER CONTROL ARM

main48725-22110iGX81198808-199512

48730ARM ASSY, LOWER CONTROL, LH

main48720-22210iLX80,SX80,YX80..KYO198808-199512

main48720-22230iLX80,SX80,YX80..GL,GR,STD198808-199512

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-22010iGX81..HTWC198808-199512

main48730-22020iGX81,JZX81,MX83..SPC,TWC198808-199302

main48730-22030iGX81,JZX81..TWT198908-199210

48750SUPPORT ASSY, REAR SUSPENSION

main48750-22030iLX80,SX80,YX80198808-199512

sub48750-22031

main48750-22040iLX80,SX80,YX80198808-199512

sub48750-22041

main48750-22050iGX81,JZX81,MX83198808-199512

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-22010iGX81198808-199512

main48770-22020iGX81,JZX81..TWT198908-199210

48780AROD ASSY, STRUT, REAR

main48780-22010iGX81198808-199512

main48780-22020iGX81,JZX81..TWT198908-199210

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-22010iGX81198808-199512

main48790-22020iGX81,JZX81..TWT198908-199210

48812BAR, STABILIZER, REAR

main48812-22190iGX81..SPC,TWC198808-198908

main48812-22200iGX81,JZX81,MX83..SPC,TWC198908-199302

main48812-22240iGX81..TWT198808-199008

main48812-22260iJZX81..TWT199008-199210

48815RBUSH, STABILIZER(FOR REAR)

main48815-12120iGX81..TWT198808-199008

main48815-22080iJZX81..TWT199008-199210

main48815-22090iGX81..SPC,TWC198808-198908

main48818-17070iGX81,JZX81,MX83..SPC,TWC198908-199302

48830LINK ASSY, REAR STABILIZER

main48830-30010iGX81,JZX81,MX83..SPC,TWC,TWT198808-199302

sub48830-30020

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-22040iGX81,JZX81,MX83..SPC,TWC,TWT198808-199302

9010514041

main90105-14041

9011914025

main90119-14025

9011914026

main90119-14026

9017014012

main90170-14012

9017908087

main90179-08087

9017910054

main90179-10054

9017912027

main90179-12027

9017914015

main90179-14015

9017914037

main90179-14037

9017914038

main90179-14038

9020114020

main90201-14020

9161661025

main91616-61025

9411040800

main94110-40800

9418711200

main94187-11200

36 parts on this diagram · 2 diagrams in section
