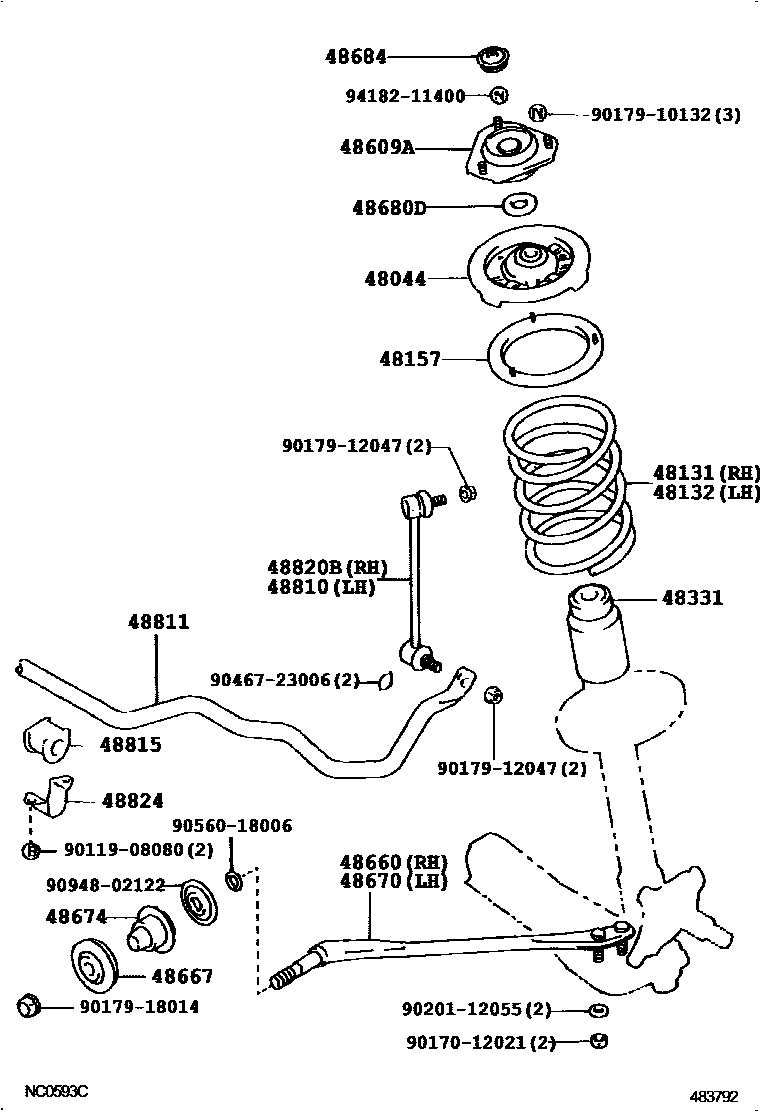

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1��������,���- ��� 0003 1 0004 1 0005 1

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-22050iGX81,SX80;YX80..KYO¥2,080198808-199512

main48044-22060iGX81,JZX81,MX83..SPC,TWC¥2,410198808-199302

main48044-22070iYX80..GL¥2,000198808-199512

main48044-22070iLX80..GL..DSL¥2,000198808-199304

48131SPRING, FRONT COIL, RH

main48131-2A160iYX80¥11,900198808-199008

main48131-2A430iLX80..DSL¥11,400198808-198909

main48131-2A480iGX81..TWT¥12,600198808-198908

main48131-2A490iGX81..TWT¥12,700198908-199008

main48131-2A550iGX81..HTWC¥10,800198808-199008

main48131-2A560iGX81..TWC¥11,900198808-199008

main48131-2A600iSX80¥10,100198808-199008

main48131-2A610iLX80..TD¥13,300198808-198909

main48131-2A610iLX80..DSL¥13,300198909-199008

main48131-2A630iJZX81,MX83..TWC¥12,400199008-199302

main48131-2A650iLX80..TD¥12,900198909-199008

main48131-2A660iGX81..TWC¥10,200199008-199302

main48131-2A670iSX80,YX80¥12,400199008-199512

main48131-2A680iGX81,MX83..GDG¥13,300198808-199008

main48131-2A690iLX80..DSL;LX80..KYO..TD¥10,500199008-199308

main48131-2A700iLX80..TD¥10,800199008-199011

main48131-2A730iGX81..HTWC¥9,200199008-199512

main48131-2A760iJZX81..TWT¥11,200199008-199210

main48131-2A830iLX80..(GL,GR)..TD¥11,200199011-199302

48132SPRING, FRONT COIL, LH

main48131-2A160iYX80¥11,900198808-199008

main48131-2A430iLX80..DSL¥11,400198808-198909

main48131-2A480iGX81..TWT¥12,600198808-198908

main48131-2A490iGX81..TWT¥12,700198908-199008

main48131-2A550iGX81..HTWC¥10,800198808-199008

main48131-2A560iGX81..TWC¥11,900198808-199008

main48131-2A600iSX80¥10,100198808-199008

main48131-2A610iLX80..TD¥13,300198808-198909

main48131-2A610iLX80..DSL¥13,300198909-199008

main48131-2A630iJZX81,MX83..TWC¥12,400199008-199302

main48131-2A650iLX80..TD¥12,900198909-199008

main48131-2A660iGX81..TWC¥10,200199008-199302

main48131-2A670iSX80,YX80¥12,400199008-199512

main48131-2A680iGX81,MX83..GDG¥13,300198808-199008

main48131-2A690iLX80..DSL¥10,500199008-199308

main48131-2A700iLX80..TD¥10,800199008-199011

main48131-2A730iGX81¥9,200199008-199512

main48131-2A750iJZX81..TWT¥10,800199008-199210

main48131-2A830iLX80..(GL,GR)..TD¥11,200199011-199302

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-22030iGX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWT¥1,880198808-198908

sub48157-22031¥1,560

main48157-22031iGX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWT¥1,560198908-199512

48331BUMPER, FRONT SPRING, NO.1

main48331-14020iYX80..KYO;GX81,LX80,SX80..CI,DSL,HTWC,TD,TWT¥1,000198808-199008

main48331-14050iGX81..TWT¥1,030198908-199210

main48331-22040iYX80..GL¥650198808-199008

main48331-22040iLX80,YX80..GL..(DSL,LPG)¥650199008-199512

main48331-22050iLX80..HT¥4,780199008-199512

main48331-24010iGX81,MX83..SPC,TWC¥3,520198808-199302

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-22070iGX81,SX80;YX80..KYO¥4,770198808-199512

main48609-22070iYX80..GL¥4,770198808-199008

main48609-22080iGX81,JZX81,MX83..SPC,TWC¥7,400198808-199302

main48609-22100iJZX81..TWT¥2,860199008-199210

main48609-22120iYX80..GL¥3,980199008-199512

main48609-22120iLX80..GL..DSL¥3,980199212-199304

48660BAR ASSY, STRUT, RH

main48660-22080iGX81,JZX81,LX80,MX83,SX80,YX80¥4,670198808-199512

48667RETAINER, STRUT BAR

main48667-22020iGX81,LX80,SX80,YX80¥820198808-199512

48670BAR ASSY, STRUT, LH

main48670-22080iGX81,LX80,SX80,YX80¥4,680198808-199512

48674CUSHION, STRUT BAR

main48674-22120iGX81,LX80,MX83¥1,470198808-199302

sub48674-22141¥1,480

main48674-22141iYX80..3FC,5F;YX80..4FC..GL;GX81,LX80,SX80¥1,480199302-199512

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iLX80,SX80¥260198808-199512

48684COVER, BEARING DUST

main48684-14020iYX80¥230198808-199512

48810LINK ASSY, FRONT STABILIZER, LH

main48810-22010iGX81,JZX81,LX80,MX83,SX80..(GD,GDG,GL,GR,GT,LG,STD)..(HTWC,TD,TWC,TWT)¥7,100198808-199511

sub48810-22011¥4,350

main48810-22011iGX81,SX80..GD,GL,GR¥4,350199511-199512

48811BAR, STABILIZER, FRONT

main48811-22340iGX81¥12,600198808-199302

main48811-22350iLX80..(GL,GR)..TD¥11,400198808-199302

main48811-22360iJZX81..TWC¥12,400199008-199302

main48811-22370iJZX81..TWT¥14,000199008-199210

main48811-22380iGX81,SX80..GD,GL,GR¥13,400199011-199512

main48811-22420iYX80;LX80,SX80..KYO¥14,800198808-199008

main48811-22420iLX80,YX80..DSL,LPG;LX80,SX80..KYO..(HTWC,TD)¥14,800199008-199512

main48811-22460iGX81..TWT¥13,900198812-199011

sub48811-22380¥13,400

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-22040iGX81..TWT¥820198812-199512

main48815-22050iJZX81..TWT¥820199008-199210

main48815-22060iLX80..GL..DSL¥800198808-199008

main48815-22060iLX80,YX80..GL..(DSL,LPG)¥800199008-199512

main48815-22120iGX81,MX83..HTWC,SPC,TWC¥820198808-199302

main48815-22130iLX80,SX80..GL,GR,STD¥820198808-199302

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-22010iGX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG,STD¥7,100198808-199511

sub48820-22011¥4,350

main48820-22011iGX81,SX80..GD,GL,GR¥4,350199511-199512

48824BRACKET, STABILIZER, FRONT

main48824-22060iGX81,LX80,SX80,YX80¥560198808-199512

9011908080

main90119-08080¥90

9017012021

main90170-12021¥110

9017910132

main90179-10132¥90

9017912047

main90179-12047¥110

9017918014

main90179-18014¥320

9020112055

main90201-12055¥220

9046723006

main90467-23006¥270

9056018006

main90560-18006¥230

9094802122

main90948-02122¥310

9418211400

main94182-11400¥310

27 parts on this diagram · 5 diagrams in section
