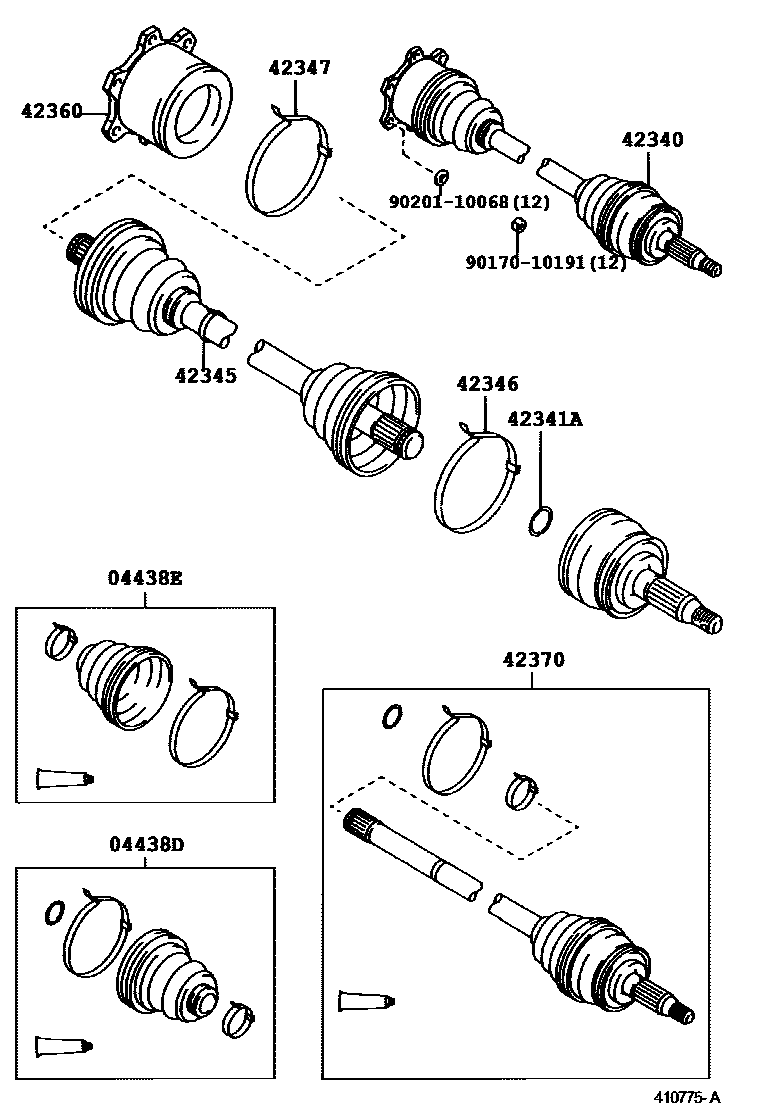

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1 0005 1

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-22050iGX81..4FC..(HTWC,TWC)¥6,700198808-199512

sub04437-28020¥6,700

main04437-22070iGX81..5F..TWC¥6,700198808-199302

main04437-22090iGX81..5F..HTWC¥6,700198808-199302

main04437-22110iJZX81..TWC¥6,700198808-199302

main04437-50011iJZX81..TWT¥6,700199008-199210

sub04437-50012¥6,600

04438EBOOT KIT, REAR DRIVE SHAFT OUTBOARD JOINT

main04437-22060iGX81..4FC..HTWC¥6,700198808-199512

main04437-22080iGX81..5F..TWC¥6,700198808-199302

main04437-22100iGX81..5F..HTWC¥6,700198808-199005

sub04437-22060¥6,700

main04437-30030iGX81,MX83..GDG,GT¥6,700198808-199302

42340SHAFT ASSY, REAR DRIVE

main42340-22040iJZX81..TWC¥59,100198808-199302

sub42340-22090¥59,100

sub42428-24010¥600

sub90179-26006¥370

main42340-22050iGX81..4FC..(HTWC,TWC)¥59,100198808-199302

sub42340-22051¥58,900

sub42428-24010¥600

sub90179-26006¥370

main42340-22051iGX81¥58,900199302-199512

main42340-22060iGX81..5F..HTWC¥59,100198808-199302

sub42340-22061¥58,900

sub42428-24010¥600

sub90179-26006¥370

main42340-22070iGX81..5F..TWC¥59,100198808-199302

sub42340-22071¥58,900

sub42428-24010¥600

sub90179-26006¥370

main42340-22080iJZX81..TWT¥59,100199008-199210

sub42340-22081¥59,100

sub42428-24010¥600

sub90179-26006¥370

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-23024iGX81..5F..HTWC¥170198808-199302

main90520-26004iGX81..5F..TWC¥330198808-199302

main90520-26028iGX81..4FC..(HTWC,TWC)¥110198808-199512

main90520-29028iJZX81,MX83..TWC¥100198808-199302

main90521-30001iGX81..4FC..(HTWC,TWC)¥180198808-199512

main90521-31002iGX81..5F..TWC¥180198808-199302

main90521-34005iGX81..SPC,TWT¥100198808-199302

42345CLAMP, REAR DRIVE SHAFT BOOT

main42345-14010iGX81..HTWC;GX81..4FC..TWC¥700198808-199307

main42345-14030iGX81..5F..TWC¥580198808-199302

main42345-16030iGX81¥660199307-199512

main90949-01221iGX81..SPC,TWT¥130198808-199302

42346CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-16060iGX81¥210199307-199512

main90949-01107iGX81..5F..TWC¥540198808-199302

main90949-01290iJZX81,MX83..TWC¥280198808-199302

main90949-01473iGX81..HTWC;GX81..4FC..TWC¥260198808-199307

42347CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14020iGX81..5F..HTWC¥630198808-199302

main42345-16090iGX81¥870199307-199512

main42345-30010iGX81..4FC..(HTWC,TWC)¥970198808-199307

main42346-22010iGX81..5F..TWC¥620198808-199302

main90949-01222iGX81..SPC,TWT¥170198808-199302

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-22030iGX81..SPC,TWT¥31,400198808-199302

sub42350-30020¥37,500

main42360-22040iGX81..5F..HTWC¥19,900198808-199302

main42360-30012iGX81..4FC..(HTWC,TWC)¥16,100198808-199512

sub42360-30040¥17,800

42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

main42370-19035iJZX81,MX83..TWC¥41,300198808-199302

sub42370-19036¥41,200

sub42428-24010¥600

sub90179-26006¥370

main42370-29035iGX81..5F..HTWC¥43,900198808-199302

sub42370-29036¥43,900

sub42428-24010¥600

sub90179-26006¥370

main42370-29045iGX81..5F..TWC¥44,800198808-199302

sub42370-29046¥44,800

sub42428-24010¥600

sub90179-26006¥370

main42370-29055iGX81..4FC¥41,600198808-199302

sub42370-29056¥41,600

sub42428-24010¥600

sub90179-26006¥370

main42370-29056iGX81¥41,600199302-199512

main42370-29085iJZX81..TWT¥48,900199008-199210

sub42370-29086¥48,900

sub42428-24010¥600

sub90179-26006¥370

9017010191

main90170-10191¥110

9020110068

main90201-10068¥90

11 parts on this diagram · 5 diagrams in section
