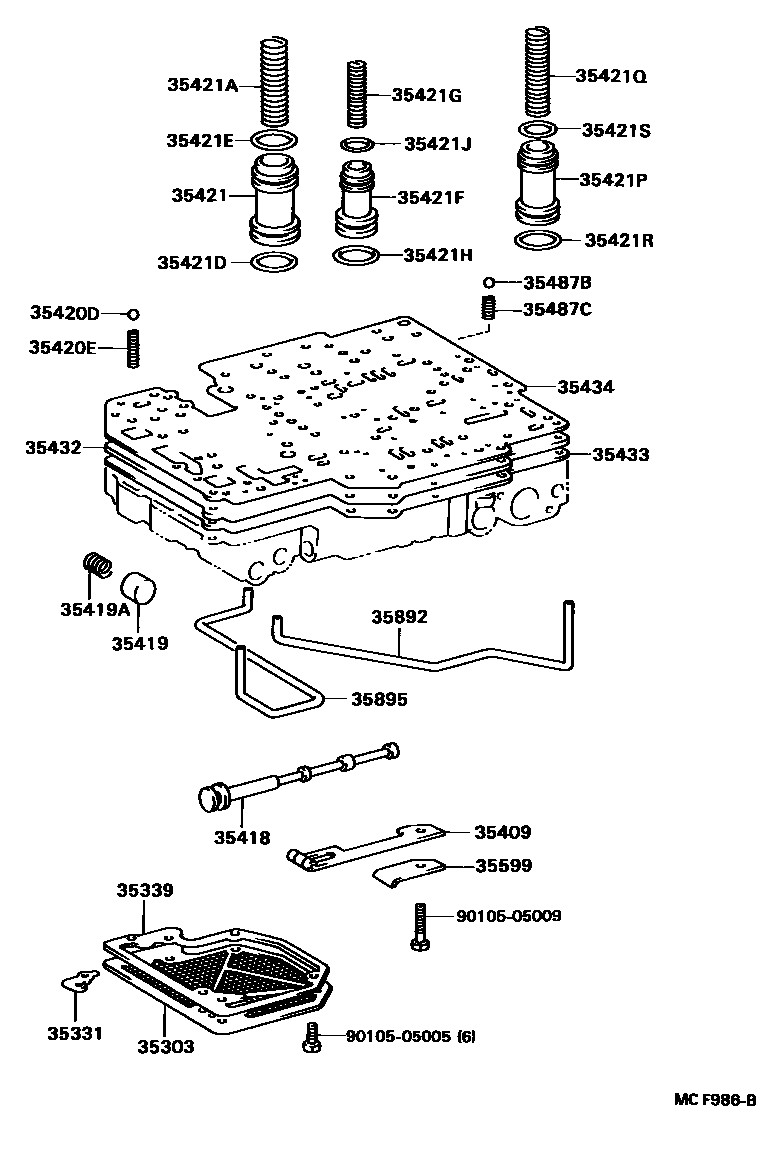

VALVE BODY & OIL STRAINER (ATM)

0001 1A42DL 0002 1A42DL 0003 1A42DL 0004 1A340E,A341E 0007 1A340E,A341E 0010 1A340E,A341E 0013 1A340E,A341E 0014 1A42D,A43D 0015 1A42D,A43D 0016 1A42D,A43D 0017 1A41 0018 1A41 0019 1A41

35303STRAINER SUB-ASSY, OIL

main35303-14010iGX81..4FC..GD..HTWC198908-199008

main35303-22022iYX80..3FC198808-199305

main35303-30050iLX80,SX80,YX80..4FC198808-199512

35331COVER, OIL STRAINER

main35331-14010iGX81..4FC..HTWC198808-198908

35339GASKET, OIL STRAINER

main35339-14010iGX81..4FC..HTWC198808-198908

main35339-28010iLX80,SX80,YX80..4FC199012-199512

main35339-28020iGX81..4FC..HTWC199012-199512

main35339-30050iLX80,SX80..4FC198808-199012

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-22020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

main35409-30010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198908

35418VALVE, MANUAL

main35418-30050iGX81,LX80,SX80,YX80..ATM..(GD,GL,GR,KYO)..(CI,HTWC,LPG,TD)198908-199008

main35418-30070iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

35419VALVE, CHECK, NO.1

main35419-12030iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

main35419-22010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198908

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-10079iGX81,JZX81..4FC..(SPC,TWC)198808-199302

main90501-11039iMX83;GX81,JZX81..4FC..TWT198808-199302

main90501-13003iGX81,LX80..4FC..(HTWC,TD)199008-199512

main90501-13674iYX80..3FC198808-199305

main90501-16083iSX80,YX80..4FC198808-199512

35420BODY ASSY, LOWER VALVE

main35420-14143iJZX81..TWC;GX81,MX83..GDG198809-199302

main35420-22160iYX80..3FC198808-199305

main35420-22221iGX81..4FC..TWC198808-198809

main35420-22231iGX81..4FC..TWT198809-199008

main35420-22240iGX81..4FC..HTWC198808-198908

main35420-22250iSX80..4FC198808-199512

main35420-22260iGX81..4FC..TWC198809-199302

main35420-24021iJZX81..TWT199008-199210

main35420-28070iYX80..4FC199302-199512

main35420-30111iLX80..4FC198808-199302

35420DBALL (FOR LOWER VALVE BODY)

main35495-22020×3iGX81..4FC..HTWC198808-198908

main35496-22030iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198908

35420ESPRING (FOR LOWER VALVE BODY)

main90501-04727iGX81,LX80,SX80,YX80..ATM..(GD,GL,GR,KYO)..(CI,HTWC,LPG,TD)198908-199008

35421PISTON, ACCUMULATOR, NO.1

main35421-24010iYX80..4FC199302-199512

main35421-30020iGX81,LX80,SX80,YX80..ATM..(HTWC,LPG,TD)199008-199302

35421ASPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

main90501-25011iGX81..4FC..HTWC198808-199512

main90501-26014iLX80..4FC198808-199302

main90501-26776iYX80..3FC198808-199305

main90501-32012iSX80..4FC198808-199512

35421DRING (FOR ACCUMULATOR PISTON NO.1)

main90301-29187iGX81,LX80,SX80,YX80..ATM..(HTWC,LPG,TD)199008-199512

35421ERING (FOR ACCUMULATOR PISTON NO.1)

main90301-23194iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198908

35421FPISTON, ACCUMULATOR, NO.2

main35421-22020iYX80..3FC198808-199305

main35423-30010iLX80..4FC198808-199302

main35441-30010iGX81,SX80,YX80..4FC..(HTWC,LPG)199008-199512

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90501-15003iLX80..4FC198808-199302

main90501-20038iLX80..4FC198808-199302

main90501-20676iYX80..3FC198808-199305

main90501-25002iYX80..4FC199302-199512

main90501-25010iSX80..4FC198808-199512

main90501-27016iGX81..4FC..HTWC198808-199512

35421HRING (FOR ACCUMULATOR PISTON NO.2)

main90301-26190iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198908

35421JRING (FOR ACCUMULATOR PISTON NO.2)

main90301-18186iGX81,LX80,SX80,YX80..ATM..(GD,GL,GR,KYO)..(CI,HTWC,LPG,TD)198908-199008

sub90301-18010

35421PPISTON, ACCUMULATOR, NO.3

main35421-22030iGX81,LX80,SX80,YX80..ATM..(GD,GL,GR,KYO)..(CI,HTWC,LPG,TD)198908-199008

35421QSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)

main90501-20016iYX80..3FC;GX81,LX80..4FC..(HTWC,TD)198808-199512

main90501-20063iSX80,YX80..4FC198808-199512

35421RRING (FOR ACCUMULATOR PISTON NO.3)

main90301-26190iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198908

35421SRING (FOR ACCUMULATOR PISTON NO.3)

main90301-22185iGX81,LX80,SX80,YX80..ATM..(GD,GL,GR,KYO)..(CI,HTWC,LPG,TD)198908-199008

35432PLATE, VALVE BODY, NO.1

main35432-10020iYX80..3FC198808-199302

main35432-22071iLX80,YX80..4FC198808-199512

main35432-22141iMX83198908-199302

main35432-22161iGX81..4FC..TWC198808-199302

main35432-22171iGX81..SPC198808-199008

main35432-22181iGX81..4FC..TWT198808-199008

main35432-22190iSX80..4FC..(GL,GR)199302-199305

main35432-22200iGX81..4FC..GD..HTWC198908-199008

main35432-22210iJZX81..TWC199008-199302

main35432-22240iYX80..3FC199302-199305

main35432-24041iJZX81..TWT199008-199210

35433GASKET, VALVE BODY, NO.1

main35433-14012iGX81..4FC..GD..HTWC198908-199008

main35433-22020iYX80..3FC198808-199305

main35433-30052iLX80,SX80,YX80..4FC198808-199512

main35433-30064iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

35434GASKET, VALVE BODY, NO.2

main35434-14012iGX81..4FC..HTWC199008-199512

main35434-22020iYX80..3FC198808-199305

main35434-30052iLX80,SX80,YX80..4FC198808-199512

main35434-30076iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

35487BBALL, CHECK, NO.4

main35487-30010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-198908

35487CSPRING, COMPRESSION (FOR CHECK BALL)

main90504-05006iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-198908

35599COVER, MANUAL DETENT SPRING

main35599-22020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

main35599-30010iGX81,LX80,SX80,YX80..ATM..(HTWC,LPG,TD)199008-199512

35892TUBE, OVERDRIVE BRAKE

main35892-14010iGX81..4FC..HTWC198808-198908

sub35892-28020

main35892-30020iLX80,SX80,YX80..4FC198808-199512

sub35892-28010

35895TUBE, FRONT CLUTCH APPLY

main35895-14011iGX81..4FC..HTWC198808-198908

main35895-30021iLX80,SX80,YX80..4FC198808-199512

9010505005

main90105-05005

9010505009

main90105-05009

32 parts on this diagram · 13 diagrams in section
