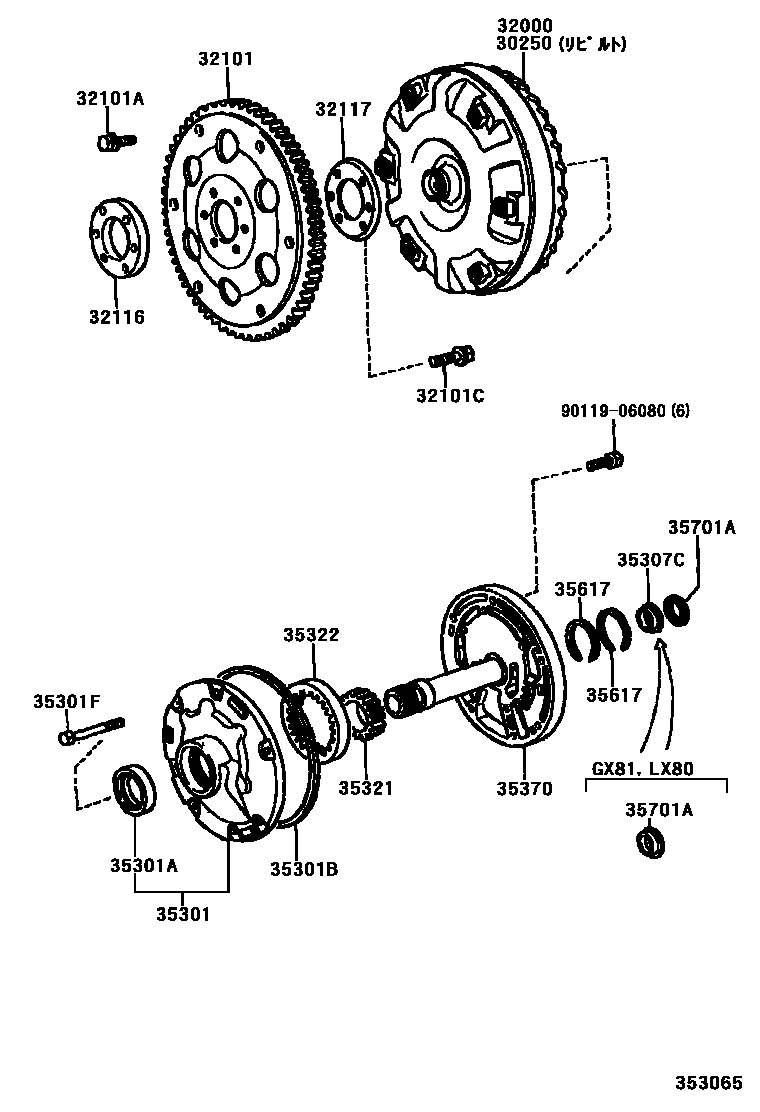

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A41,A42D,A42DL,A43D 0002 1A340E,A341E

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-22021iYX80..3FC198808-199305

main30250-22070iGX81..4FC..TWT198808-199008

main30250-22080iGX81..4FC..TWC198808-199302

main30250-22090iGX81..4FC..HTWC198808-199512

main30250-22120iLX80..KYO..TD198808-199302

main30250-22140iSX80,YX80..4FC198808-199512

main30250-22150iMX83198908-199302

main30250-22160iJZX81..TWC199008-199302

main30250-22170iJZX81..TWT199008-199210

main30250-35070iLX80..4FC..(GL,GR)198808-199302

32000CONVERTER ASSY, TORQUE

main32000-22021iYX80..3FC198808-199305

main32000-22070iGX81..4FC..TWT198808-199008

main32000-22080iGX81..4FC..TWC198808-199302

main32000-22090iGX81..4FC..HTWC198808-199512

main32000-22110iGX81..SPC198808-199008

sub32000-30200

main32000-22120iLX80..KYO..TD198808-199302

main32000-22140iSX80,YX80..4FC198808-199512

main32000-22150iMX83198908-199302

main32000-22160iJZX81..TWC199008-199302

main32000-22170iJZX81..TWT199008-199210

main32000-35070iLX80..4FC..(GL,GR)198808-199302

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14051iMX83198908-198912

main32101-14052iMX83198912-199302

main32101-22040iSX80..4FC198808-198905

main32101-22041iSX80..4FC198905-199302

main32101-22050iJZX81199008-199302

main32101-24012iGX81..4FC198808-199302

main32101-28010iYX80..3FC198808-199305

main32101-30070iYX80..ATM199302-199512

sub32101-43010

sub32116-43010

sub32117-43010

main32101-35020iLX80..4FC198808-199302

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iYX80..3FC198808-199305

main90119-08498×5iYX80..3FC198808-199305

main90119-09009×5iGX81,JZX81,LX80,MX83,SX80..4FC199009-199302

main90119-09010iGX81,SX80,YX80..4FC199305-199512

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046×6iGX81,YX80..4FC199305-199512

main90105-10294×8iJZX81199008-199302

main90105-12014×8iLX80..4FC198808-199302

main90109-10037×6iMX83198908-199302

main90109-10054×8iSX80..4FC198905-199302

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGX81199302-199512

main32116-14020iSX80..4FC198808-198905

main32116-22020iJZX81199008-199302

main32116-28010iYX80..4FC199305-199512

main32116-30011iMX83198908-199302

main32116-32011iSX80..4FC199302-199512

main32116-35010iLX80..4FC198808-199302

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGX81..4FC198808-199302

main32117-14030iSX80..4FC198808-198905

main32117-20030iYX80..4FC199305-199512

main32117-22020iJZX81199008-199302

main32117-30011iMX83198908-199302

main32117-32010iSX80..4FC198905-199302

main32117-35010iLX80..4FC198808-199302

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGX81,YX80..4FC..(HTWC,LPG)198808-199512

main35301-30030iLX80..KYO..TD;SX80,YX80..ATM198912-199008

main35301-30040iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198912

main90311-38029iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198912

main90301-99033iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×7iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

main90105-08128×7iYX80..3FC198808-199305

sub91511-K0840

main90105-08137×7iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-198912

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iYX80..3FC198808-199305

main35789-30020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

sub35789-30340

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12090iGX81,JZX81,MX83..4FC..TWC199210-199302

main35321-14010iGX81199302-199512

main35321-22010iYX80..3FC;SX80..4FC..(GL,GR)199302-199305

main35321-22020iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35321-22030iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35321-22040iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35321-22050iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35321-22060iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35321-22070iLX80,SX80..4FC199008-199512

main35321-22080iLX80,SX80..4FC199008-199512

main35321-22090iLX80,SX80..4FC199008-199512

main35321-22100iLX80,SX80..4FC199008-199512

main35321-22110iLX80,SX80..4FC199008-199512

main35321-32050iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12080iGX81,JZX81,MX83..4FC..TWC199210-199302

main35322-14010iGX81..4FC..HTWC198808-199008

main35322-22010iYX80..3FC199008-199302

main35322-22020iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35322-22030iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35322-22040iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35322-22050iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35322-22060iGX81,YX80..4FC..(HTWC,LPG)199008-199512

main35322-22070iLX80,SX80..4FC199008-199512

main35322-22080iLX80,SX80..4FC199008-199512

main35322-22090iLX80,SX80..4FC199008-199512

main35322-22100iLX80,SX80..4FC199008-199512

main35322-22110iLX80,SX80..4FC199008-199512

main35322-32050iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35370SHAFT ASSY, STATOR

main35370-14012iGX81..4FC..HTWC198808-199512

main35370-22040iYX80..3FC198808-199305

main35370-22050iLX80..KYO..TD;SX80,YX80..4FC198808-199512

main35370-30023iLX80..4FC..(GL,GR)199008-199302

main35370-30031iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-198912

main35617-30020×2iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199302

main35617-32010×2iYX80..3FC198808-198912

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iYX80..3FC198808-199305

main90374-25003iGX81,LX80,SX80,YX80..4FC..(CI,HTWC,LPG,TD)198808-199512

9011906080

main90119-06080

18 parts on this diagram · 2 diagrams in section
