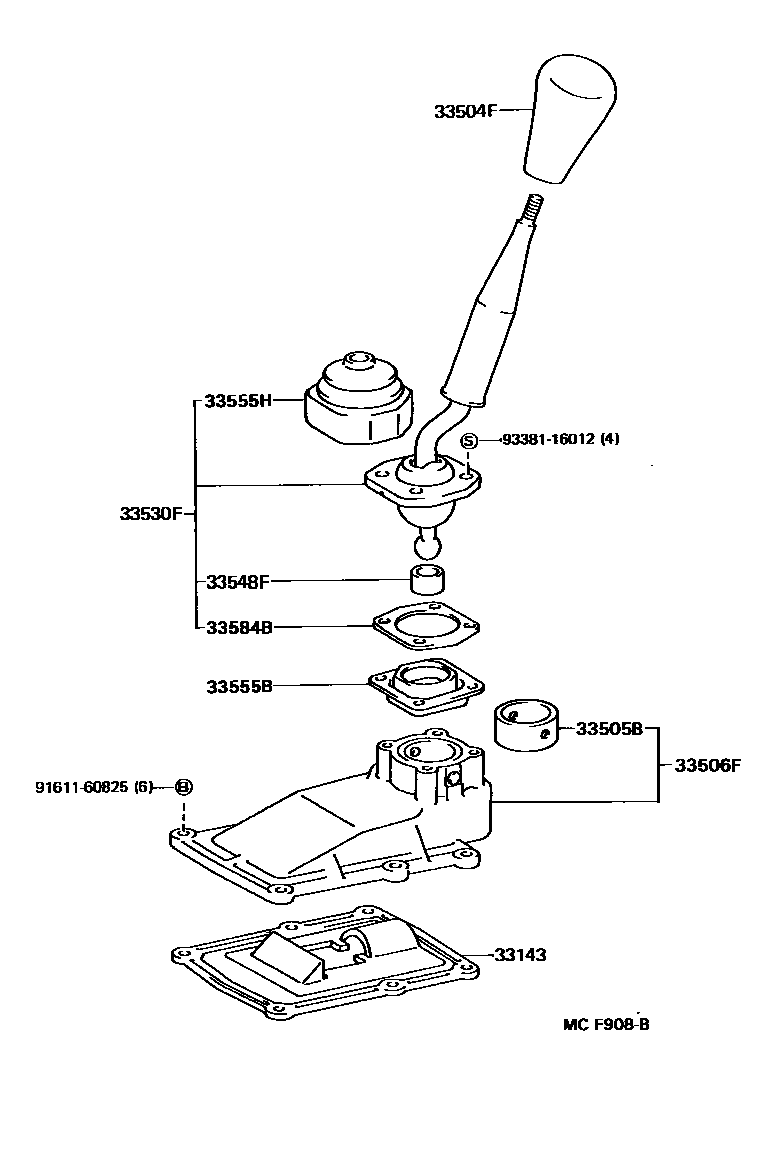

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0005 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iGX81,LX80,SX80,YX80..5F198808-199110

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B0iSX80,YX80..5F199302-199512

MEDIUM GRAY,TRIM1#

sub33504-12180

main33504-24010-57iGX81,LX80,SX80,YX80..5F..(CI,DSL,HTWC,LPG,TD)198808-199008

DARK BLUE,TRIM8#

sub33504-24010

main33504-24010-58iLX80,SX80..5F..GR;GX81,LX80,YX80..5F..(GD,GL,LG)..(DSL,HTWC,LPG)198808-199302

NEW MAROON,TRIM3#

sub33504-24010

main33504-24010-59iGX81,LX80,SX80,YX80..5F..(GD,GL,GR,LG)..(CI,DSL,HTWC,LPG,TD)198808-199302

SABLE,TRIM4#

sub33504-24010

main33504-24010-B0iGX81,LX80,SX80,YX80..5F..(DSL,HTWC,LPG,TD)199008-199308

MEDIUM GRAY,TRIM1#

sub33504-24010

main33504-24020-26iGX81..5F..(TWC,TWT)198808-199302

SABLE,TRIM4#

sub33504-24020

sub33504-22140

main33504-24020-34iGX81..5F..(TWC,TWT)198808-199008

DARK BLUE,TRIM8#

sub33504-24020

sub33504-22140

main33504-24020-52iGX81..5F..(TWC,TWT)198808-199302

NEW MAROON,TRIM3#

sub33504-24020

sub33504-22140

main33504-24020-53iGX81..5F..TWC199008-199302

MEDIUM GRAY,TRIM1#

sub33504-24020

sub33504-22140

main33542-22160-02iJZX81,YX80..ATM..(GD,GL);GX81,LX80,SX80..4FC..(GD,GDG,GR,GT,LG)198808-199302

NEW MAROON,TRIM3#

sub33542-22160

main33542-22160-03iSX80,YX80..ATM..KYO199008-199305

MEDIUM GRAY,TRIM1#

sub33542-22160

main33542-22160-04iGX81,LX80,SX80,YX80..ATM198808-199008

DARK BLUE,TRIM8#

sub33542-22160

main33542-22160-06iJZX81..GD;GX81,LX80,SX80,YX80..ATM..(GD,GDG,GL,GR,GT,LG)198808-199302

SABLE,TRIM4#

sub33542-22160

main33542-22180-02iJZX81,MX83..GDG,GT198908-199302

NEW MAROON,TRIM3#

sub33542-22180

main33542-22180-04iMX83198908-199008

DARK BLUE,TRIM8#

sub33542-22180

main33542-22180-06iJZX81,MX83..GDG,GT198908-199302

SABLE,TRIM4#

sub33542-22180

main33542-22180-06iJZX81199205-199210

sub33542-22180

main33542-22180-13iJZX81,MX83..GDG,GT199008-199302

MEDIUM GRAY,TRIM1#

sub33542-22180

main33542-30240-B1iGX81,SX80,YX80..4FC..(GD,GL,GR)199302-199512

MEDIUM GRAY,TRIM1#

sub33542-30240

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-22010iGX81,LX80,SX80,YX80..5F198808-199512

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-12030iLX80..5F198808-199308

main33570-22080iGX81,SX80,YX80..5F198808-199512

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-22180iGX81..5F198808-199111

sub33530-22181

main33530-22181iGX81..5F199111-199302

main33530-22250iSX80,YX80..5F198808-199111

sub33530-22251

main33530-22251iSX80,YX80..5F199111-199512

main33530-22260iLX80..5F198808-199111

sub33530-22261

main33530-22261iLX80..5F199111-199308

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iGX81,LX80,SX80,YX80..5F198808-199512

main33548-35010iGX81,LX80,SX80,YX80..5F199109-199203

sub33548-31010

33555BOOT, SHIFT LEVER

main33555-22080iGX81,JZX81,LX80,MX83,SX80,YX80..ATM198808-199512

33555BBOOT, SHIFT & SELECT LEVER

main33555-22090iGX81,YX80..5F;SX80..SED..5F198808-199512

33555HBOOT, SHIFT & SELECT LEVER, NO.4

main33555-22050iGX81,LX80,SX80,YX80..5F198808-199512

33584BGASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iGX81,LX80,SX80,YX80..5F198808-199512

9161160825

main91611-60825

9338116012

main93381-16012

12 parts on this diagram · 4 diagrams in section
