RADIATOR & WATER OUTLET

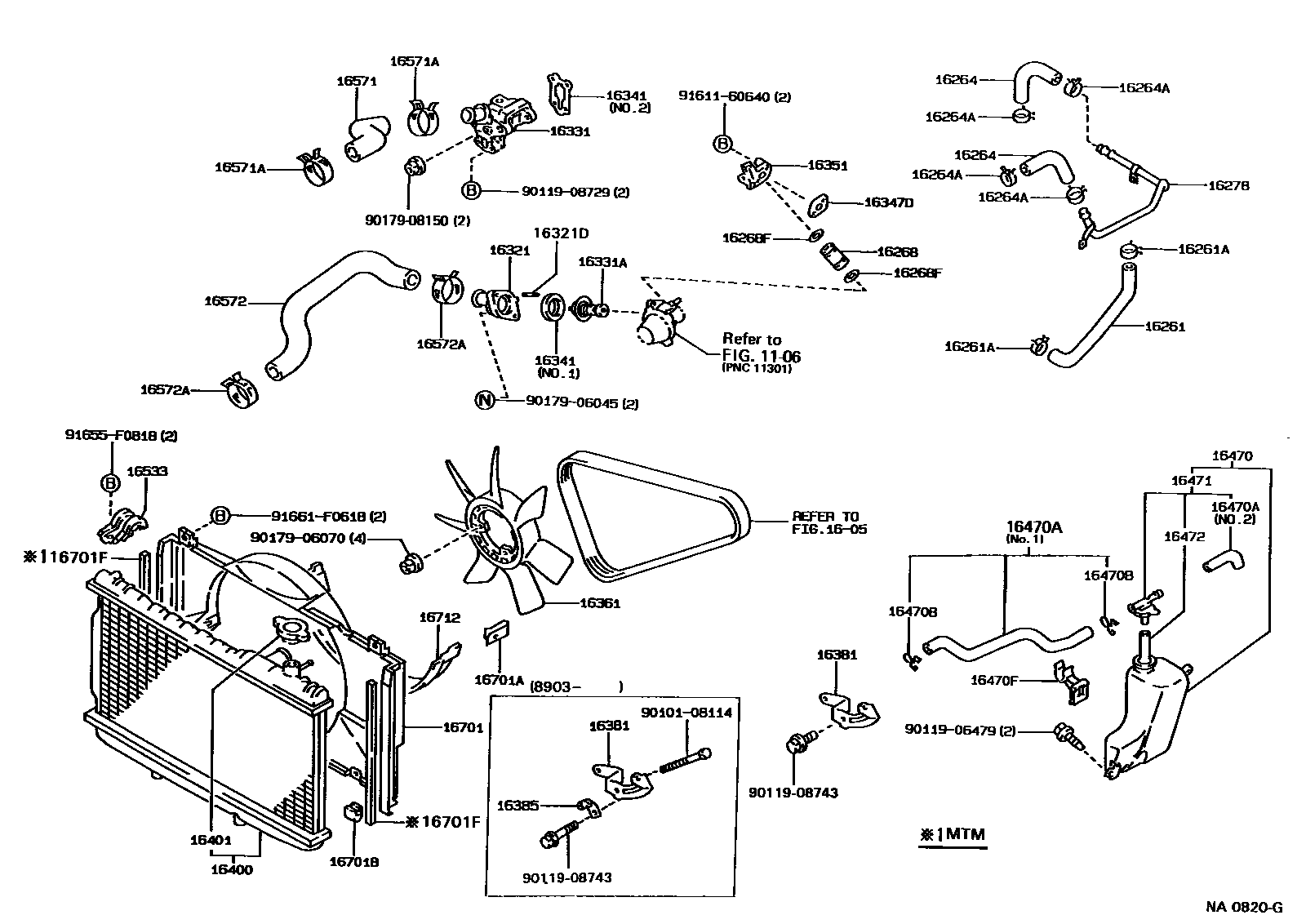

Parts diagram
1106
1605
16261HOSE, WATER BY-PASS
main16261-46020i199008-199302
main16261-54080i198808-199308
main16261-70050i198808-199008
main16261-70051i199008-199512
main16261-72050i198808-198908
main16261-72051i198908-199512
main16261-74030i199210-199305
main16261-74060i198808-199008
main16261-88300i198808-199302
main16261-88400i199008-199210
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
main90467-13001×2i199309-199512
sub96135-51300
main90467-13050×2i199008-199302
sub96135-51300
main90467-13051×2i198808-199309
sub96135-51300
main90467-15004×2i198808-198909
main90467-15022×2i198909-199308
main90467-16004×2i198808-199205
sub96134-51500
main90467-20005×2i199008-199210
sub96134-41900
main90467-26003×2i198808-199302
sub90467-26007
main90467-34004×2i199210-199305
16264HOSE, WATER BY-PASS, NO.2
main16264-46010i199008-199302
sub16264-46040
main16264-54070i198808-199308
main16264-70060×2i198808-199512
main16264-73050i198808-199512
main16264-74070i198808-199008
main16264-74090i199008-199210
main16264-88400i199008-199210
main90910-05168i198808-199008
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
main90467-13001×2i198808-199512
sub96135-51300
main90467-13050×2i199008-199302
sub96135-51300
main90467-13051×4i198808-199309
sub96135-51300
main90467-15004×2i198808-198909
main90467-15016×2i198808-199008
sub96135-51400
main90467-15022×2i198909-199308
main90467-20005×2i199008-199210
sub96134-41900
main90467-22003×2i199210-199305
sub90467-21010
16268PIPE, WATER BY-PASS, NO.1
main16268-42050i198908-199005
main16268-42051i199005-199302
main16268-46010i199008-199105
main16268-46011i199105-199302
main16268-70030i198808-199104
main16268-70031i199104-199512
main16268-70040i198808-199008
sub16268-70041
main16268-73140i198808-198908
main16268-73141i198908-199512
main16268-74090i198808-199008
main16268-74130i199210-199305
main16268-88301i198808-199006
main16268-88302i199006-199302
main16268-88400i199008-199210
16268FRING, O(FOR WATER BY-PASS PIPE)
main90301-17009×2i199303-199512
main96761-24017i198808-199210
main96761-24018×2i198808-199303
main96761-24022×2i199008-199302
main96761-24023×2i199008-199210
16278PIPE, WATER BY-PASS, NO.2
main16278-46010i199008-199302
main16278-70050i198808-199008
main16278-70060i198808-199009
main16278-70061i199009-199512
main16278-74010i198808-199008
main16278-74030i199008-199210
main16278-88301i198808-199008
main16278-88302i199009-199302
*54
main16278-88340i198808-199008
sub16278-88341
main16278-88400i199008-199210
sub16278-88401
sub92122-60816
16321INLET, WATER
main16321-46010i199008-199108
main16321-46040×2i199108-199302
main16321-70011i198808-199008
main16321-70030i198808-199512
main16321-71010i198808-199512
main16321-74020i199210-199305
main16321-88301i198808-199302
main16321-88340i198808-199008
main16321-88360i198808-199008
main16321-88400i199008-199108
main16321-88401i199108-199210
16321DBOLT, STUD(FOR WATER INLET)
main16193-63010×2i198808-199512
16331OUTLET, WATER
main16304-70011i198808-199008
main16304-74090i198808-199008
main16304-74100i198808-199008
main16304-74160i199008-199210
main16304-88400i199008-199210
main16331-42021i198908-199302
main16331-46020i199008-199302
main16331-54090i198808-198908
main16331-54140i199009-199103
sub16331-54210
main16331-54150i199103-199302
main16331-70060i198808-199008
main16331-70070i199008-199512
main16331-71010i198808-199512
main16331-88300i198808-199302
main16331-88341i198809-199008
16331ATHERMOSTAT
main90916-03046i198808-199106
main90916-03060i199106-199210
sub90916-03090
main90916-03063i198808-199302
main90916-03069i198808-199201
main90916-03072i199008-199303
main90916-03078i198908-199302
main90916-03081i198808-199512
main90916-03092i199008-199108
main90916-03093i199108-199109
main90916-03099i199303-199308
16341GASKET, WATER OUTLET
main16341-35010i198808-199512
main16341-54030i198808-199110
main16341-54040i199110-199308
main16341-63010i198808-198907
main16341-63011i199305-199309
main16341-70020i198808-199008
main16341-70030i198808-199009
main16341-70031i199009-199512
sub16341-70040
main16341-71010i198808-198912
main16341-71011i198912-199512
main16341-74020i199309-199512
16347DGASKET, WATER BY-PASS
main16347-70020i198808-199108
main16347-70021i199108-199512
16351OUTLET, WATER BY-PASS
main16351-46010i199008-199302
sub16351-46050
main16351-70010i198808-199512
sub16351-70011
16361FAN
main16361-38010i198808-199512
main16361-41090i198908-199302
main16361-46030i199008-199302
main16361-63040i198808-199107
main16361-64010i198808-199107
main16361-70030i198808-199308
main16361-70040i198808-199512
main16361-70050i198808-199008
main16361-88300i198808-199302
main16911-46010i199008-199210
16381BAR, FAN BELT ADJUSTING
main16381-42021i198908-199302
main16381-54070i198808-199008
sub16381-54071
main16381-70042i198808-199008
main16381-70050i198808-199512
main16381-73011i198808-199512
main16381-88301i198808-199302
main16381-88340i198808-199008
16385SLIDER, FAN BELT ADJUSTING
main16385-70020i198903-199512
main16385-71010i198808-199512
16400RADIATOR ASSY
main16400-42220i198908-199302
main16400-46040i199008-199302
main16400-46050i199008-199210
main16400-54650i198808-199409
main16400-54660i198808-199302
main16400-70300i198808-199302
main16400-70320i198808-199008
main16400-70341i198808-199008
main16400-70360i199111-199512
main16400-70480i199111-199302
main16400-73360i198808-199105
main16400-73361i199105-199305
main16400-73400i199302-199512
main16400-73410i199302-199512
main16400-73420i199305-199512
main16400-74410i198808-199302
main16400-74420i198808-199512
main16400-74720i199008-199512
16401CAP SUB-ASSY, RADIATOR
main16401-63010i198808-199302
main16401-72090i199302-199512
sub16401-20353
16470TANK ASSY, RADIATOR RESERVE
main16470-46010i199008-199409
main16470-70110i198808-199008
sub16470-54320
main16470-72010i199304-199512
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
main16567-46010i199008-199512
main16567-54080i198808-199409
main16567-70020i198808-199008
main85338-46010i199008-199512
main85338-72010i199210-199302
main85338-95A01i198808-199008
main90445-12078i198808-199008
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
main90467-11085×2i198808-199302
16470FCLAMP, RADIATOR RESERVE TANK HOSE
main90929-01233i198808-199512
16471CAP SUB-ASSY, RESERVE TANK
main16405-46010i199008-199409
main16405-70080i198808-199008
main16405-72010i199302-199304
16472HOSE, BREATHER
main85338-22030i198808-199302
main85338-46010i199008-199512
main85338-95A01i199008-199308
main90445-12078i199302-199512
16533SUPPORT, RADIATOR, UPPER
main16505-46010×2i199008-199302
main16505-70020×2i199302-199409
main16505-73020×2i199302-199512
16571HOSE, RADIATOR, INLET
main16571-42030i198908-199302
main16571-46010i199008-199107
main16571-46020i199108-199210
main16571-54280i198808-199409
main16571-70190i198808-199512
main16571-70200i198808-199008
main16571-70210i198808-199302
main16571-70220i198808-199008
main16571-72060i198808-199302
main16571-73110i199302-199512
main16571-74110i198808-199008
main16571-74170i199008-199512
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
main90467-34001i198808-199302
sub90467-33003
main90467-34004×2i198808-199512
main90467-37002×2i199107-199108
sub90467-37005
main90467-37006×2i199302-199512
sub90467-37005
16572HOSE, RADIATOR, OUTLET
main16572-42040i198908-199302
main16572-46010i199008-199107
main16572-46020i199008-199107
main16572-46110i199108-199302
main16572-46120i199108-199210
main16572-54280i198808-199409
main16572-70160i198808-199512
main16572-70170i198808-199302
main16572-70180i198808-199008
main16572-72060i198808-199302
main16572-73090i199302-199512
main16572-74090i198808-199008
main16572-74160i199008-199512
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
main90467-34001i198808-199302
sub90467-33003
main90467-34004×2i198808-199512
main90467-37002i199108-199409
sub90467-37005
main90467-37006×2i199302-199512
sub90467-37005
main90467-41001i198808-199008
main90467-41004i199008-199409
sub90466-41003
main90467-41007i199108-199302
INLET SIDE
sub90467-41002
16701SHROUD SUB-ASSY, FAN
main16701-54170i198808-199409
main16701-70080i198808-199008
main16711-42070i198908-199302
main16711-70100i198808-199302
main16711-70110i198808-199512
main16711-72060i199302-199305
main16711-73110i199302-199512
main16711-74180i198808-199107
main16711-74190i198808-199107
main16912-46010i199008-199210
16701ACLIP(FOR FAN SHROUD)
main90468-06013×2i198808-199409
main90468-06070×2i198808-199512
16701BCUSHION, FAN SHROUD
main90541-11002×2i198808-199409
main90541-14002i198808-199409
16701FSEAL(FOR FAN SHROUD)
main16832-41010×2i198808-199302
main16832-70010×2i199302-199512
16712SHROUD, FAN, NO.2
main16702-42020i198908-199302
main16702-54030i198808-199409
main16712-46010i199008-199302
main16712-70070i198808-199302
main16712-70080i198808-199512
main16712-73080i199302-199305
main16712-73090i199302-199512
9010108114
main90101-08114
9011906479
main90119-06479
9011908729
main90119-08729
9011908743
main90119-08743
9017906045
main90179-06045
9017906070
main90179-06070
9017908150
main90179-08150
9161160640
main91611-60640
91655F0818
main91655-F0818
91661F0618
main91661-F0618
