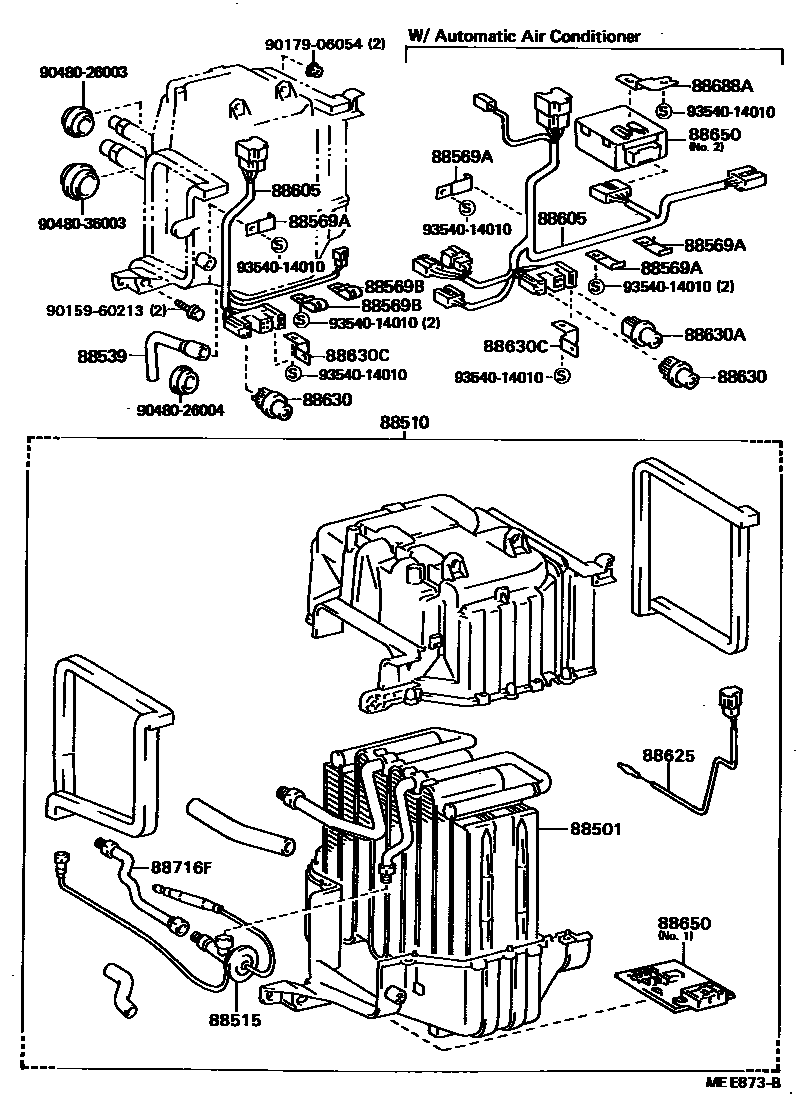

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22150iGX71,MX71..GD,GT198408-198601

sub88501-22151

main88501-22151iGX71..GD,GT198408-198608

main88501-22152iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198608-198808

88510UNIT ASSY, COOLER

main88510-22230iGX71,MX71..GD,GT198408-198608

main88510-22231iGX71..GD,GT198608-198808

main88510-22310iLX7#..(DX,GL)..DSL198408-198608

sub88510-22311

main88510-22311iGX7#..LG,LS198608-198808

main88510-22330iSX70,YX76198408-198608

sub88510-22331

main88510-22331iSX70,YX76198608-198808

main88510-22340iLX70..TD198408-198608

sub88510-22341

main88510-22341iLX70..TD198608-198808

main88510-22360iLX70..KYO198408-198608

sub88510-22361

main88510-22361iLX70..KYO198608-198808

main88510-22380iYX70198408-198608

sub88510-22381

main88510-22381iYX72198608-198808

88515VALVE, COOLER EXPANSION

main88515-16030iYX70,72198408-198808

sub88515-16031

main88515-22070iLX7#..DX,GL,GR198408-198808

sub88515-22071

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iGX7#,LX7#,MX71,SX70,YX7#198408-198808

88569ACLAMP, NO.1(FOR COOLER WIRING HARNESS)

main88567-22230iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198808

W/*AAC

sub88569-22230

88569BCLAMP, NO.2(FOR COOLER WIRING HARNESS)

main88569-22150iLX70,YX70,72..KYO198408-198808

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-22300iGX71,MX71..GD,GT198408-198608

main88605-22301iGX71..GD,GT198608-198808

main88605-22320iGX7#..LG,LS198408-198808

main88605-22370iYX7#198408-198808

main88605-22390iLX70,SX70..CBR,TD198408-198808

main88605-22400iGX7#..LG198408-198808

W/*AAC

main88605-22410iLX70,SX70..GR198408-198808

W/*AAC

main88605-22430iLX70..KYO198408-198808

88625THERMISTOR, COOLER, NO.1

main88625-90A00iYX70,72198408-198808

sub88625-12070

88630RELAY ASSY, COOLER

main90987-02004iLX70..KYO198408-198808

main90987-03001iSX70;GX7#,LX7#,MX71,YX76..DX,GD,GL,GR,GT,LG,LS198408-198808

88630ARELAY ASSY, COOLER

main90987-02004iGX7#,LX70,SX70..GR,LG198408-198808

W/*AAC

88630CBRACKET, COOLER RELAY

main88688-22230iGX7#,LX7#,SX70,YX76..DX,GL,GR,KYO,LG,LS,STD198408-198808

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-22130iGX71,MX71..GD,GT198408-198808

main88650-22140iSX70,YX76198408-198808

NO.1

main88650-22160iLX70..KYO198408-198808

NO.1

main88650-22170iYX70,72198408-198808

NO.1

main88650-22180iLX70..TD198408-198808

NO.1

main88650-22190iGX7#,LX70,SX70..GR,LG198408-198808

NO.2

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-22250iGX7#,LX70,SX70..GR,LG198408-198808

W/*AAC

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-22680iGX7#,LX7#,SX70,YX7#198408-198608

main88716-22681iGX7#,LX7#,SX70,YX7#198608-198808

9015960213

main90159-60213

9017906054

main90179-06054

9048026003

main90480-26003

9048026004

main90480-26004

9048036003

main90480-36003

9354014010

main93540-14010

20 parts on this diagram · 2 diagrams in section
