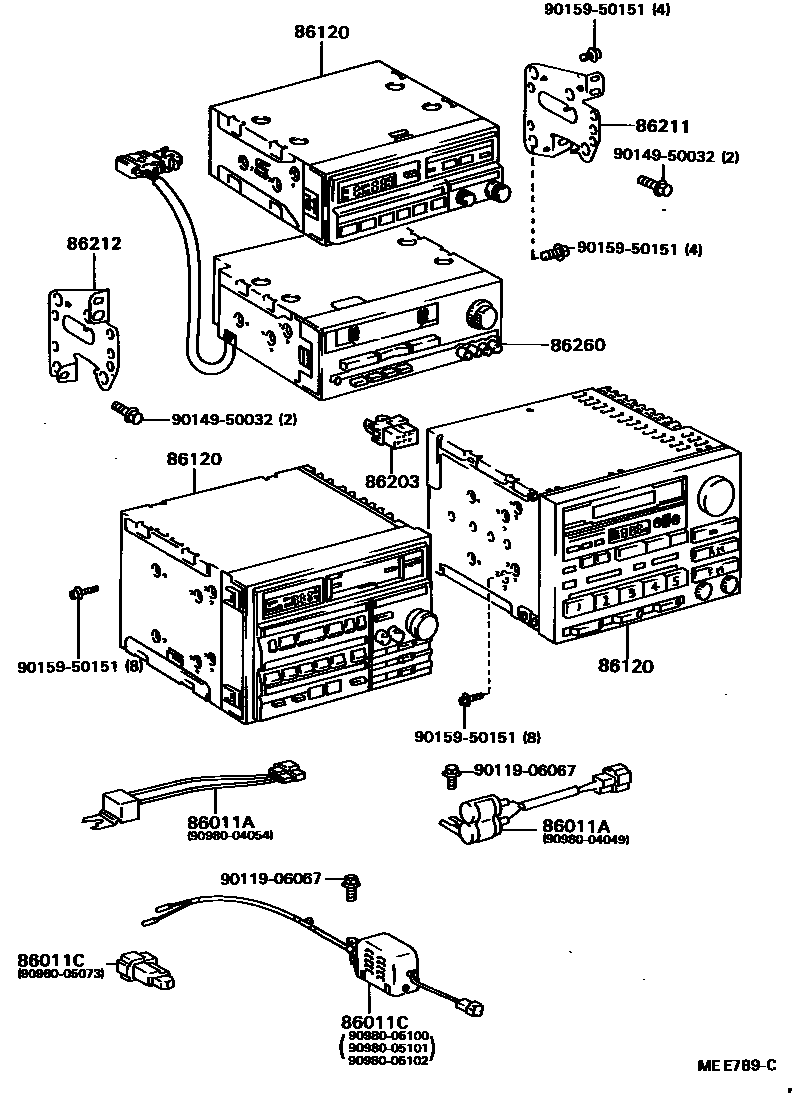

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04049iGX71,LX70,MX71,SX70,YX70198408-198808

DEFOGGER

main90980-04054iGX7#,MX71198408-198808

IG COIL

86011CFILTER, NOISE

main90980-05073iGX7#,LX7#,MX71,SX70,YX7#198408-198808

FR

main90980-05100iGX71,LX70,MX71,SX70,YX70..SED198408-198808

RR

main90980-05101iGX71,MX71,SX70..HT198408-198808

RR

main90980-05102iLX70,SX70,YX72..KYO198608-198808

RR

86120RECEIVER ASSY, RADIO

main86120-16530iLX70..GL..DSL198608-198808

sub86120-35080

sub86120-35110

sub86120-37010

main86120-17010iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198408-198608

AM

main86120-22490iGX7#,LX70,SX70,YX70..GL,GR,LG,LS198408-198608

*19

sub86120-22640

sub86203-20170

main86120-22500iGX71,MX71..SED..GD198408-198608

*20

main86120-22510iGX71,MX71..HT..(GD,GT)198408-198608

*20

main86120-22640iGX7#,LX70,YX7#..GL,GR,LG,LS198608-198808

*19

main86120-22660iGX71..SED..GD198608-198808

*20

main86120-22670iGX71..SED..GD198608-198707

*20,W/CD PLAYER

sub86120-22671

main86120-22671iGX71..SED..GD198707-198808

*20,W/CD PLAYER

main86120-22690iGX71,SX70..HT..(GD,GR,GT)198608-198808

*20

main86120-22691iSX70..HT198712-198802

main86120-22700iGX71..HT..(GD,GT)198608-198808

*20,W/CD PLAYER

86203WIRE, RADIO

main86203-22030iSX70..HT198703-198808

*20

86211BRACKET, RADIO, NO.1

main86211-22130iGX7#,LX7#,MX71,SX70,YX7#198408-198808

86212BRACKET, RADIO, NO.2

main86212-22110iGX7#,LX7#,MX71,SX70,YX7#198408-198808

86260TAPE PLAYER ASSY

main86260-19155iGX71,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198608-198808

main86260-19165iGX71,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198608-198808

W/EQUARIZER

main86260-22190iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

W/*19

main86260-29075iGX71,LX7#,SX70,YX7#..DX,GL,LS198408-198608

W/AM RADIO

9011906067

main90119-06067

9014950032

main90149-50032

9015950151

main90159-50151

9098004049

main90980-04049

9098005073

main90980-05073

9098005100

main90980-05100

9098005101

main90980-05101

9098005102

main90980-05102

15 parts on this diagram · 2 diagrams in section
