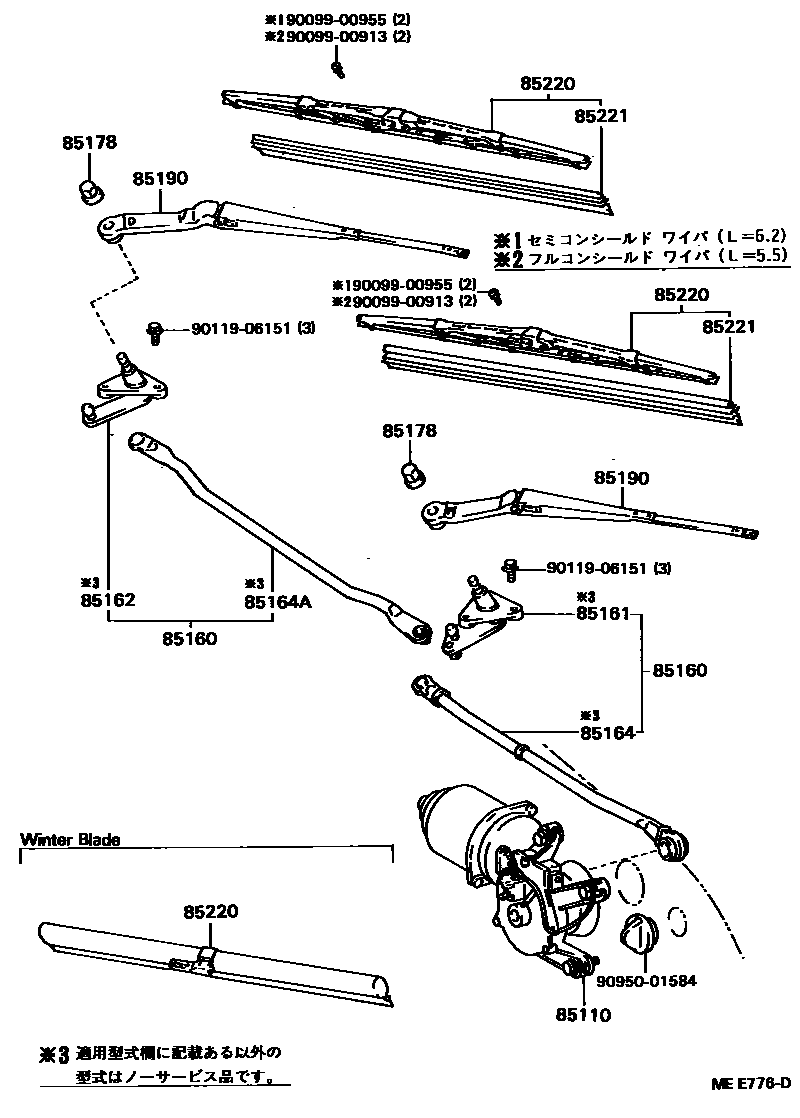

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22280iLX76,YX7#198408-198611

SEMI CONCEALED

sub85110-22281

main85110-22280iLX70..GL..DSL198408-198611

PRIVATE TAXI SPEC

sub85110-22281

main85110-22281iLX70..GL..DSL198611-198808

SEMI CONCEALED

sub85110-91602

main85110-22281iLX70..GL..DSL198611-198808

PRIVATE TAXI SPEC

sub85110-91602

main85110-22281iSX70..4FC..GL198701-198808

SEMI CONCEALED,*30

sub85110-91602

main85110-22290iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198408-198512

FULL CONCEALED

sub85110-22291

main85110-22291iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198512-198605

FULL CONCEALED

sub85110-22292

main85110-22291iGX71..4FC..TWC198608-198611

FULL CONCEALED,W/ESC

sub85110-22292

main85110-22292iGX71..4FC..TWC198611-198808

FULL CONCEALED,W/ESC

main85110-22400iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198605-198611

FULL CONCEALED

sub85110-22401

main85110-22401iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198611-198808

FULL CONCEALED

sub85110-22402

85160LINK ASSY, WINDSHIELD WIPER

main85160-22210iLX70..DSL;SX70..KYO,STD198408-198808

LH,SEMI CONCEALED

main85160-22210iSX70..4FC..GL198701-198808

LH,SEMI CONCEALED,*30

main85160-22220iLX70..DSL;SX70..KYO,STD198408-198808

RH,SEMI,CONCEALED

main85160-22220iSX70..4FC..GL198701-198808

RH,SEMI CONCEALED,*30

main85160-22220iLX76,YX7#198408-198808

RH,SEMI CONCEALED

main85160-22240iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GL,GR,LG,LS)198408-198512

LH,FULL CONCEALED

sub85150-23030

main85160-22241iGX7#,LX70,SX70..(SED,WG)..(GD,GL,GR,LG,LS)198512-198808

LH,FULL CONCEALED

main85160-22250iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198408-198808

RH,FULL CONCEALED

sub85160-22220

main85160-22260iGX71,MX71..HT198408-198512

LH

main85160-22261iGX71,SX70..HT198512-198808

LH

sub85150-23030

main85160-22360iGX7#,LX70,SX70..(SED,WG)..(GD,GL,GR,LG,LS)198512-198608

LH,FULL CONCEALED,COLD SPEC

sub85160-22361

main85160-22361iGX7#,LX70,SX70..(SED,WG)..(GD,GL,GR,LG,LS)198608-198808

LH,FULL CONCEALED,COLD SPEC

main85160-22370iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198512-198608

RH,FULL CONCEALED,COLD SPEC

sub85150-23040

main85160-22371iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198608-198808

RH,FULL CONCEALED,COLD SPEC

sub85150-23040

main85160-22380iGX71..HT198512-198608

LH,COLD SPEC

sub85160-22381

main85160-22381iGX71,SX70..HT198608-198808

LH,COLD SPEC

85161PIVOT, WINDSHIELD WIPER LINK, NO.1

main85161-22210iSX70..4FC..GL198701-198808

*30

main85161-22210iLX70..DSL;SX70..KYO,STD198408-198808

85162PIVOT, WINDSHIELD WIPER LINK, NO.2

main85162-22220iLX76,YX7#198408-198808

main85162-22220iSX70..4FC..GL198701-198808

*30

85164ROD, WINDSHIELD WIPER LINK, NO.1

main85164-22210iLX70..DSL;SX70..KYO,STD198408-198808

main85164-22210iSX70..4FC..GL198701-198808

*30

85164AROD, WINDSHIELD WIPER LINK, NO.2

main85165-22220iLX70..DSL;SX70..KYO,STD198408-198808

main85165-22220iSX70..4FC..GL198701-198808

*30

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iGX7#,LX7#,MX71,SX70,YX7#198408-198506

main90176-08033iGX7#,LX7#,MX71,SX70,YX7#198506-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-22480iLX76,YX7#198408-198608

RH,SEMI CONCEALED

sub85190-22481

main85190-22480iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198408-198605

RH,SEMI CON. W/WINTER BLADE

sub85190-22481

main85190-22481iLX70..DSL;SX70..KYO,STD198608-198808

RH,SEMI,CONCEALED

sub85190-22491

main85190-22481iSX70..4FC..GL198701-198808

RH,SEMI CONCEALED,*30

sub85190-22491

main85190-22481iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198605-198808

RH,SEMI CON. W/WINTER BLADE

sub85190-22491

main85190-22481iLX76,YX7#198608-198808

RH,SEMI CONCEALED

sub85190-22491

main85190-22500iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GL,GR,LG,LS)198408-198608

RH,FULL CONCEALED

sub85190-22501

main85190-22501iGX7#,LX70,SX70..(SED,WG)..(GD,GL,GR,LG,LS)198608-198808

RH,FULL CONCEALED

sub85190-22511

main85190-22510iGX71,MX71..HT198408-198608

RH,FULL CONCEALED

sub85190-22511

main85190-22511iGX71,SX70..HT198608-198808

RH,FULL CONCEALED

sub85211-23040

main85190-22630iGX7#,LX70,SX70..(SED,WG)..(GD,GL,GR,LG,LS)198512-198808

RH,FULL CONCEALED,COLD SPEC

sub85190-22640

main85190-22640iGX71,SX70..HT198512-198808

RH,FULL CONCEALED,COLD SPEC

main85210-22170iLX76,YX7#198408-198608

LH,SEMI CONCEALED

sub85210-22171

main85210-22170iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198408-198605

LH,SEMI CON. W/WINTER BLADE

sub85210-22171

main85210-22171iLX70..DSL;SX70..KYO,STD198608-198808

LH,SEMI CONCEALED

main85210-22171iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198605-198808

LH,SEMI CON. W/WINTER BLADE

main85210-22171iSX70..4FC..GL198701-198808

LH,SEMI CONCEALED,*30

main85210-22180iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198408-198608

LH,FULL CONCEALED

sub85210-22181

main85210-22181iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198608-198808

LH,FULL CONCEALED

sub85221-23050

main85210-22250iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198512-198608

LH,FULL CONCEALED,COLD SPEC

sub85210-22251

main85210-22251iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198608-198808

LH,FULL CONCEALED,COLD SPEC

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12620iGX7#,LX7#,SX70,YX72,76198605-198808

LH,WINTER BLADE

sub85291-12010

main85220-12620iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198512-198605

LH,FULL CON.WINTER,COLD SPEC

sub85291-12010

main85220-16320iLX70..DSL;SX70..KYO,STD198408-198411

LH,SEMI CONCEALED

sub85220-16321

main85220-16330iGX7#,LX70,MX71,SX70..GD,GL,GR,LG,LS198408-198507

LH,FULL CONCEALED

sub85222-24050

main85220-16460iLX76,YX7#198411-198507

LH,SEMI CONCEALED

sub85220-16461

main85220-16500iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198507-198608

LH,FULL CONCEALED

sub85220-16330

main85220-16520iLX76,YX7#198507-198608

LH,SEMI CONCEALED

sub85220-16461

main85220-16580iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198512-198605

RH,FULL CON.WINTER,COLD SPEC

sub85291-16010

main85220-16580iGX7#,LX7#,SX70,YX72,76198605-198808

RH,WINTER BLADE

sub85291-16010

main85220-16650iLX76,YX7#198608-198808

LH,SEMI CONCEALED

sub85220-1A080

main85220-16650iSX70..4FC..GL198701-198808

LH,SEMI CONCEALED,*30

sub85220-1A080

main85220-16660iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198608-198808

LH,FULL CONCEALED

sub85222-24050

main85220-30360iGX7#,LX7#,MX71,SX70,YX7#198408-198605

RH,WINTER BLADE

sub85220-16580

main85220-30370iGX7#,LX7#,MX71,SX70,YX7#198408-198605

LH,WINTER BLADE

sub85220-12620

main85220-32310iGX7#,LX70,MX71,SX70..GD,GL,GR,LG,LS198411-198507

RH,FULL CONCEALED

sub85220-32311

main85220-32310iGX71,LX70,MX71,SX70,YX70198408-198411

RH

sub85220-32311

main85220-32400iLX70..DSL;SX70..KYO,STD198411-198507

RH,SEMI CONCEALED

sub85212-23040

main85220-32440iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198507-198608

RH,FULL CONCEALED

sub85220-32310

main85220-32470iLX76,YX7#198507-198608

RH,SEMI CONCEALED

sub85220-32400

main85220-32610iLX76,YX7#198608-198808

RH,SEMI CONCEALED

sub85220-3A080

main85220-32610iSX70..4FC..GL198701-198808

RH,SEMI CONCEALED,*30

sub85220-3A080

main85220-32620iGX7#,LX70,SX70..GD,GL,GR,GT,LG,LS198608-198808

RH,FULL CONCEALED

sub85220-32311

85221BLADE, WINDSHIELD WIPER

main85221-22110iGX7#,LX7#,SX70,YX7#198608-198808

RH

sub85221-30130

main85221-22120iGX7#,LX7#,SX70,YX7#198608-198808

LH

sub85221-30120

main85221-30110iGX7#,LX7#,MX71,SX70,YX7#198408-198507

RH

sub85221-30130

main85221-30120iGX7#,LX7#,MX71,SX70,YX7#198408-198507

LH

sub85221-40040

main85221-30130iGX7#,LX7#,MX71,SX70,YX7#198507-198608

RH

sub85214-24H90

main85221-40040iGX7#,LX7#,MX71,SX70,YX7#198507-198608

LH

sub85214-24H90

9009900913

main90099-00913

9009900955

main90099-00955

9011906151

main90119-06151

9095001584

main90950-01584

14 parts on this diagram · 1 diagram in section
