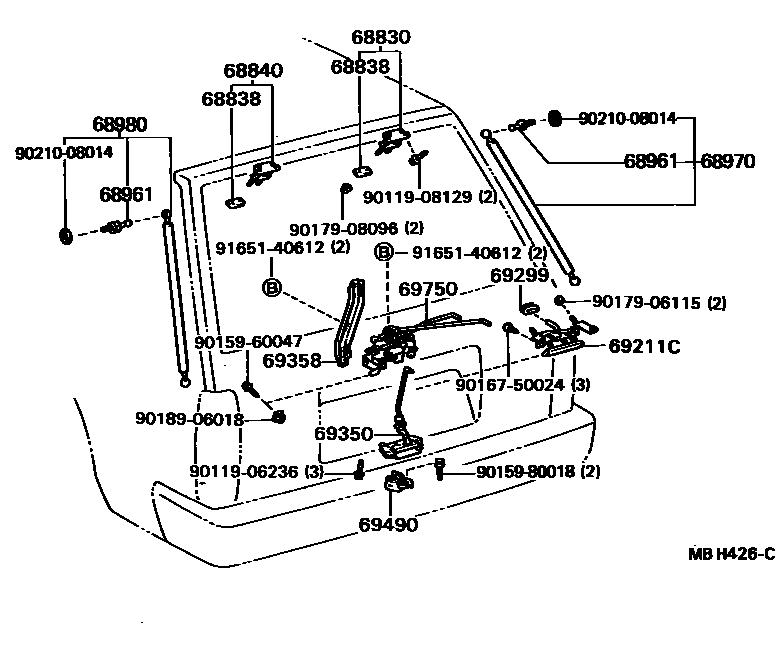

BACK DOOR LOCK & HANDLE
68961BOLT, BACK DOOR STAY
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER
68980STAY ASSY, BACK DOOR
W/RR WIPER
69211CHANDLE, BACK DOOR OUTSIDE
69299GROMMET, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
69358PROTECTOR, BACK DOOR LOCK
69490STRIKER ASSY, BACK DOOR LOCK
69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL
9011906236
main90119-06236
9011908129
main90119-08129
9015960047
main90159-60047
9015980018
main90159-80018
9016750024
main90167-50024
9017906115
main90179-06115
9017908096
main90179-08096
9018906018
main90189-06018
9021008014
main90210-08014
9165140612
main91651-40612
22 parts on this diagram · 1 diagram in section
