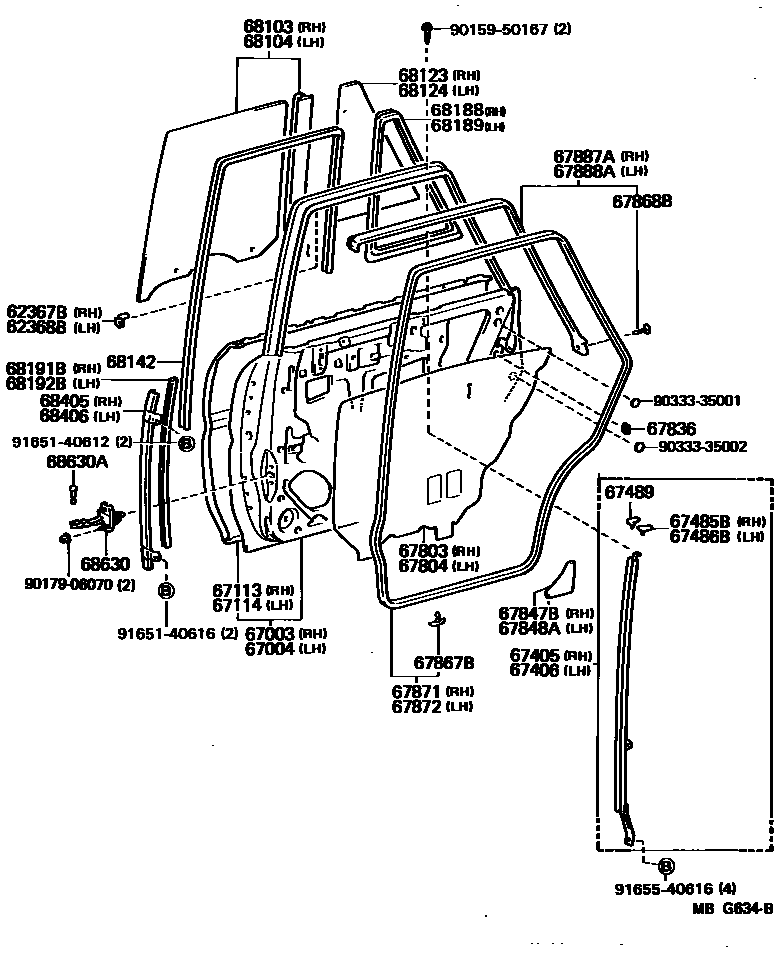

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

62367BCLIP, DOOR WINDOW GLASS, REAR RH

main62367-22040iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198408-198808

main62367-22050iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198411-198808

62368BCLIP, DOOR WINDOW GLASS, REAR LH

main62368-22050iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198408-198808

main62368-22060iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198411-198808

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22200iGX71,LX70,SX70,YX72..GL,KYO,LS,STD198408-198808

sub67003-22230

sub90950-01573

main67003-22230iGX71,LX70,SX70..SED..(GD,GR,LG)198608-198808

main67003-22310iGX71,MX71,SX70..HT198408-198808

main67003-23020iGX70,LX76,YX76198411-198808

sub67003-23050

sub90950-01573

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22210iGX71,LX70,MX71,SX70,YX70..SED198408-198808

sub67004-22240

sub90950-01573

main67004-22240iGX71,LX70,SX70..SED..(GD,GR,LG)198608-198808

main67004-22320iGX71,MX71,SX70..HT198408-198808

main67004-23020iGX70,LX76,YX76198411-198808

sub67004-23050

sub90950-01573

67113PANEL, REAR DOOR, OUTER RH

main67113-22100iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198506

sub67113-22110

main67113-22110iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198506-198808

main67113-22130iGX71,MX71..HT198408-198506

sub67113-22140

main67113-22140iGX71,MX71,SX70..HT198506-198808

67114PANEL, REAR DOOR, OUTER LH

main67114-22100iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198506

sub67114-22110

main67114-22110iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198506-198808

main67114-22130iGX71,MX71..HT198408-198506

sub67114-22140

main67114-22140iGX71,MX71,SX70..HT198506-198808

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-22050iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main67407-23010iGX70,LX76,YX76198411-198808

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-22050iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main67408-23010iGX70,LX76,YX76198411-198808

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

67489SEAL, REAR DOOR DIVISION BAR

main67487-22030iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

RH

main67488-22030iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

LH

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-22110iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

sub67841-22150

main67841-22130iGX71,MX71,SX70..HT198408-198808

sub67841-22160

main67841-22150iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

COLD SPEC

main67841-22160iGX71,MX71,SX70..HT198408-198808

COLD SPEC

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-22150iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

COLD SPEC

main67841-22160iGX71,MX71,SX70..HT198408-198808

COLD SPEC

main67842-22020iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

sub67841-22150

main67842-22040iGX71,MX71,SX70..HT198408-198808

sub67841-22160

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

COLD SPEC

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

COLD SPEC

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

RH

main67868-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

LH

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67869-30020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22100iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main67871-22120iGX71,MX71..HT198408-198601

PLANT(M21,M22)

sub67871-22190

main67871-22130iGX71,MX71..HT198408-198601

COLD SPEC,PLANT(M21,M22)

sub67871-22190

main67871-22180iGX71,MX71,SX70..HT198507-198808

PLANT(A21-A26)

main67871-22190iGX71,SX70..HT198601-198808

PLANT(M21,M22)

main67871-23010iGX70,LX76,YX76198411-198808

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22100iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main67872-22120iGX71,MX71..HT198408-198601

PLANT(M21,M22)

sub67872-22190

main67872-22130iGX71,MX71..HT198408-198601

COLD SPEC,PLANT(M21,M22)

sub67872-22190

main67872-22180iGX71,MX71,SX70..HT198507-198808

PLANT(A21-A26)

main67872-22190iGX71,SX70..HT198601-198808

PLANT(M21,M22)

main67872-23010iGX70,LX76,YX76198411-198808

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-22010iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main67887-23010iGX70,LX76,YX76198411-198808

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-22010iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main67888-23010iGX70,LX76,YX76198411-198808

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-22050iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main68103-22060iGX71,MX71..SED..GD198408-198808

main68103-22060iLX70,SX70..GR198510-198608

main68103-23010iGX70,LX76,YX76198411-198808

main68113-22190iGX71,MX71..HT198408-198808

main68113-22200iGX71,SX70..HT198408-198808

main68113-22210iGX71..HT..EFI198705-198808

*TT,T=5.0,GRAY

sub68113-22200

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-22050iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main68104-22060iGX71,LX70,SX70..SED..(GD,GR,LG)198408-198808

main68104-22060iLX70,SX70..GR198510-198608

main68104-23010iGX70,LX76,YX76198411-198808

main68114-22190iGX71,MX71..HT198408-198808

main68114-22200iGX71,MX71..HT..(GD,GT)198408-198808

main68114-22210iGX71..HT..EFI198705-198808

*TT,T=5.0,GRAY

68123GLASS, REAR DOOR WINDOW, RH

main68123-22140iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main68123-22150iLX70,SX70..GR198510-198608

main68123-22150iGX71,LX70,SX70..SED..(GD,GR,LG)198408-198808

main68123-23010iGX70,LX76,YX76198411-198808

68124GLASS, REAR DOOR WINDOW, LH

main68124-22130iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main68124-22140iGX71,LX70,SX70..SED..(GD,GR,LG)198408-198808

main68124-22140iLX70,SX70..GR198510-198608

main68124-23010iGX70,LX76,YX76198411-198808

68142RUN, REAR DOOR GLASS

main68142-22050iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

RH

main68142-22060iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198502

RH,COLD,SPEC

sub68142-22050

main68152-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

LH

main68152-22020iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198502

LH,COLD,SPEC

sub68152-22010

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-22060iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main68188-23010iGX70,LX76,YX76198411-198808

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-22050iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main68189-23010iGX70,LX76,YX76198411-198808

68191BRUN, REAR DOOR GLASS, NO.2 RH

main68191-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68192BRUN, REAR DOOR GLASS, NO.2 LH

main68192-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68405GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-22060iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

main67405-22080iGX71,MX71,SX70..HT198408-198808

68406GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-22060iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

main67406-22080iGX71,MX71,SX70..HT198408-198808

68630CHECK ASSY, REAR DOOR

main68630-22040iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

main68630-22050iGX71,MX71,SX70..HT198408-198808

68630APIN(FOR REAR DOOR CHECK)

main68617-22020iGX7#,LX7#,MX71,SX70,YX7#198507-198808

main68617-90A00iGX7#,LX7#,MX71,SX70,YX7#198408-198507

9015950167

main90159-50167

9017906070

main90179-06070

9033335001

main90333-35001

9033335002

main90333-35002

9165140612

main91651-40612

9165140616

main91651-40616

9165540616

main91655-40616

42 parts on this diagram · 3 diagrams in section
