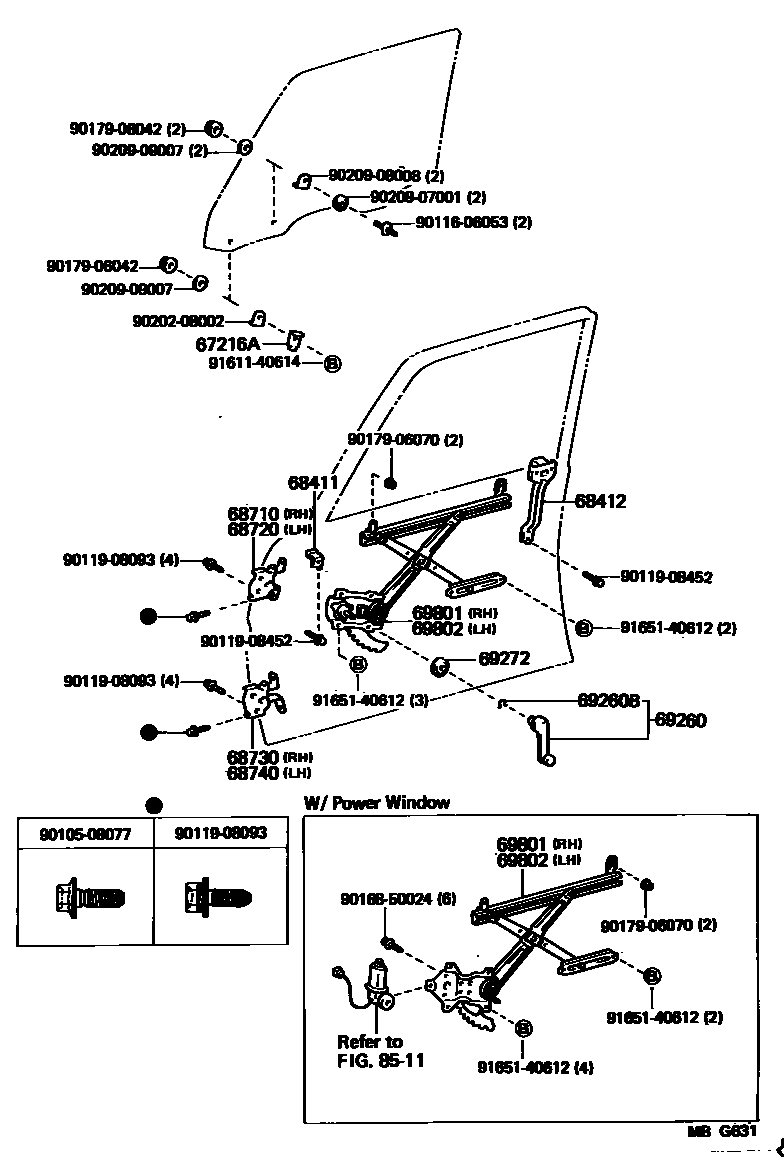

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1

67216ASTOPPER, FRONT DOOR GLASS, UPPER NO.2

main67216-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68411STOPPER, DOOR WINDOW GLASS, UPPER FRONT

main67211-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

main67211-30040iGX71,MX71,SX70..HT198408-198808

68412STOPPER, DOOR WINDOW GLASS, UPPER REAR

main67205-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198503

main67205-22020iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198503-198808

RH

main67206-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198503-198808

LH

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20060iGX71,MX71,SX70..HT198408-198808

main68710-22050iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20050iGX71,MX71,SX70..HT198408-198808

main68720-22040iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-24010iGX71,MX71,SX70..HT198408-198808

sub68730-60020

main68730-32010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

sub68730-30090

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-24010iGX71,MX71,SX70..HT198408-198808

sub68740-60020

main68740-32010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-02iLX70,SX70..GR198408-198608

MAROON,MAROON,TRIM3#

sub69260-22030

main69260-22030-03iGX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

sub69260-22030

main69260-22030-05iGX71,LX7#,SX70,YX7#..DX,GL,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub69260-22030

main69260-22030-14iGX70198608-198808

BLUE,DARK BLUE,TRIM8#

sub69260-22030

main69260-22030-15iGX70198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub69260-22030

main69260-22030-22iGX70198608-198808

MAROON,MAROON,TRIM3#

sub69260-22030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198408-198808

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iGX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD198408-198808

NATURAL,NATURAL WHITE

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22080iGX7#,MX71..(SED,WG)..(GD,LG)198408-198808

W/POWER WINDOW

main69801-22100iGX71,MX71,SX70..HT198408-198808

main69810-22130iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198408-198808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22080iGX7#,MX71..(SED,WG)..(GD,LG)198408-198808

W/POWER WINDOW

main69802-22100iGX71,MX71,SX70..HT198408-198808

main69820-22120iGX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD198408-198808

8511

9010508077

main90105-08077

9011606053

main90116-06053

9011908093

main90119-08093

9011908452

main90119-08452

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020208002

main90202-08002

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9161140614

main91611-40614

9165140612

main91651-40612

26 parts on this diagram · 3 diagrams in section
