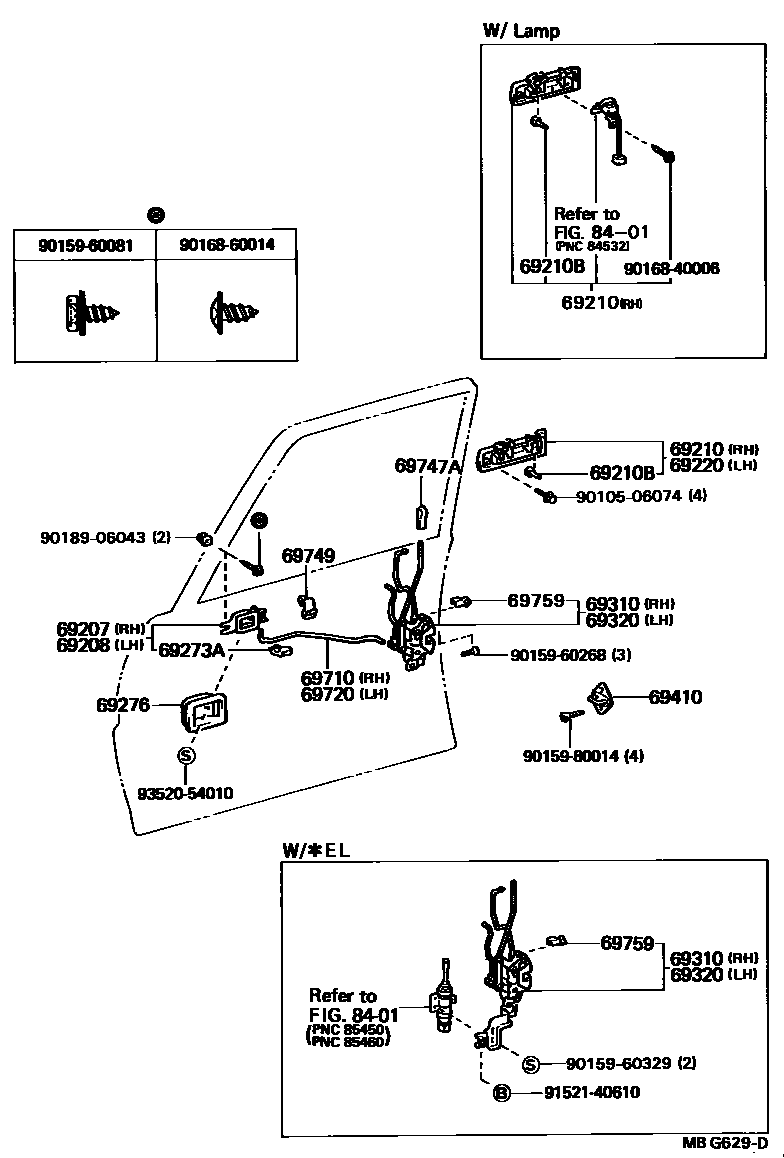

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22020-03iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

sub69205-22020

main69205-22020-04iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198608-198808

BLUE,DARK BLUE,TRIM8#

sub69205-22020

main69205-22020-05iGX70198408-198608

BEIGE,BEIGE,TRIM4#

sub69205-22020

main69205-22020-15iGX71,LX7#,SX70,YX7#..DX,GL,LS198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub69205-22020

main69205-22030iGX7#,LX70,SX70..GD,GR,GT,LG198408-198808

main69205-22030iGX70198411-198608

W/*EL

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22020-03iGX70198408-198608

GRAY,COOL GRAY,TRIM1#

sub69206-22020

main69206-22020-04iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198608-198808

BLUE,DARK BLUE,TRIM8#

sub69206-22020

main69206-22020-05iGX71,LX7#,SX70,YX7#..DX,GL,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub69206-22020

main69206-22020-15iGX71,LX7#,SX70,YX7#..DX,GL,LS198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub69206-22020

main69206-22030iGX71,LX70,MX71,SX70..GD,GR,GT,LG198408-198808

main69206-22030iGX70198411-198608

W/*EL

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22080iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198808

main69210-22090iGX71,MX71..GD,GT198408-198808

sub69210-22080

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iGX7#,LX7#,MX71,SX70,YX7#198408-198808

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22070iGX7#,LX7#,MX71,SX70,YX7#198408-198808

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69759-20060iGX71,LX70,SX70,YX70..GL,KYO,LS,STD198408-198410

LH

main69759-20070iGX71,LX70,SX70,YX70..GL,KYO,LS,STD198408-198410

RH

main69759-20100iGX71,LX70,MX71,SX70..GD,GR,LG198408-198410

LH

main69759-20110iGX71,LX70,MX71,SX70..GD,GR,LG198408-198410

RH

main69759-22040iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198410-198808

RH

main69759-22050iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198410-198808

LH

main69759-22060iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198410-198808

RH

main69759-22070iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198410-198808

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-22050-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198608

MAROON,RED,TRIM3#

sub69277-22050

main69277-22050-03iGX7#,LX7#,MX71,SX70,YX7#198408-198608

GRAY,COOL GRAY,TRIM1#

sub69277-22050

main69277-22050-04iGX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

sub69277-22050

main69277-22050-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub69277-22050

main69277-22050-12iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

MAROON,MAROON,TRIM3#

sub69277-22050

main69277-22050-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub69277-22050

69310LOCK ASSY, FRONT DOOR, RH

main69310-22170iGX70198408-198508

main69310-22171iGX70198508-198808

main69310-22180iGX7#,LX70,SX70..(SED,WG)..(GR,LG)198408-198508

W/*EL

main69310-22181iGX7#,LX70,SX70..(SED,WG)..(GR,LG)198508-198808

W/*EL

sub69310-22191

main69310-22190iGX71,MX71..SED..GD198408-198508

main69310-22191iGX71,MX71..SED..GD198508-198808

main69310-22270iGX71..HT..LG198408-198508

sub69310-22271

main69310-22271iGX71,SX70..HT..(GR,LG)198508-198808

main69310-22280iGX71,MX71..HT..GD198408-198508

main69310-22281iGX71,MX71..HT..(GD,GT)198508-198808

69320LOCK ASSY, FRONT DOOR, LH

main69320-22170iGX70198408-198508

main69320-22171iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198508-198808

main69320-22180iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198408-198508

W/*EL

main69320-22181iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198508-198808

W/*EL

main69320-22260iGX71,MX71..HT198408-198508

main69320-22261iGX71,MX71,SX70..HT198508-198808

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iGX7#,LX7#,MX71,SX70,YX7#198408-198808

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-22040iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

main69711-22050iGX71,MX71,SX70..HT198408-198808

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-22040iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

main69712-22050iGX71,MX71,SX70..HT198408-198808

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-22010iGX71,MX71,SX70..HT198408-198808

main69741-30030-03iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198608

GRAY,COOL GRAY,TRIM1#

sub69741-30030

main69741-30030-12iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198408-198608

MAROON,RED/MAROON,TRIM3#

sub69741-30030

main69741-30030-15iGX7#,LX7#,MX71,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

sub69741-30030

main69741-30030-22iGX7#,LX70,SX70..(SED,WG)..(GD,GR,LG)198608-198808

MAROON,MAROON,TRIM3#

sub69741-30030

main69741-30030-24iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

sub69741-30030

main69741-30030-25iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub69741-30030

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iGX7#,LX7#,MX71,SX70,YX7#198408-198808

LH

main69759-20050iGX7#,LX7#,MX71,SX70,YX7#198408-198808

RH

8401

9010506074

main90105-06074

9015960081

main90159-60081

9015960268

main90159-60268

9015960329

main90159-60329

9015980014

main90159-80014

9016840006

main90168-40006

9016860014

main90168-60014

9018906043

main90189-06043

9152140610

main91521-40610

9352054010

main93520-54010

26 parts on this diagram · 2 diagrams in section
