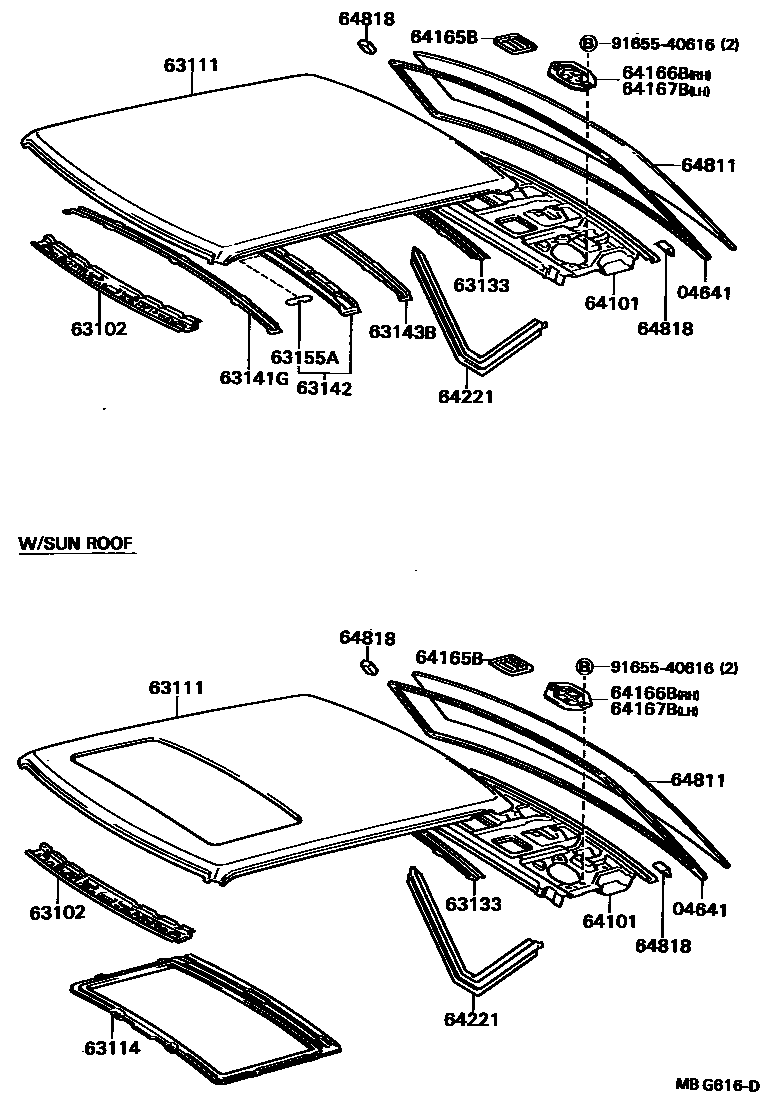

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iGX71,LX70,MX71,SX70,YX70,72198408-198808

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-22090iGX71..SED..GD198408-198510

W/SUN ROOF

main63102-22100iGX71,LX70,MX71,SX70..SED..(GD,GR,LG)198408-198808

main63102-22140iGX71,MX71,SX70..HT198408-198808

main63102-23020iGX70,LX76,YX76198411-198808

63111PANEL, ROOF

main63111-22130iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main63111-22140iGX71..SED..GD198608-198808

W/SUN ROOF

main63111-22160iGX71,MX71,SX70..HT198408-198808

main63111-23010iGX70,LX76,YX76198411-198808

sub63111-91619

63114REINFORCEMENT, ROOF PANEL, REAR

main63142-20020iGX71..SED..GD198408-198808

W/SUN ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-23010iGX70,LX76,YX76198411-198808

sub63105-23020

main63133-22060iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main63133-22080iGX71,MX71,SX70..HT198408-198808

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-22070iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main63143-22090iGX71,MX71,SX70..HT198408-198808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-22090iGX71,MX71,SX70..HT198408-198808

main63141-22060iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

main63141-23900iGX70,LX76,YX76198411-198808

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-22090iGX71,MX71,SX70..HT198408-198808

main63143-23010iGX70,LX76,YX76198411-198808

main63144-22010iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

63155APLATE, ROOF PANEL REINFORCEMENT

main63155-22020×2iGX7#,LX7#,MX71,SX70,YX7#198408-198808

64101PANEL SUB-ASSY, UPPER BACK

main64101-22170iGX71,LX70,MX71,SX70..SED198408-198507

main64101-22180iYX70,72198408-198808

main64101-22190iGX71,LX70,MX71,SX70..SED198507-198808

main64101-22220iGX71,MX71,SX70..HT198408-198808

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-22010×2iGX71,LX70,MX71,SX70,YX70,72198408-198808

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-22010iGX71..HT..LG198408-198808

main64166-22030iGX71,LX70,SX70,YX70,72..SED..(GL,GR,KYO,LG,LS,STD)198408-198808

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64166-22010iGX71..HT..LG198408-198808

main64167-22030iGX71,LX70,SX70,YX70,72..SED..(GL,GR,KYO,LG,LS,STD)198408-198808

64221BRACE, REAR SEAT CUSHION SUPPORT

main64221-22020iGX71,LX70,MX71,SX70,YX70,72198408-198808

64811GLASS, BACK WINDOW

main64811-22350iSX70..STD198408-198808

main64811-22360iLX70,SX70,YX70..KYO198408-198808

main64811-22370iGX71,LX70,MX71,SX70,YX70..SED..(GD,GL,GR,LG,LS)198408-198608

main64811-22371iGX71,LX70,SX70,YX72..SED..(GD,GL,GR,LG,LS)198608-198808

main64811-22380iLX70,SX70..GR198510-198608

GR EXTRA,*EHTT,T=4.0,BRONZE

main64811-22381iGX71,LX70,SX70..SED..(GD,GR,LG)198608-198808

main64811-22450iGX71,MX71..HT198408-198608

*EHTT,T=4.0

main64811-22451iGX71..HT198608-198808

main64811-22460iGX71,MX71..HT..(GD,GT)198408-198608

W/RR WIPER,*EHTT,T=4.0

main64811-22461iGX71..HT198608-198808

main64811-22470iGX71,MX71..HT..(GD,GT)198408-198608

*EHTT,T=4.0,BRONZE

main64811-22471iGX71,SX70..HT198608-198808

main64811-22480iGX71,MX71..HT..(GD,GT)198408-198608

W/RR WIPER,*EHTT,T=4.0,BRONZE

main64811-22481iGX71..HT198608-198808

main64811-22540iGX71..HT..EFI198705-198707

*EHTT,T=4.0,GRAY

main64811-22550iGX71..HT..EFI198705-198808

W/RR WIPER,*EHTT,T=4.0,GRAY

64818SPACER, BACK WINDOW GLASS

main64818-22010×2iGX71,MX71,SX70..HT198408-198808

12.5X20X7.3

main64818-22030×2iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

10X6X20

main64818-22040×2iGX71,MX71,SX70..HT198408-198808

12.5X20X5.8

main64818-22050×2iGX71,MX71,SX70..HT198408-198808

12.5X20X8.8

main64819-22010×2iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

12X5X20

main64819-22020×2iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

12X3X20

main64819-22030×2iGX71,LX70,MX71,SX70,YX70,72..SED198408-198808

12X7X20

9165540616

main91655-40616

17 parts on this diagram · 3 diagrams in section
