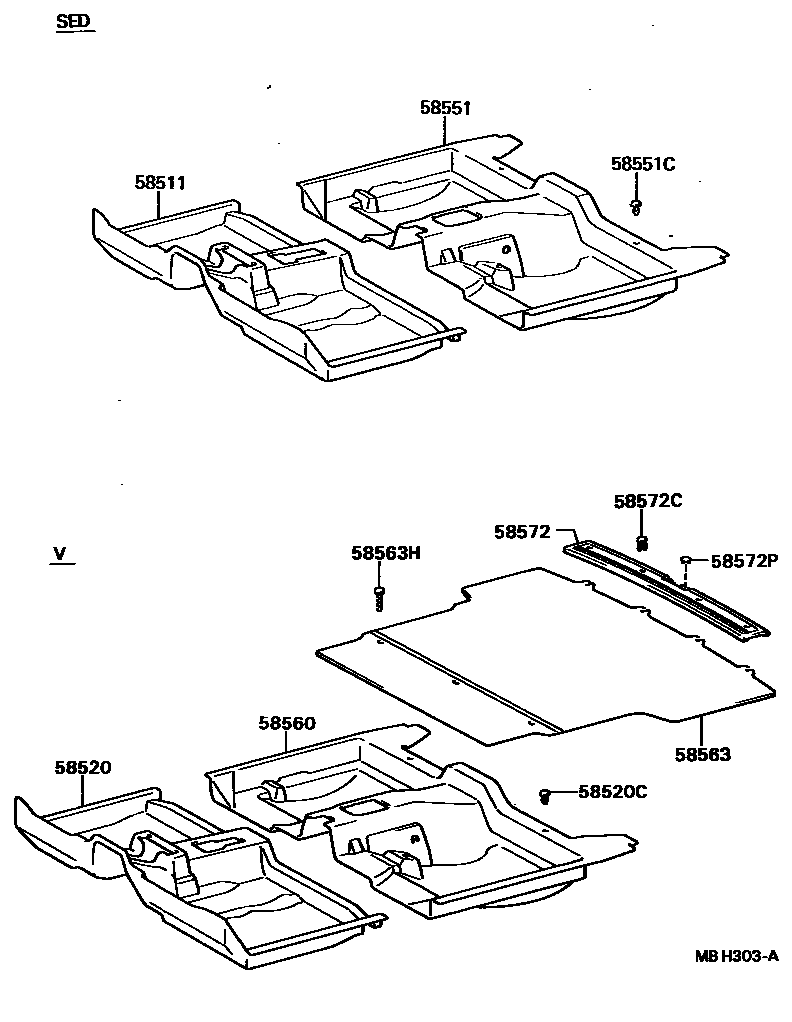

MAT & CARPET
58511MAT, FLOOR, FRONT
GRAY,COOL GRAY,TRIM1#
GRAY,COOL GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
*30,BLUE,DARK BLUE,TRIM8#
58520CARPET ASSY, FRONT FLOOR
BEIGE,DARK BEIGE,TRIM4#
sub58510-2A200
MAROON,MAROON,TRIM3#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
GRAY,COOL GRAY,TRIM1#
sub90467-06055
BEIGE,BEIGE,TRIM4#
sub90467-06055
OD=25,BEIGE,DARK BEIGE,TRIM4#
sub90467-06055
58551MAT, FLOOR, REAR
GRAY,COOL GRAY
BLUE,DARK BLUE
*30,BLUE,DARK BLUE
58551CCLIP(FOR FLOOR MAT, REAR)
58560CARPET ASSY, FLOOR, REAR
MAROON,MAROON,TRIM3#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
58563MAT, REAR FLOOR
58563HCLIP(FOR REAR FLOOR MAT)
58572SET PLATE, REAR FLOOR MAT, REAR
58572CCLIP, REAR FLOOR MAT SET
58572PPLUG, HOLE(FOR SET PLATE)
11 parts on this diagram · 2 diagrams in section
