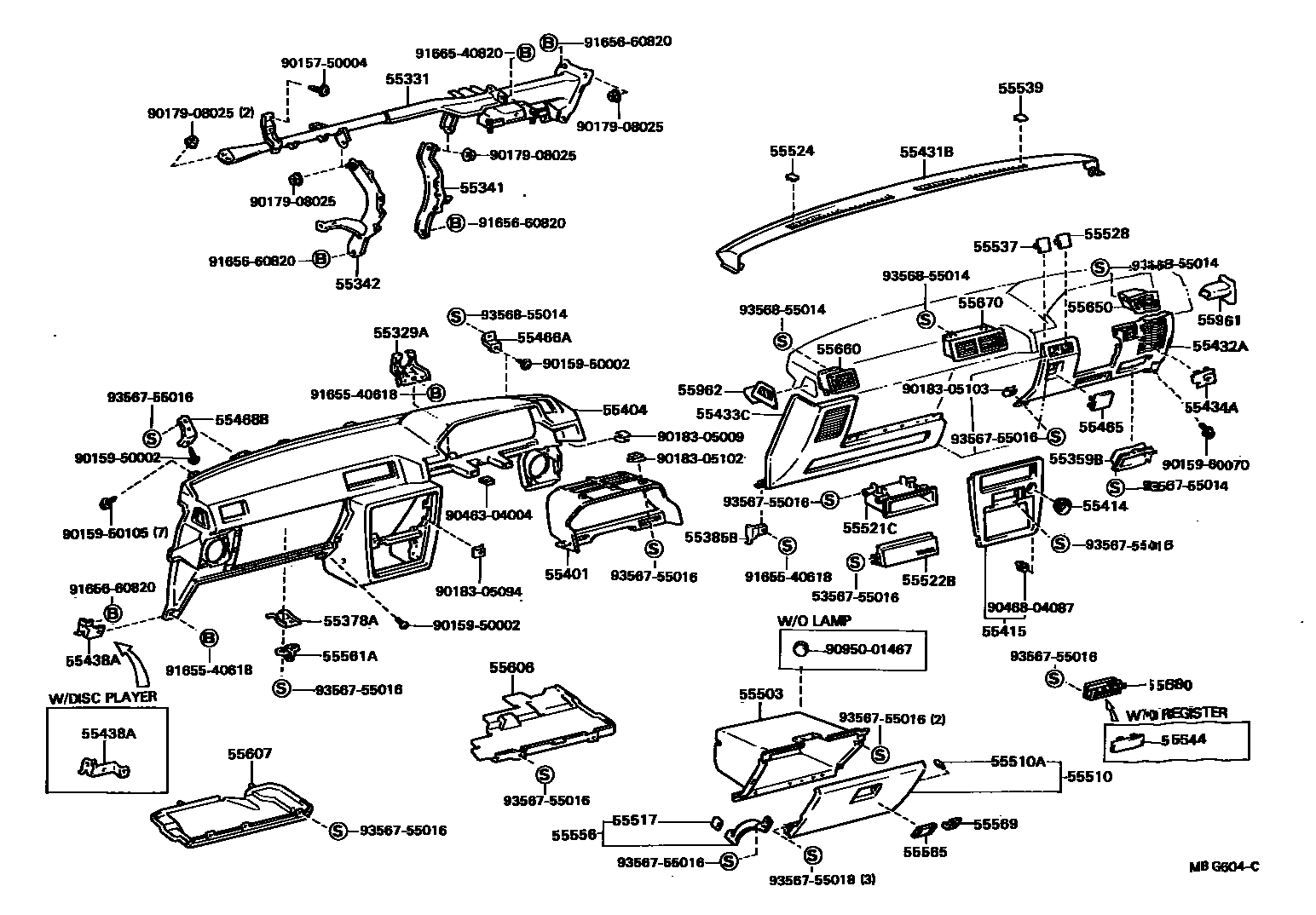

INSTRUMENT PANEL & GLOVE COMPARTMENT

55329ABRACKET, INSTRUMENT PANEL METER

main55329-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198808

main55329-22040iGX71,MX71..GD,GT198408-198808

W/DIGITAL METER

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198608

main55330-22050iGX7#,LX7#,SX70,YX7#198608-198808

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-22120iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-22170iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55359BBOX, INSTRUMENT PANEL, CENTER

main55359-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55385BBRACKET, FINISH PANEL MOUNTING, NO.5

main55385-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55411-22250iGX7#,LX7#,MX71,SX70,YX70,76198408-198808

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-22210-03iGX7#,LX7#,MX71,SX70,YX7#198408-198608

GRAY,COOL GRAY,TRIM1#

sub55401-22210

main55401-22210-04iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55401-22210

main55401-22210-12iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198608

MAROON,MAROON,TRIM3#

sub55401-22210

main55401-22210-15iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55401-22210

main55401-22210-22iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

MAROON,MAROON,TRIM3#

sub55401-22210

main55401-22210-25iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55401-22210

55414BEZEL, CIGAR LIGHTER HOLE

main55477-22040iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-22060iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198808

sub55412-22210

main55412-22070iGX71,MX71..GD,GT198408-198808

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55431-22030-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198808

MAROON,RED,TRIM3#

sub55431-22030

main55431-22030-03iGX7#,LX7#,MX71,SX70,YX7#198408-198608

GRAY,COOL GRAY,TRIM1#

sub55431-22030

main55431-22030-04iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55431-22030

main55431-22030-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55431-22030

main55431-22030-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55431-22030

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-22120-02iGX7#,LX70,SX70..GR,LG198408-198808

MAROON,RED,TRIM3#

sub55432-22170

sub55432-22130

main55432-22120-03iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

sub55432-22170

sub55432-22130

main55432-22120-04iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198608-198808

BLUE,DARK BLUE,TRIM8#

sub55432-22170

sub55432-22130

main55432-22120-05iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55432-22170

sub55432-22130

main55432-22120-15iGX71,LX7#,SX70,YX7#..DX,GL,LS198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55432-22170

sub55432-22130

main55432-22130-02iGX71,MX71..GD,GT198408-198608

MAROON,RED,TRIM3#

sub55432-22170

sub55432-22130

main55432-22130-03iGX71,MX71..GD,GT198408-198608

GRAY,COOL GRAY,TRIM1#

sub55432-22170

sub55432-22130

main55432-22130-05iGX71,MX71..GD,GT198408-198608

BEIGE,BEIGE,TRIM4#

sub55432-22170

sub55432-22130

main55432-22170-02iGX7#..GD,GT,LG198608-198808

MAROON,MAROON,TRIM3#

sub55432-22170

main55432-22170-04iGX7#..GD,GT,LG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55432-22170

main55432-22170-05iGX7#..GD,GT,LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55432-22170

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-22020-02iLX70,SX70..GR198408-198808

MAROON,RED,TRIM3#

sub55433-22020

sub55433-22070

main55433-22020-03iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

sub55433-22020

sub55433-22070

main55433-22020-04iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198608-198808

BLUE,DARK BLUE,TRIM8#

sub55433-22020

sub55433-22070

main55433-22020-05iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55433-22020

sub55433-22070

main55433-22020-15iGX71,LX7#,SX70,YX7#..DX,GL,LS198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55433-22020

sub55433-22070

main55433-22030-02iGX71,MX71..GD,GT198408-198608

MAROON,RED,TRIM3#

main55433-22030-03iGX71,MX71..GD,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main55433-22030-05iGX71,MX71..GD,GT198408-198608

BEIGE,BEIGE,TRIM4#

main55433-22070-02iGX7#..GD,GT,LG198608-198808

MAROON,MAROON,TRIM3#

sub55433-22070

main55433-22070-04iGX7#..GD,GT,LG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55433-22070

main55433-22070-05iGX7#..GD,GT,LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55433-22070

main55433-22080-02iGX71..GD,GT198608-198808

W/DISC PLAYER,MAROON,MAROON,TRIM3#

sub55433-22080

main55433-22080-04iGX71..GD,GT198608-198808

W/DISC PLAYER,BLUE,DARK BLUE,TRIM8#

sub55433-22080

main55433-22080-05iGX71..GD,GT198608-198808

W/DISC PLAYER,BEIGE,DARK BEIGE,TRIM4#

sub55433-22080

55434APANEL, INSTRUMENT FINISH, LOWER SUB

main55434-22040-02iGX7#,LX70,SX70..GR,LG198408-198808

MAROON,RED,TRIM3#

sub55434-22040

main55434-22040-03iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

sub55434-22040

main55434-22040-04iGX71..HT..LG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55434-22040

main55434-22040-05iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55434-22040

main55434-22040-15iGX71..HT..LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55434-22040

main55434-22050-02iGX71,MX71..GD,GT198408-198808

MAROON,RED,TRIM3#

main55434-22050-03iGX71,MX71..GD,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main55434-22050-04iGX71..GD,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main55434-22050-05iGX71,MX71..GD,GT198408-198608

BEIGE,BEIGE,TRIM4#

main55434-22050-15iGX71..GD,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

55438ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2

main55438-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

RH

main55438-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

LH

main55438-22030iGX71..GD,GT198608-198808

LH,W/DISC PLAYER

55465COVER, INSTRUMENT HOLE

main55531-22100-02iGX7#,LX70,SX70..5F..(GD,GR,GT,LG)198408-198808

MAROON,RED,TRIM3#

sub55531-22100

main55531-22100-03iGX7#,LX7#,SX70,YX76..3FC,5F198408-198608

GRAY,COOL GRAY,TRIM1#

sub55531-22100

main55531-22100-04iGX7#,LX7#,SX70,YX76..(SED,V,WG)..(3FC,5F)198608-198808

BLUE,DARK BLUE,TRIM8#

sub55531-22100

main55531-22100-04iSX70..4FC..GL198612-198808

*30,BLUE,DARK BLUE,TRIM8#

sub55531-22100

main55531-22100-05iGX7#,LX7#,SX70,YX76..(3FC,5F)..(DX,GD,GL,GR,GT,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

sub55531-22100

main55531-22100-15iGX71..HT..5F198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55531-22100

main55531-22100-15iSX70..4FC..GL198612-198808

*30,BEIGE,DARK BEIGE,TRIM4#

sub55531-22100

55466ARETAINER, INSTRUMENT PANEL SAFETY PAD

main55466-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55468BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.3

main55468-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-22060iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22070-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198808

MAROON,RED,TRIM3#

sub55550-22070

main55550-22070-03iGX7#,LX7#,MX71,SX70,YX7#198408-198608

GRAY,COOL GRAY,TRIM1#

sub55550-22070

main55550-22070-04iGX7#,LX7#,SX70,YX7#198608-198808

BLUE,DARK BLUE,TRIM8#

sub55550-22070

main55550-22070-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55550-22070

main55550-22070-15iGX7#,LX7#,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55550-22070

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55521CCOVER, STEREO OPENING

main55521-14050-01iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,KYO,LG,LS,STD)198408-198808

BLACK,BLACK

sub55521-14050

55522BCOVER, RADIO TUNER OPENING

main55522-32010iGX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198408-198808

sub55522-20070

main55522-32010iSX70,YX72..ATM..GL198612-198808

*30

sub55522-20070

55524COVER, SWITCH BACE HOLE

main55524-22050-02iGX7#,LX70,SX70..GR,LG198408-198808

MAROON,RED,TRIM3#

sub55524-22050

main55524-22050-03iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

sub55524-22050

main55524-22050-04iGX71..HT..LG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55524-22050

main55524-22050-05iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55524-22050

main55524-22050-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55524-22050

55528COVER, AUTO DRIVE OPENING

main55528-22020iYX72..GL198408-198808

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55528-22020iSX70..STD198408-198808

55539COVER, SPARE SWITCH HOLE

main55539-22070-02iGX7#,LX70,SX70..GR,LG198408-198808

MAROON,RED,TRIM3#

sub55539-22070

main55539-22070-03iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

sub55539-22070

main55539-22070-04iGX71..HT..LG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55539-22070

main55539-22070-05iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55539-22070

main55539-22070-15iGX71..HT..LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55539-22070

55544COVER, INSTRUMENT PANEL REGISTER HOLE

main55544-32010-02iGX7#,LX70,SX70..GR,LG198408-198808

MAROON,MAROON,TRIM3#

sub55544-32010

main55544-32010-05iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55544-32010

main55544-32010-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55544-32010

main55544-32010-23iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

sub55544-32010

main55544-32010-24iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,KYO,LG,LS,STD)198608-198808

BLUE,DARK BLUE,TRIM8#

sub55544-32010

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22060iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22010-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198411-198608

MAROON,MAROON,TRIM3#

sub55565-22010

main55565-22010-03iGX7#,LX7#,MX71,SX70,YX7#198411-198608

GRAY,COOL GRAY,TRIM1#

sub55565-22010

main55565-22010-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198411-198608

BEIGE,BEIGE,TRIM4#

sub55565-22010

main55565-22010-12iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

MAROON,MAROON,TRIM3#

sub55565-22010

main55565-22010-14iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55565-22010

main55565-22010-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55565-22010

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22020-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198411-198608

MAROON,MAROON,TRIM3#

sub55569-22020

main55569-22020-03iGX7#,LX7#,MX71,SX70,YX7#198411-198608

GRAY,COOL GRAY,TRIM1#

sub55569-22020

main55569-22020-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198411-198608

BEIGE,BEIGE,TRIM4#

sub55569-22020

main55569-22020-12iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

MAROON,MAROON,TRIM3#

sub55569-22020

main55569-22020-14iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55569-22020

main55569-22020-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55569-22020

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22090iGX71,LX7#,MX71..DX,GD,GL,GR,GT,KYO198408-198808

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22040iGX71,LX7#,MX71..DX,GD,GL,GR,GT198408-198808

main55607-22060iGX71..4FC..TWC198408-198808

W/4-ESC

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22060-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198608

MAROON,RED,TRIM3#

main55650-22060-03iGX7#,LX7#,MX71,SX70,YX7#198408-198608

GRAY,COOL GRAY,TRIM1#

main55650-22060-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

main55650-22100-02iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

MAROON,MAROON,TRIM3#

sub55650-22100

main55650-22100-04iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55650-22100

main55650-22100-05iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55650-22100

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22080-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198808

MAROON,RED,TRIM3#

sub55660-22080

main55660-22080-03iGX7#,LX7#,MX71,SX70,YX7#198408-198608

GRAY,COOL GRAY,TRIM1#

sub55660-22080

main55660-22080-04iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55660-22080

main55660-22080-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55660-22080

main55660-22080-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55660-22080

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22080-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198808

MAROON,RED,TRIM3#

sub55670-22080

main55670-22080-03iGX7#,LX7#,MX71,SX70,YX7#198408-198608

GRAY,COOL GRAY,TRIM1#

sub55670-22080

main55670-22080-04iGX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

sub55670-22080

main55670-22080-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55670-22080

main55670-22080-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55670-22080

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

W/COOLER

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22040-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198808

MAROON,RED,TRIM3#

sub55961-22040

main55961-22040-03iGX7#,LX7#,MX71,SX70,YX7#198408-198608

GRAY,COOL GRAY,TRIM1#

sub55961-22040

main55961-22040-04iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

sub55961-22040

main55961-22040-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55961-22040

main55961-22040-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55961-22040

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22040-02iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198808

MAROON,RED,TRIM3#

sub55962-22040

main55962-22040-03iGX7#,LX7#,MX71,SX70,YX7#198408-198608

GRAY,COOL GRAY,TRIM1#

sub55962-22040

main55962-22040-04iGX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

sub55962-22040

main55962-22040-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

sub55962-22040

main55962-22040-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub55962-22040

5356755016

main53567-55016

9015750004

main90157-50004

9015950002

main90159-50002

9015950105

main90159-50105

9015960070

main90159-60070

9017908025

main90179-08025

9018305009

main90183-05009

9018305094

main90183-05094

9018305102

main90183-05102

9018305103

main90183-05103

9046304004

main90463-04004

9046804087

main90468-04087

9095001467

main90950-01467

9165540618

main91655-40618

9165660820

main91656-60820

9166540820

main91665-40820

9356755014

main93567-55014

9356755016

main93567-55016

9356755018

main93567-55018

9356855014

main93568-55014

62 parts on this diagram · 1 diagram in section
