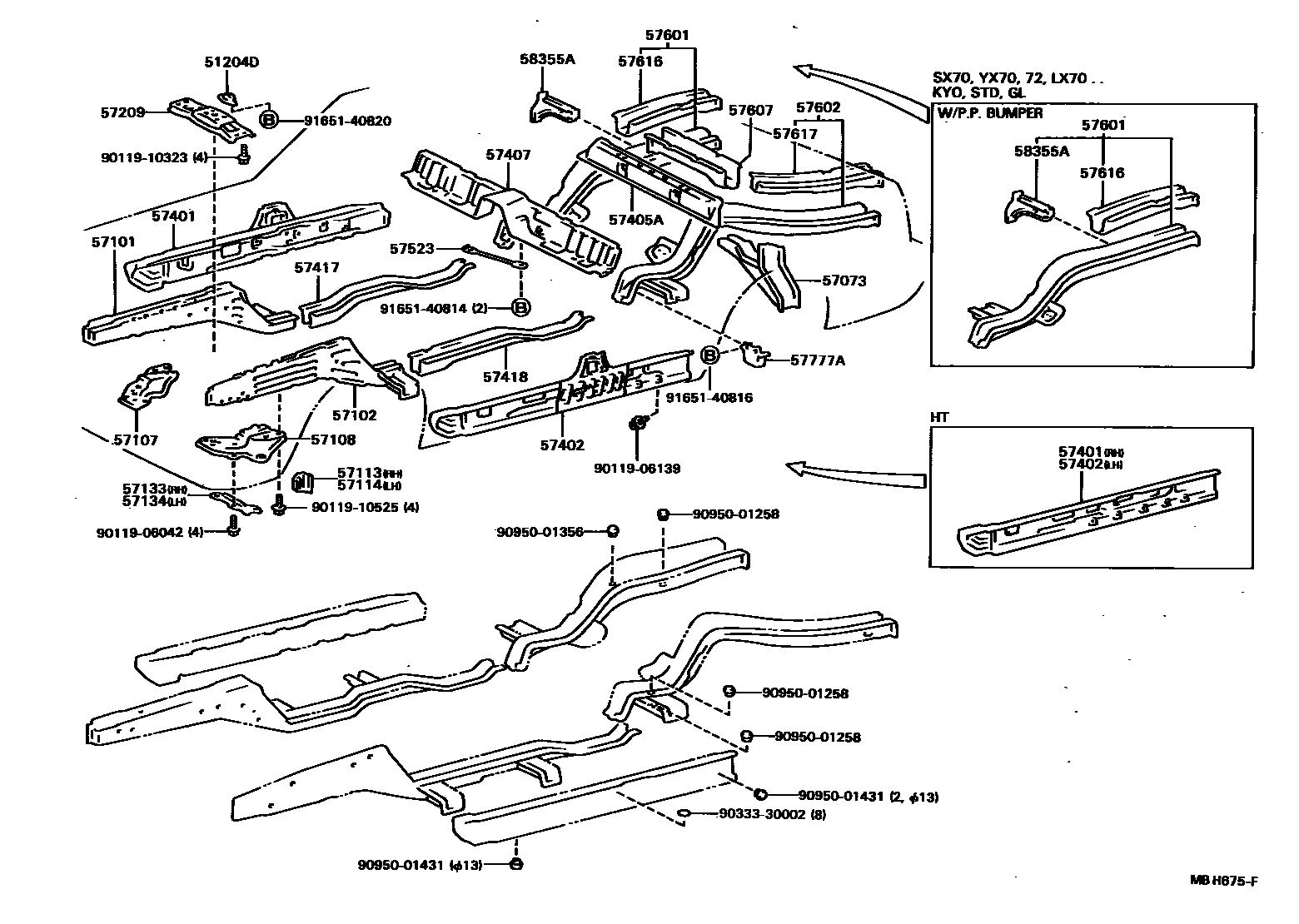

FLOOR SIDE MEMBER

0001 1 0002 1

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-22050iLX7#,MX71,SX70198408-198808

main51204-22080iGX71198608-198808

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-22040iLX70,SX70,YX70,72198408-198808

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-22240iGX7#,LX7#,MX71,SX70,YX7#198408-198808

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-22280iGX7#,LX7#,MX71,SX70,YX7#198408-198808

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22070iGX7#,LX7#,MX71,SX70,YX7#198408-198808

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22140iGX7#,LX7#,MX71,SX70,YX7#198408-198808

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22050iGX7#,LX7#,MX71,SX70,YX7#198408-198501

sub57113-22060

main57113-22060iGX7#,LX7#,MX71,SX70,YX7#198501-198808

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22050iGX7#,LX7#,MX71,SX70,YX7#198408-198501

sub57114-22060

main57114-22060iGX7#,LX7#,MX71,SX70,YX7#198501-198808

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

COLD SPEC

57134PROTECTOR, STRUT BAR BRACKET, LH

main57134-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

COLD SPEC

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-22130iYX7#..5F198408-198808

main57209-22140iYX7#..3FC198408-198808

main57255-22190iGX7#..5F198408-198808

main57255-22200iGX7#,MX71..4FC198408-198808

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22080iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

sub57401-22170

sub61335-22040

sub61343-22913

main57401-22090iGX71,MX71,SX70..HT198408-198808

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22080iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

sub57402-22170

sub61335-22040

sub61344-22913

main57402-22090iGX71,MX71,SX70..HT198408-198808

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-22010iGX71,LX70,MX71,SX70198408-198808

main57405-22020iYX70,72198408-198808

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-22050iGX71,MX71198408-198608

main57407-22060iLX70,SX70,YX70,72198408-198808

main57407-22070iGX71198608-198808

main57407-23010iGX70,LX76,YX76198411-198808

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-22040iGX7#,LX7#,MX71,SX70,YX7#198408-198506

sub57417-22050

main57417-22050iGX7#,LX7#,MX71,SX70,YX7#198506-198808

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-22040iGX7#,LX7#,MX71,SX70,YX7#198408-198506

sub57418-22050

main57418-22050iGX7#,LX7#,MX71,SX70,YX7#198506-198808

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-22010iGX71,MX71198408-198808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22260iLX70,SX70,YX70..GL,KYO,STD198408-198608

sub57601-22261

main57601-22261iLX70,SX70,YX72..GL,KYO,STD198608-198808

main57601-22911iGX71,MX71198408-198808

main57601-22912iLX70,SX70..GL198502-198608

W/URETHANE BUMPER

main57601-22912iLX70,SX70..GR198408-198608

main57601-22916iLX70,SX70,YX72..GL,GR198608-198808

W/URETHANE BUMPER

main57601-23010iLX76,YX76198411-198808

main57601-23020iGX70198411-198808

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22230iGX71,MX71198408-198808

main57602-22240iLX70,SX70..GR198408-198608

main57602-22240iLX70,YX70..GL..(DSL,LPG)198502-198608

W/URETHANE BUMPER

main57602-22241iLX70,SX70,YX72..GL,GR198608-198808

W/URETHANE BUMPER

main57602-22260iLX70,SX70,YX70..GL,KYO,STD198408-198608

sub57602-22261

main57602-22261iLX70,SX70,YX72..GL,KYO,STD198608-198808

main57602-23010iLX76,YX76198411-198808

main57602-23020iGX70198411-198808

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-22060iGX71,MX71198408-198808

main57605-22070iLX70,SX70,YX70,72198408-198808

main57652-91604iGX70,LX76,YX76198411-198808

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-22900iGX71,MX71198408-198808

main57615-22901iLX70,YX70..GL..(DSL,LPG)198502-198808

W/URETHANE BUMPER

main57615-22901iLX70,SX70..GR198408-198608

main57615-22903iLX70,SX70,YX70,72..GL,KYO,STD198408-198808

main57615-23010iGX70,LX76,YX76198411-198603

sub57615-23020

main57615-23020iGX70,LX76,YX76198603-198808

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-22900iGX71,MX71198408-198808

main57616-22901iLX70,YX70..GL..(DSL,LPG)198502-198808

W/URETHANE BUMPER

main57616-22901iLX70,SX70..GR198408-198608

main57616-22903iLX70,SX70,YX70,72..GL,KYO,STD198408-198808

main57616-23010iGX70,LX76,YX76198411-198603

sub57616-23020

main57616-23020iGX70,LX76,YX76198603-198808

57777APROTECTOR, LOWER CONTROL LINK

main57777-22010iLX70,SX70,YX70,72198408-198808

RH

main57778-22010iLX70,SX70,YX70,72198408-198808

LH

58355AREINFORCEMENT, FLOOR SIDE PLATE, RH

main58355-22030iGX71,LX70,MX71,SX70,YX70,72198408-198808

9011906042

main90119-06042

9011906139

main90119-06139

9011910323

main90119-10323

9011910525

main90119-10525

9033330002

main90333-30002

9095001258

main90950-01258

9095001356

main90950-01356

9095001431

main90950-01431

9165140814

main91651-40814

9165140816

main91651-40816

9165140820

main91651-40820

36 parts on this diagram · 2 diagrams in section
