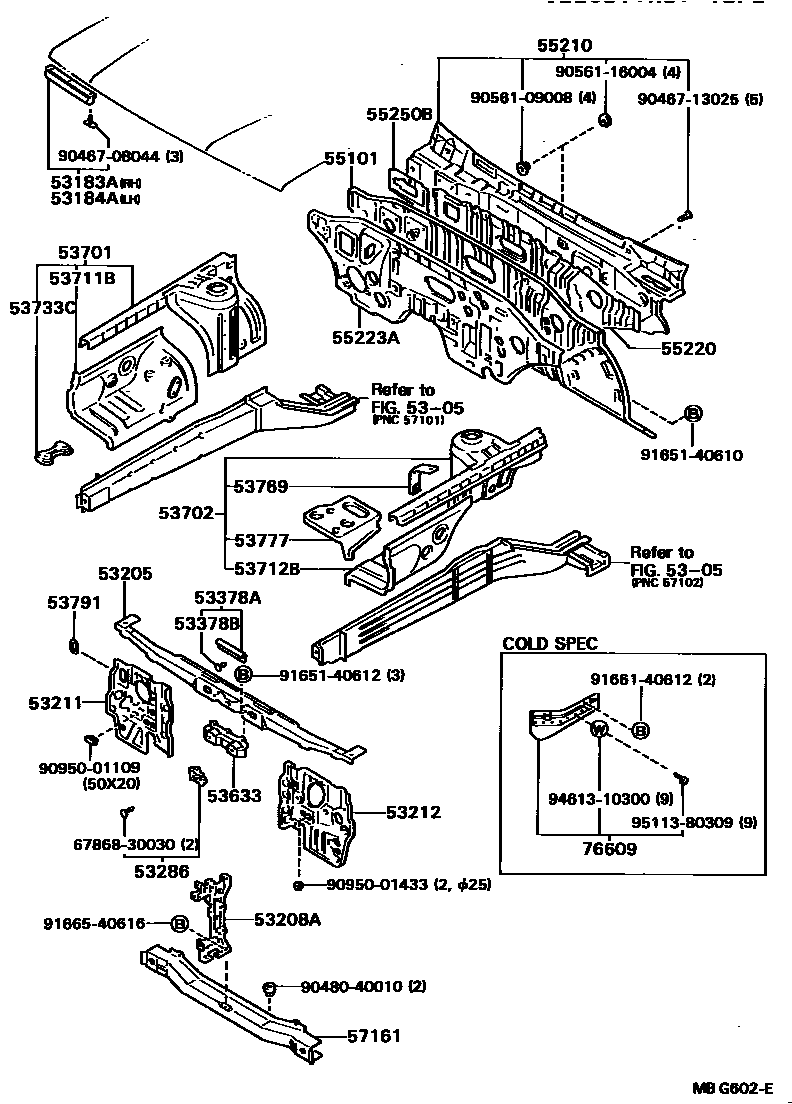

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5305

53183ASEAL, HEADLAMP COVER, RH

main53183-22010iGX71,MX71..HT198408-198608

main53183-22050iGX71,SX70..HT198608-198808

53184ASEAL, HEADLAMP COVER, LH

main53184-22010iGX71,MX71..HT198408-198608

main53184-22030iGX71,SX70..HT198608-198808

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-22040iGX71,MX71,SX70..HT198408-198808

sub53205-22050

main53205-22050iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-22020iGX71,MX71..HT198408-198608

main53208-22021iGX71,SX70..HT198608-198808

sub53208-22071

main53208-22080iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

main53215-22010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198608

53211SUPPORT, RADIATOR, RH

main53211-22190iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198608

main53211-22191iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

main53211-22200iGX71,MX71..HT198408-198601

sub53211-22210

main53211-22210iGX71..HT198601-198608

main53211-22211iGX71,SX70..HT198608-198808

53212SUPPORT, RADIATOR, LH

main53212-22120iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198608

main53212-22121iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

main53212-22130iGX71,MX71..HT198408-198608

main53212-22131iGX71,SX70..HT198608-198808

sub53212-22190

53286COVER, FRONT BUMPER ARM HOLE

main53285-22020iGX7#,LX7#,SX70,YX7#198408-198808

RH

main53286-22010iLX7#198408-198808

LH

53378ASEAL, HOOD AIR INTAKE DUCT

main53378-22010iLX7#198408-198808

COLD SPEC

53378BCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08011iLX7#198408-198808

COLD SPEC

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198704

sub53633-22030

main53633-22030iGX7#,LX7#,SX70,YX7#198704-198808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22390iGX7#,MX71198408-198808

sub53701-22410

main53701-22400iSX70,YX70198408-198808

W/POWER STEERING

main53701-22470iSX70,YX7#..DX,GL,KYO,STD198408-198808

main53701-22520iLX7#198408-198808

W/POWER STEERING

sub53701-22410

main53701-22530iLX7#..DX,KYO198408-198808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22400iLX70..TD198408-198808

COLD SPEC

main53702-22400iLX70..DSL198408-198808

W/POWER STEERING

main53702-22400iLX76198510-198808

COLD SPEC,W/POWER STEERING

main53702-22430iSX70,YX70..GL,KYO,STD198408-198808

main53702-22470iLX7#..DX,KYO198408-198808

COLD SPEC

main53702-22480iLX76,SX70,YX7#..DX,GL,KYO198408-198808

W/POWER STEERING

main53702-22520iGX71..TWC198608-198808

COLD SPEC

53711BAPRON, FRONT FENDER, FRONT RH

main53711-22320iGX7#,LX7#,MX71,SX70198408-198808

main53711-22340iYX7#198408-198808

53712BAPRON, FRONT FENDER, FRONT LH

main53712-22290iLX70..GL..DSL198408-198808

sub53712-22291

main53712-22310iLX70..TD198411-198808

COLD SPEC

main53712-22310iLX70..GR,KYO;LX70..GL..TD198408-198608

53733CPATCH, FRONT FENDER APRON

main53733-22060iGX7#,SX70,YX7#198801-198808

53769PLATE, IGNITION COIL MOUNTING, LH

main53769-22030iGX7#,SX70198801-198808

53777SUPPORT, BATTERY CARRIER, NO.2

main53777-22030iGX71..TWC198801-198808

COLD SPEC

main53777-22040iGX71..SED..TWC198801

COLD SPEC

53791COVER, COOL AIR INTAKE HOLE

main53791-22010iLX7#,YX7#198408-198608

main53791-22020iLX7#,YX7#198608-198808

55101PANEL SUB-ASSY, DASH

main55101-22911iGX7#,MX71..EFI,TBO,TWC198408-198808

main55101-22912iSX70..GL,GR,STD198408-198808

main55101-22913iLX7#..DX,GL,GR198408-198808

main55101-22916iLX70..KYO198408-198608

main55101-22917iSX70..KYO198408-198608

main55101-22923iYX70,72..GL198408-198808

main55101-22924iYX70..KYO198408-198608

main55101-22925iGX71..TWT198510-198808

main55101-22927iYX76198411-198808

main55101-22934iSX70..KYO198608-198808

main55101-22934iSX70..4FC..GL198612-198808

*30

main55101-22935iLX70..KYO198608-198808

main55101-22936iYX72..KYO198608-198808

main55101-22936iYX72..3FC198612-198808

*30

55210INSULATOR ASSY, DASH PANEL

main55210-22180iGX7#,LX7#,MX71,SX70,YX7#198408-198808

sub55210-22200

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

55223AINSULATOR, DASH PANEL, OUTER

main55223-22020iLX7#198408-198808

main55223-22030iGX71..GD,GT198408-198808

55250BINSULATOR ASSY, DUSH PANEL, NO.3

main55250-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

57161CROSSMEMBER, FRONT

main57104-22100iGX71,MX71..HT198408-198609

sub57104-22110

main57104-22110iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

76609MUDGUARD SUB-ASSY, FRONT SIDE MEMBER

main76609-22010iGX71,LX70,MX71,SX70,YX7#..ATM198408-198808

6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30030

9046708044

main90467-08044

9046713025

main90467-13025

9048040010

main90480-40010

9056109008

main90561-09008

9056116004

main90561-16004

9095001109

main90950-01109

9095001433

main90950-01433

9165140610

main91651-40610

9165140612

main91651-40612

9166140612

main91661-40612

9166540616

main91665-40616

9461310300

main94613-10300

9511380309

main95113-80309

40 parts on this diagram · 2 diagrams in section
