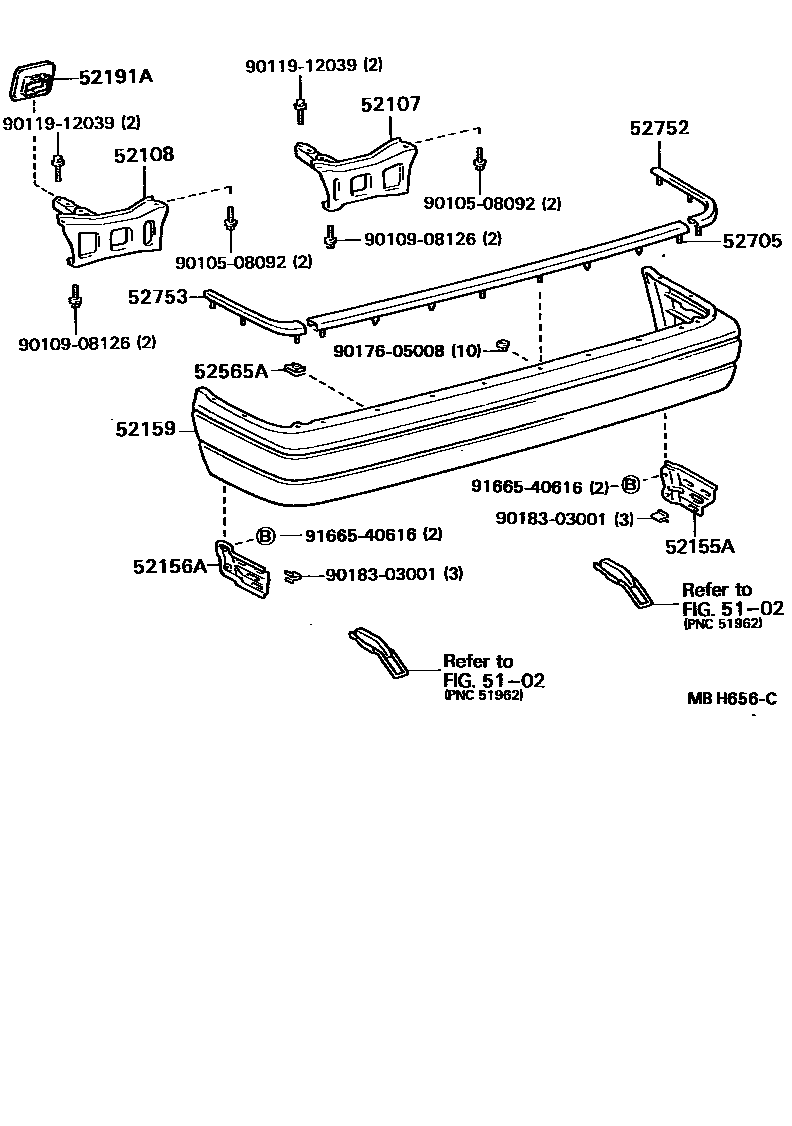

REAR BUMPER & BUMPER STAY

0001 1 0002 1

5102

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-22060iLX70,SX70,YX70,72..GL,KYO,STD¥3,720198408-198808

main52015-23030iLX76,YX76¥4,720198411-198808

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-22080iLX70,SX70,YX70,72..GL,KYO,STD¥3,850198408-198808

main52016-23030iLX76,YX76¥4,990198411-198808

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-22090iYX70..GL¥2,250198408-198608

TAXI SPEC

main52155-22090iYX70..GL¥2,250198408-198608

W/URETHANE BUMPER

main52155-22091iGX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS¥2,060198608-198808

W/URETHANE BUMPER

main52155-22100iLX70,SX70,YX70,72..GL,KYO,STD¥1,770198408-198808

main52155-23010iLX76,YX76¥1,870198411-198808

main52155-23030iGX70¥2,250198411-198808

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-22110iYX70..GL¥2,250198408-198608

W/URETHANE BUMPER

main52156-22110iGX71,LX70,MX71,SX70..GD,GR,GT,LG,LS¥2,250198408-198608

TAXI SPEC

main52156-22111iGX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS¥2,060198608-198808

W/URETHANE BUMPER

main52156-22120iLX70,SX70,YX70,72..GL,KYO,STD¥1,770198408-198808

main52156-23010iLX76,YX76¥1,870198411-198808

main52156-23030iGX70¥2,250198411-198808

52159COVER, REAR BUMPER

main52159-22140iGX70,YX70..GL,LG¥44,000198408-198608

W/URETHANE BUMPER

main52159-22140iGX70,YX70..GL,LG¥44,000198408-198608

TAXI SPEC

main52159-22140iGX71,LX70,SX70..GR,LG,LS¥44,000198408-198608

main52159-22150-03iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198408-198608

SUPER SILVER-M,SUPER SILVER M,150

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-04iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198408-198608

DARK BLUE-M,DARK BLUE METALLIC,8C1

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-05iGX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS198408-198608

BEIGE-M,BEIGE METALLIC,4E6

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-08iGX70198408-198808

SUPER WHITE,SUPER WHITE,040

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-12iGX71,MX71..GD198408-198510

DEEP MAROON,WINE RED METALLIC,3E2

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-15iGX71,MX71..HT..(GD,GT)198408-198608

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2U8

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-18iGX71,MX71..HT..GD198408-198510

PEARL MICA,PEARL MICA,2U9

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-24iGX70198608-198808

BLUE MICA,BLUE MICA,8E3

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-28iGX71..HT..4FC..TWC198512-198608

LIMITED,WHITE PEARL MICA,WHITE PEARL MICA,042

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-32iGX70198608-198808

RED MICA,DARK RED,3H3

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-33iGX70198608-198808

SUPER SILVER-M 2,SUPER SILVER 2 M,166

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-35iGX71..HT..(GD,GT)198510-198608

PEARL MICA/BEIGE-M,BEIGE/WHITE P-MICA,2U9

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-55iGX70198608-198808

BEIGE-M,BEIGE METALLIC,4G8

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22160iLX70,SX70,YX70,72..GL,KYO,STD¥20,400198408-198808

main52159-22210iGX71..LS¥39,900198608-198808

W/*UB

main52159-22220-02iGX71,LX70,SX70..CBR,DSL,EFI,TD,TWC198608-198808

W/*UB,RED MICA,DARK RED MICA,3H3

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-03iGX71,LX70,SX70..CBR,DSL,EFI,TD,TWC198608-198808

W/*UB,SUPER SILVER-M 2,SUPER SILVER 2,166

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-04iGX71,LX70,SX70..CBR,DSL,EFI,TD,TWC198608-198808

W/*UB,BLUE MICA,BLUE MICA,8E3

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-05iGX71,LX70,SX70..CBR,DSL,EFI,TD,TWC198608-198808

W/*UB,BEIGE-M,BEIGE METALLIC,4G8

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-08iGX71,LX70,SX70..GD,GL,GR,GT,LG,LS198608-198808

W/*UB,SUPER WHITE 2,SUPER WHITE 2,040

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-18iGX71..HT..(GD,GT)198608-198808

W/*UB,WHITE/BROWN,WHT/BROWN,25C

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-18iGX71..HT..4FC..TWC198708-198808

LIMITED,WHITE PEARL MICA,WHT/BROWN,042

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-28iGX71..HT..4FC..TWC198612-198705

LIMITED,WHITE PEARL MICA,WHTE/BEIGE,042

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-48iGX71..HT..4FC..TWC198705-198708

LIMITED,CRYSTAL PEARL MICA,C PEARL M/F BEIGE M,044

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-58iGX71..HT..EFI198705-198708

LIMITED,SUPER WHITE 2, WHITE 2/S SILVER 2,040

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22270-08iGX71..HT..EFI198708-198808

LIMITED,SILVER,SUPER WHITE,S WHITE 2/SILVER M,040

main52159-22280-08iGX71..HT..EFI198708-198808

LIMITED,GOLD,SUPER WHITE,S WHITE 2/BEIGE M,040

main52159-22290-08iGX71..HT..EFI198805-198808

LIMITED,WHITE PEARL MICA,W PEARL M/BEIGE M,042

main52159-23010iLX76,YX76¥20,400198411-198808

52191ASEAL, REAR BUMPER ARM

main52191-23010iGX70¥940198411-198808

main52191-23020iLX76,YX76¥980198411-198808

RH

main52192-23010iLX76,YX76¥980198411-198808

LH

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040iLX7#,SX70,YX7#..DX,GL,KYO,STD¥270198408-198808

main52565-22030iGX7#,MX71,SX70..GD,GR,GT,LG,LS¥1,670198408-198808

W/URETHANE BUMPER

main52565-22030iLX70¥1,670198408-198608

TAXI SPEC

52705MOULDING SUB-ASSY, REAR BUMPER

main52751-22060iGX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS¥7,500198608-198808

W/URETHANE BUMPER

main52751-22070iLX70¥8,000198408-198608

TAXI SPEC

main52751-22070iLX70¥8,000198408-198608

W/URETHANE BUMPER

main52751-22080iLX70,SX70,YX70,72..GL,KYO,STD¥6,200198408-198808

main52751-23010iGX70¥7,400198411-198808

52752MOULDING, REAR BUMPER SIDE, RH

main52706-22010iLX70¥3,250198408-198608

W/URETHANE BUMPER

main52706-22010iGX71,LX70,MX71,SX70..GD,GR,GT,LG,LS¥3,250198408-198608

TAXI SPEC

main52706-22030iLX70,SX70,YX70,72..GL,KYO,STD¥2,730198408-198808

main52706-22040iGX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS¥2,950198608-198808

W/URETHANE BUMPER

main52706-23010iLX76,YX76¥3,040198411-198808

main52706-23020iGX70¥3,130198411-198808

52753MOULDING, REAR BUMPER SIDE, LH

main52707-22010iLX70¥3,250198408-198608

W/URETHANE BUMPER

main52707-22010iYX70..GL¥3,250198408-198608

TAXI SPEC

main52707-22030iLX70,SX70,YX70,72..GL,KYO,STD¥2,730198408-198808

main52707-22040iGX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS¥2,950198608-198808

W/URETHANE BUMPER

main52707-23010iLX76,YX76¥3,040198411-198808

main52707-23020iGX70¥3,130198411-198808

9010508092

main90105-08092¥170

9010908126

main90109-08126¥170

9011912039

main90119-12039¥310

9017605008

main90176-05008¥130

9018303001

main90183-03001¥170

9166540616

main91665-40616¥70

17 parts on this diagram · 2 diagrams in section
