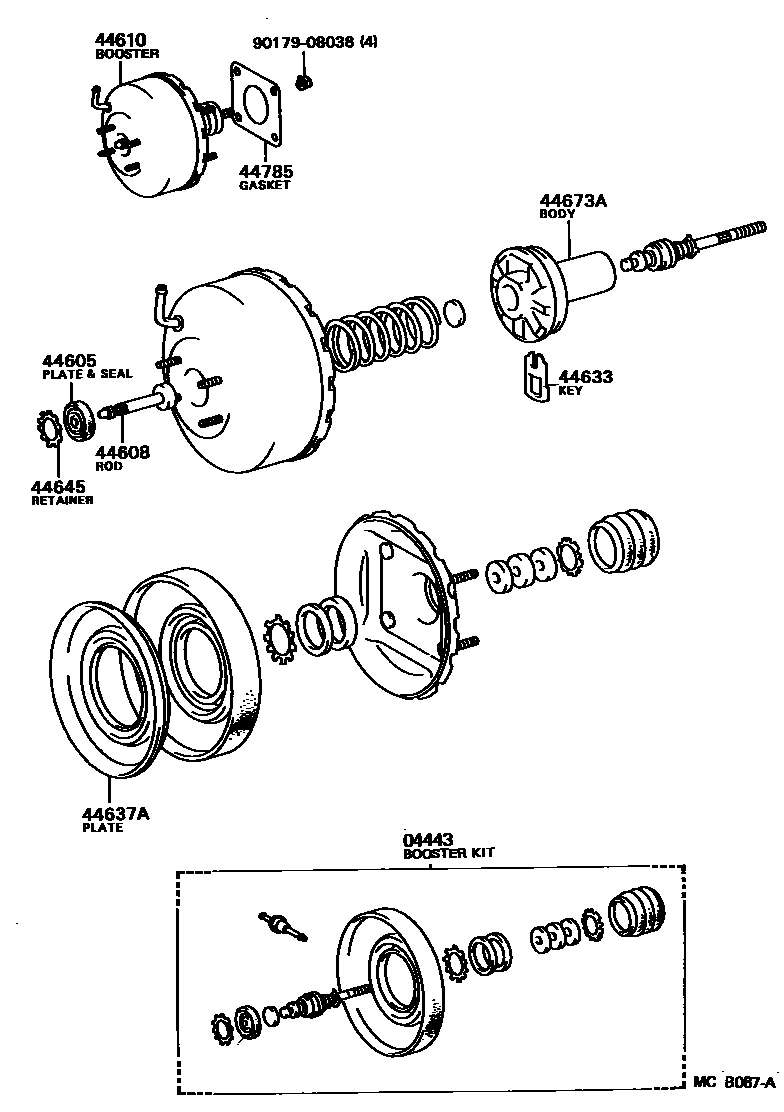

BRAKE BOOSTER & VACUUM TUBE

0001 1 0004 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

04443BOOSTER KIT, BRAKE

main04443-22390iGX71..GD..EFI¥11,800198408-198510

main04443-22410iGX7#..LG,LS¥9,400198408-198808

main04443-22420iLX70..TD¥15,100198408-198502

AISIN

main04443-22430iSX70,YX7#..DX,GL,GR,STD¥15,300198408-198510

main04443-22430iSX70,YX70,72..KYO¥15,300198408-198808

*41

main04443-22440iLX7#..DSL¥10,600198408-198502

main04443-22440iLX70..KYO¥10,600198502-198808

*41

main04443-22450iGX71..GD,GT¥19,700198408-198808

main04443-22460iMX71¥19,700198408-198510

main04443-22490iLX70,SX70,YX70,72..KYO¥11,800198408-198802

*42

sub04443-22491¥12,200

main04443-22491iLX70,SX70,YX72..KYO¥12,200198802-198808

*42

main04443-22500iSX70,YX7#..DX,GL,GR,STD¥10,600198510-198808

main04443-22510iLX7#..(DX,GL)..DSL¥10,600198502-198808

main04443-22520iLX70..TD¥11,600198502-198608

JKC

main04443-22560iLX70..TD¥11,600198608-198808

JKC

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iGX71..GD..EFI¥710198408-198808

sub44605-10080¥620

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iGX7#,SX70,YX7#..DX,GL,GR,LG,LS,STD¥2,660198408-198808

main44606-30460iGX71,MX71..TBO,TWC¥1,630198408-198808

main44608-22021iSX70,YX7#..DX,GL,GR,STD198510-198808

main44608-32020iLX70..TD¥2,670198408-198808

44610BOOSTER ASSY, BRAKE

main44610-22440iLX70..TD¥45,900198408-198502

AISIN

main44610-22450iGX7#..LG,LS¥46,000198408-198808

AISIN

main44610-22460iLX7#..(DX,GL)..DSL¥42,100198408-198502

AISIN

main44610-22470iLX70,SX70,YX70,72..KYO¥42,300198408-198808

*41

main44610-22470iSX70,YX7#..DX,GL,GR,STD¥42,300198408-198510

AISIN

main44610-22490iGX71..GD,GT¥40,500198408-198808

AISIN

main44610-22550iGX71..GD..EFI¥46,200198408-198510

JKC

main44610-22560iLX70,SX70..KYO¥70,300198408-198808

*42

main44610-22570iYX70,72..KYO¥70,300198408-198808

*42

main44610-22580iLX70..TD¥45,700198502-198608

JKC

main44610-22590iLX7#..(DX,GL)..DSL¥42,400198502-198808

JKC

main44610-22600iLX70..TD¥45,700198608-198808

JKC

main44610-22640iSX70,YX7#..DX,GL,GR,STD¥42,100198510-198808

JKC

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iGX71..GD..EFI¥640198408-198808

44637APLATE, BOOSTER DIAPHRAGM

main44637-32020iSX70,YX7#..DX,GL,GR,STD¥4,910198502-198808

main44637-32040iLX70..TD¥7,600198408-198808

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iGX71..GD..EFI¥220198408-198808

44673ABODY, BOOSTER VALVE

main44673-16060iLX7#..(DX,GL)..DSL¥3,710198502-198808

JKC

main44673-16060iSX70,YX7#..DX,GL,GR,STD¥3,710198510-198808

main44673-28190iGX71..GD..EFI¥3,350198408-198608

main44673-32020iLX70..TD¥5,400198608-198808

44785GASKET, BRAKE BOOSTER

main44785-32010iGX7#,LX7#,MX71,SX70,YX7#¥220198408-198808

9017908038

main90179-08038¥130

10 parts on this diagram · 11 diagrams in section
