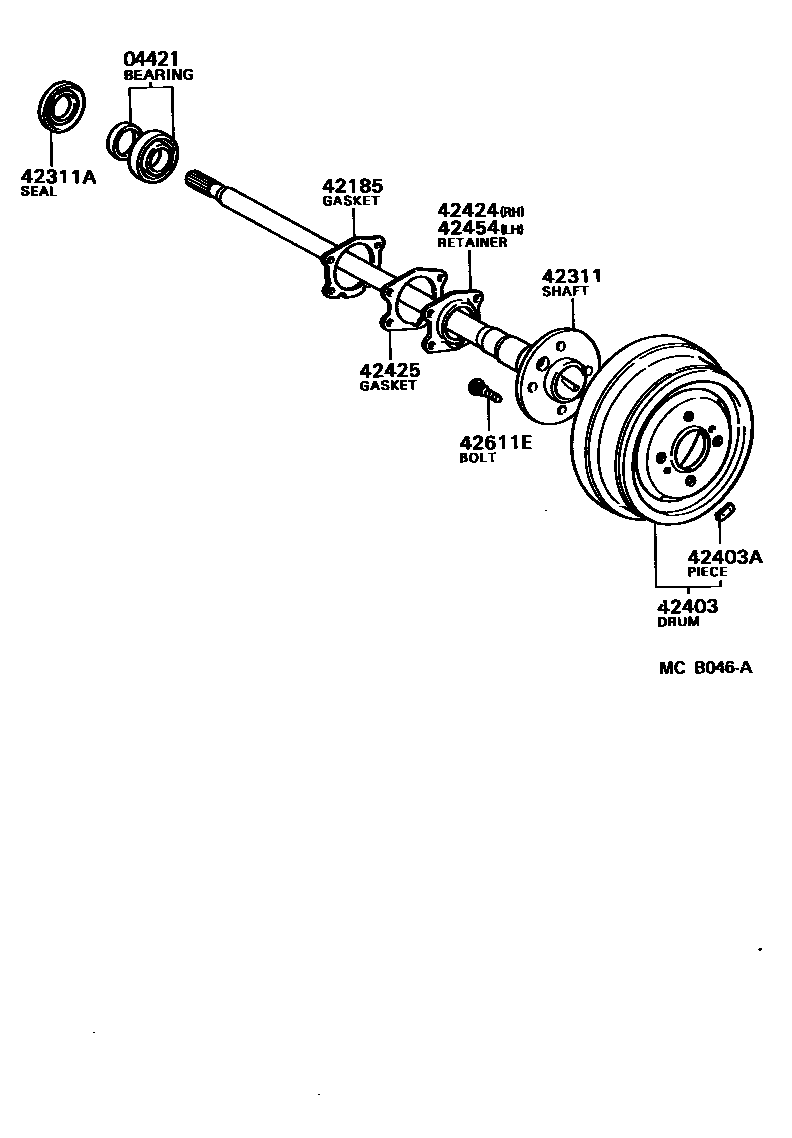

REAR AXLE SHAFT & HUB

0001 1 0003 1 0004 1 0005 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-30011iGX70,LX7#,SX70,YX7#¥3,710198408-198808

sub04421-30012¥3,700

42185GASKET, REAR AXLE HOUSING END

main42185-14020iGX70,LX7#,SX70,YX7#¥620198408-198808

main42185-22030iGX71,MX71..GD¥250198408-198409

42311SHAFT, REAR AXLE

main42301-22050iGX71,MX71¥22,300198408-198808

main42311-22110iLX76,SX70,YX7#¥20,000198408-198808

main42311-22130iGX70,LX70¥19,800198408-198808

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009iGX71,MX71¥290198408-198808

main90311-52059iGX70,LX7#,SX70,YX7#¥320198408-198808

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060iGX70,LX7#,SX70,YX7#¥13,100198408-198510

sub42431-14061¥11,900

main42431-14061iGX70,LX7#,SX70,YX7#¥11,900198510-198808

main42431-14080iGX71..LG,LS¥11,600198408-198510

sub42431-14081¥11,600

main42431-14081iGX71..LG,LS¥11,600198510-198808

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD¥130198408-198510

main90937-01118iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD¥130198408-198510

main90937-01119iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD¥130198408-198510

main90937-01195iGX7#,LX7#,SX70,YX70,76..DX,GL,GR,KYO,LG,LS,STD¥170198408-198703

main90937-01196iGX7#,LX7#,SX70,YX70,76..DX,GL,GR,KYO,LG,LS,STD¥190198408-198703

main90937-01197iGX7#,LX7#,SX70,YX70,76..DX,GL,GR,KYO,LG,LS,STD¥270198408-198703

main90937-01287iGX70,LX7#,SX70,YX7#¥250198510-198808

main90937-01288iGX70,LX7#,SX70,YX7#¥330198510-198808

main90937-01289iGX70,LX7#,SX70,YX7#¥430198510-198808

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iGX70,LX7#,SX70,YX7#¥620198408-198808

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020iGX70,LX7#,SX70,YX7#¥230198408-198808

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iGX70,LX7#,SX70,YX7#¥620198408-198808

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iGX7#,LX7#,MX71,SX70,YX7#¥230198408-198808

10 parts on this diagram · 4 diagrams in section
