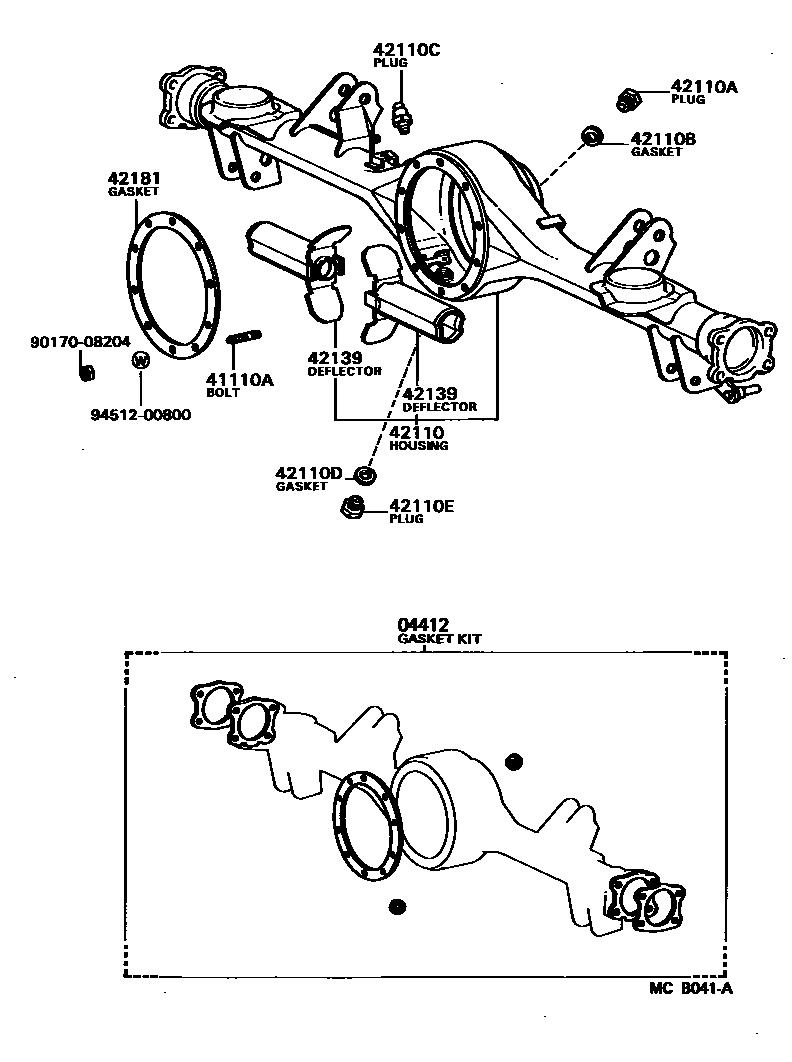

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-20030iGX70,LX7#,SX70,YX7#198408-198808

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14220iGX71..5F..EFI198408-198510

sub41110-14221

main41110-14221iGX71..5F..EFI198510-198808

main41110-14230iGX71..4FC..EFI198408-198510

sub41110-14231

main41110-14231iGX71..4FC..EFI198510-198808

main41110-14330iGX71..4FC..TWC198408-198808

W/LSD

main41110-14340iGX71..4FC..TWC198408-198808

main41110-20241iYX76;GX70,SX70..4FC198408-198808

main41110-20251iGX70..5F198408-198808

main41110-21020iLX70..KYO198408-198808

main41110-22141iMX71198408-198510

main41110-22170iSX70..5F..(GL,GR,STD)198408-198510

sub41110-22171

main41110-22171iLX70..5F..TD198510-198608

sub41110-22230

main41110-22210iGX71..4FC..TWT198510-198608

sub41110-22211

main41110-22220iGX71..4FC..TWT198510-198608

W/LSD

main41110-22230iSX70..5F..(GL,GR,STD)198608-198808

main41110-22240iGX70..5F198807-198808

main41110-22250iGX71..5F..TWT198608-198808

sub41110-22251

main41110-22260iGX71..4FC..TWT198608-198808

sub41110-22261

main41110-22270iGX71..5F..TWT198608-198808

W/LSD

main41110-22280iGX71..4FC..TWT198608-198808

W/LSD

main41110-24010iGX71..5F..TWC198408-198808

main41110-24020iGX71..5F..TWC198408-198808

W/LSD

main41110-24040iGX71..5F..TWT198510-198608

sub41110-24041

main41110-24060iGX71..5F..TWT198510-198608

W/LSD

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08106iLX70..5F..TD198408-198808

main90116-08235iGX70,LX7#,SX70,YX7#198408-198808

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-22190iLX70,SX70;YX70..KYO198408-198601

sub42110-22220

main42110-22220iLX70,SX70,YX70,72198601-198808

main42110-22220iLX70..GL..DSL198408-198601

TAXI SPEC

main42110-23090iGX70198411-198808

main42110-23100iLX76,YX76198411-198808

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iSX70198603-198808

main90341-18049iGX70,LX7#,YX7#198408-198607

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iGX70,LX7#,SX70,YX7#198408-198808

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iGX70,LX7#,SX70,YX7#198408-198808

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iGX70,LX7#,SX70,YX7#198408-198808

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iGX70,LX7#,SX70,YX7#198408-198808

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iGX70,LX70,SX70,YX70,72198408-198808

main42139-22020iLX76,YX76198411-198808

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iGX70,LX7#,SX70,YX7#198408-198808

9017008204

main90170-08204

9451200800

main94512-00800

13 parts on this diagram · 7 diagrams in section
