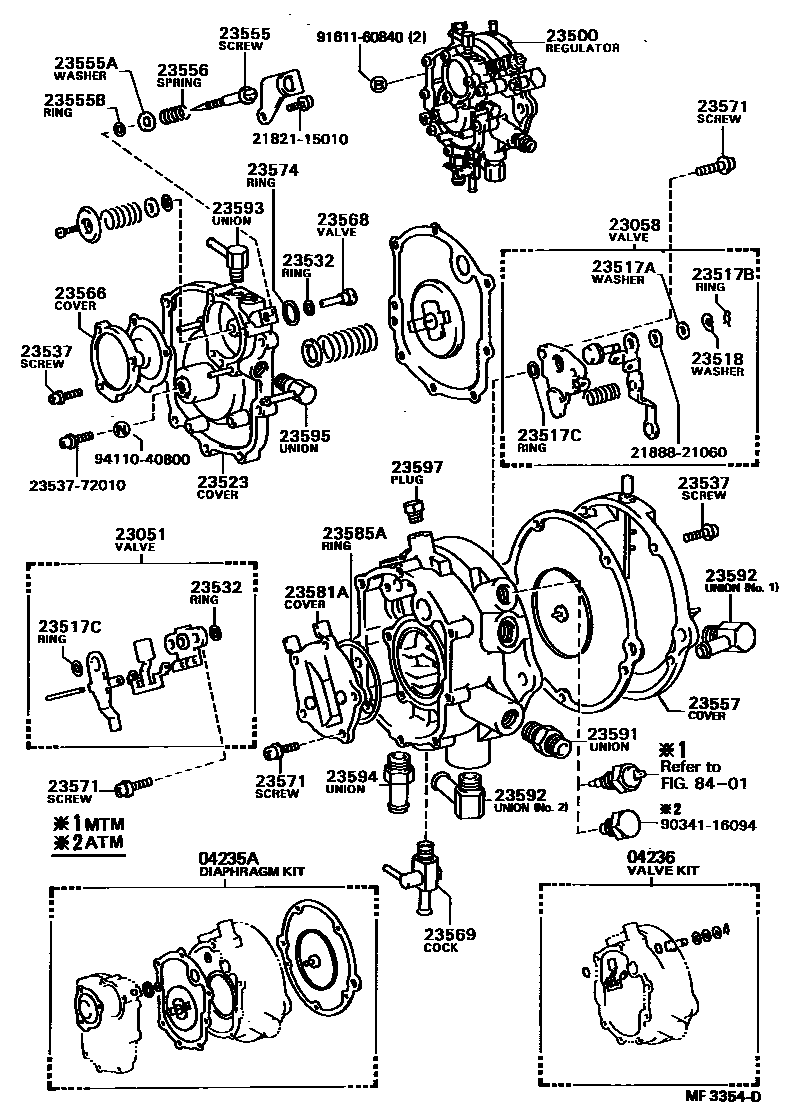

LPG OR CNG REGULATOR

04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE

main04235-72010i2YPU,3YPU..YX70,72198408-198808

04236VALVE KIT, LPG REGULATOR

main04236-72010i2YPU..YX70198408-198603

main04236-72020i2YPU,3YPU..YX70,72198603-198808

23051VALVE SUB-ASSY, 1ST

main23051-72010i2YPU,3YPU..YX70,72198408-198808

23058VALVE SUB-ASSY, 2ND

main23058-72010i2YPU,3YPU..YX70,72198408-198808

sub23058-44041

23500REGULATOR ASSY, LPG(CNG)

main23500-72030i2YPU..YX70..5F198408-198608

sub23500-72031

main23500-72040i2YPU..YX70..3FC198408-198608

main23500-72041i3YPU..YX72198706-198808

main23500-73091i3YPU..YX72..5F198608-198706

23517AWASHER(FOR ELASTIC FACE VALVE SET)

main21535-10010i2YPU,3YPU..YX70,72198408-198808

23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)

main21792-69210i2YPU,3YPU..YX70,72198408-198808

23517CGASKET(FOR ELASTIC FACE VALVE)

main23532-44020×2i2YPU..YX70198408-198808

23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-40010i2YPU,3YPU..YX70,72198408-198808

23523COVER, 1ST REGULATOR

main23523-72010i2YPU,3YPU..YX70,72198408-198808

23532RING, O, NO.2(FOR BULB)

main23532-40010×2i2YPU,3YPU..YX70,72198408-198808

23537SCREW(FOR 2ND REGULATOR COVER SET)

main21821-31140×16i2YPU,3YPU..YX70,72198408-198808

L=20

23555SCREW, IDLE ADJUST

main23555-44041i2YPU,3YPU..YX70,72198408-198808

sub23555-73130

23555AWASHER, IDLE ADJUST SCREW

main21885-26040i2YPU,3YPU..YX70,72198408-198808

23555BRING, O(FOR IDLE ADJUST SCREW)

main23532-40010i2YPU,3YPU..YX70,72198408-198808

23556SPRING, IDLE ADJUST SCREW

main21723-21030i2YPU,3YPU..YX70,72198408-198808

23557COVER, 2ND REGULATOR

main23557-72010i3YPU..YX72..5F198608-198808

23566COVER(FOR VACUUM LOCK DIAPHRAGM)

main23566-72010i2YPU,3YPU..YX70,72198408-198808

23568VALVE(FOR VACUUM LOCK DIAPHRAGM)

main23568-72010i2YPU,3YPU..YX70,72198408-198808

23569COCK, DRAIN

main23569-40010i2YPU,3YPU..YX70,72198408-198808

23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)

main23571-72010×9i2YPU,3YPU..YX70,72198408-198808

23574RING, O, NO.1(FOR BULB)

main23574-72010i2YPU,3YPU..YX70,72198408-198808

23581ACOVER, UPPER PREHEATER

main23581-72010i2YPU,3YPU..YX70,72198408-198808

23585ARING, O(FOR PREHEATER)

main23585-72010i2YPU,3YPU..YX70,72198408-198808

23591UNION, NO.1, FUEL

main23592-44050i3YPU..YX72198608-198808

NO.1

main23592-72010i3YPU..YX72198608-198808

NO.2

main90404-14064i2YPU..YX70198408-198608

23592UNION, NO.2, FUEL HOSE

main23592-44050×2i2YPU,3YPU..YX70,72198408-198808

23593UNION, NO.3

main23593-72010i2YPU,3YPU..YX70,72198408-198808

23594UNION, NO.4, WATER HOSE

main23594-72010i2YPU,3YPU..YX70,72198408-198808

23595UNION, NO.5

main23591-72010i2YPU,3YPU..YX70,72198408-198808

sub23591-41070

23597PLUG, LPG REGULATOR BODY

main90345-51025i2YPU,3YPU..YX70,72198408-198808

8401

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2188821060WASHER(FOR POSITIONER VALVE SET)

main21888-21060

2353772010SCREW(FOR 2ND REGULATOR COVER SET)

main23537-72010

9034116094

main90341-16094

9161160840

main91611-60840

9411040800

main94110-40800

37 parts on this diagram · 1 diagram in section
