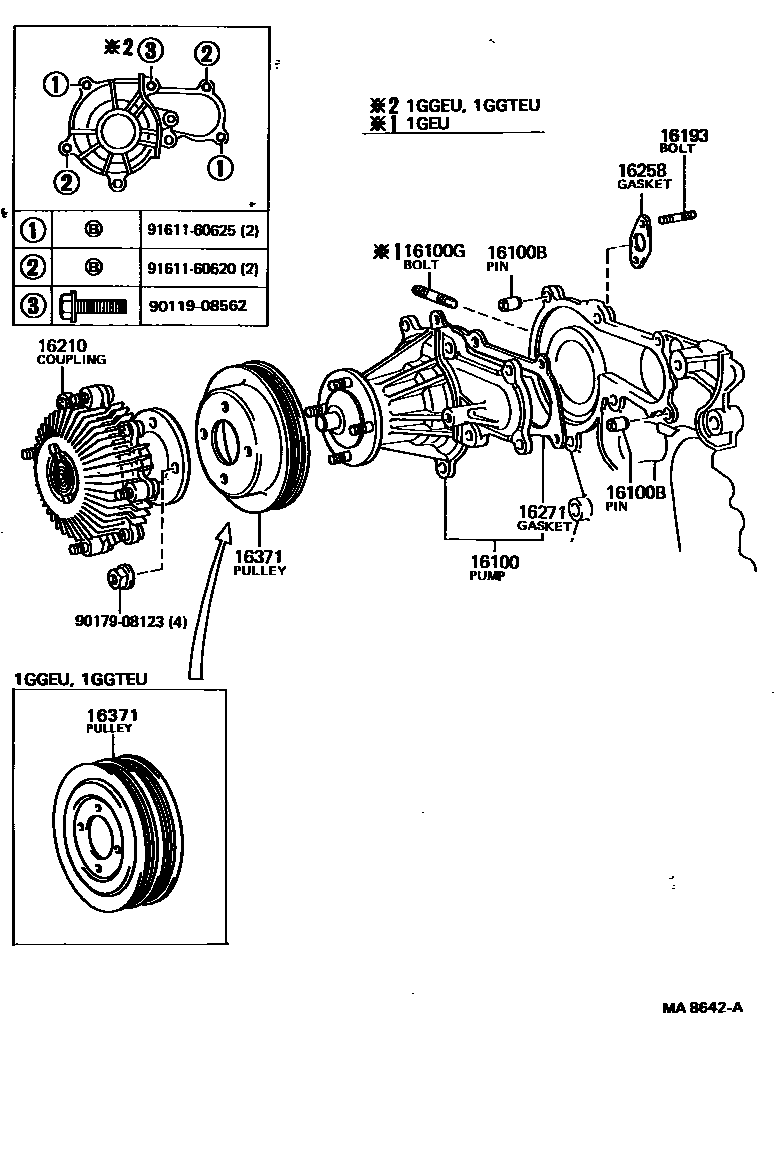

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-49745iMTEU..MX71198408-198510

sub16100-49746

main16100-59137i2L#..LX7#198408-198808

sub16100-59138

main16100-69075i1SU..SX70198408-198712

sub16100-69076

sub90179-06045

main16100-69076i1SU..SX70198712-198808

sub16100-69077

main16100-79015i1GEU..GX7#198408-198808

main16100-79025i1GGEU..GX71198408-198808

main16100-79035i2Y#,3YPU..YX7#198408-198704

sub16100-79036

main16100-79036i2YJ,3YPU..YX7#198704-198808

sub16100-79037

main16100-79065i1GGTEU..GX71198510-198808

16100BPIN, RING(FOR WATER PUMP SET)

main16185-70010i1GEU,1GG#..GX7#198408-198808

16100GBOLT, STUD(FOR WATER PUMP SET)

main16194-70010i1GEU..GX7#198408-198808

main90116-08111iMTEU..MX71198408-198510

L=57,S=13&13

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010i1GEU,1GG#..GX7#198408-198808

main16193-41031iMTEU..MX71198408-198510

L=42,S=16&20

main16193-45100iMTEU..MX71198408-198510

main90029-01500i1SU..SX70198408-198808

16210COUPLING ASSY, FLUID

main16210-41180iMTEU..MX71198408-198510

main16210-45110i1GGEU..GX71198408-198808

main16210-54060i2L#..LX7#198408-198808

main16210-63010i1SU..SX70198408-198808

main16210-70021i1GEU..GX7#198408-198506

sub16210-70022

main16210-70022i1GEU..GX7#198506-198808

main16210-72010i2Y#,3YPU..YX7#198408-198808

main16210-88340i1GGTEU..GX71198510-198808

16258GASKET(FOR HEATER RETURN)

main16258-15011i1SU..SX70198408-198808

16271GASKET, WATER PUMP

main16124-70010i1GEU..GX7#198408-198808

sub16124-70011

main16124-88300i1GG#..GX71198408-198808

sub16124-70041

main16271-41011iMTEU..MX71198408-198510

sub16271-43010

main16271-54012i2L#..LX7#198408-198808

sub16271-54013

16371PULLEY, FAN

main16173-43040iMTEU..MX71198408-198510

main16173-63010i1SU..SX70198408-198808

main16371-54020i2L#..LX7#198408-198808

main16371-70020i1GEU..GX7#198408-198808

main16371-70050i1GGEU..GX71198608-198808

sub16371-88301

main16371-71010i2YJ..YX76198411-198808

sub16371-71021

main16371-73011i2YPU,3YPU..YX70,72198408-198808

main16371-88301i1GG#..GX71198408-198808

9011908562

main90119-08562

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625
