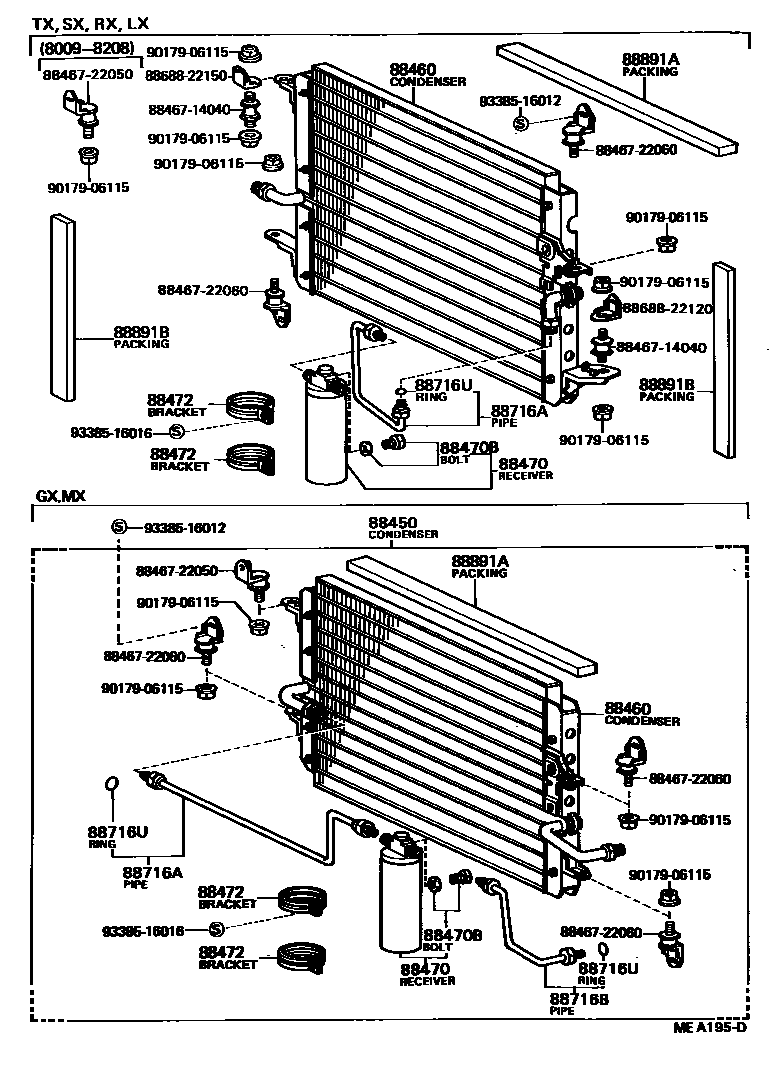

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0004 1 0005 1 0006 1

88450CONDENSER ASSY, W/RECEIVER

main88460-22150iGX61,MX61,63..GD198009-198208

main88460-22190iGX61,MX61..GD198208-198407

88460CONDENSER ASSY, COOLER

main88460-22160iLX6#,RX6#,TX6#198009-198208

main88460-22170iGX6#,MX6#198009-198208

main88460-22210iGX6#,MX6#198208-198407

main88460-22220iLX6#,SX60,TX67198208-198407

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

88470BBOLT, FUSE

main90099-04579iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

sub88475-12020

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22330iMX6#..DLX,LGT198009-198407

main88716-22350iLX60,67,RX6#,SX60,TX6#198009-198407

main88716-22360iGX61,MX61,63..GD198009-198407

main88716-22420iLX65198208-198407

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-22340iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

main90099-14044iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

88891APACKING A (FOR COOLER)

main88578-22080iLX6#,RX6#,SX60,TX6#198009-198407

main88578-22100iGX6#,MX6#198009-198407

88891BPACKING B (FOR COOLER)

main88578-22090iLX6#,RX6#,SX60,TX6#198009-198407

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846722050CUSHION, COOLER CONDENSER, NO.1

main88467-22050

8846722060CUSHION, COOLER CONDENSER, NO.1

main88467-22060

8868822120BRACKET, COOLER DIAPHRAGM

main88688-22120

8868822150BRACKET, COOLER DIAPHRAGM

main88688-22150

9017906115

main90179-06115

9338516012

main93385-16012

9338516016

main93385-16016

18 parts on this diagram · 5 diagrams in section
