27751BRACKET, GENERATOR REGULATOR

main27751-70010i21RU,13T#,1SU..RX60,SX60,TX6#198009-198407

82600FFUSE, FUSE BLOCK

main90982-09001iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

main90982-09003iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

main90982-09004iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

main90982-09005iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-20100iGX6#,LX65,MX61198310-198407

main82660-22071iLX60,67,MX60,RX60,SX60,TX6#198009-198310

SUMITOMO

sub82660-22150

sub90987-02006

main82660-22080iLX60,67,MX60,RX60,SX60,TX6#198009-198310

YAZAKI

sub82660-22160

sub90987-02006

main82660-22091iGX6#,LX65,MX61,63,RX63198009-198310

SUMITOMO

sub82660-20100

sub90987-02006

main82660-22100iGX6#,LX65,MX61,63,RX63198009-198310

YAZAKI

sub82660-20100

sub90987-02006

main82660-22150iLX60,67,MX60,SX60,TX67198310-198407

SUMITOMO

sub82660-22160

main82660-22160iLX60,67,MX60,SX60,TX67198310-198407

YAZAKI

82661COVER, RELAY BLOCK, NO.1

main82661-20020iGX6#,LX6#,MX6#,SX60,TX67198310-198407

UPR

main82661-22011iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

UPR,SUMITOMO

sub82661-22070

main82661-22030iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

LWR,SUMITOMO

main82661-22040iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

UPR,YAZAKI

main82661-22060iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

LWR,YAZAKI

main82661-22070iGX6#,LX6#,MX6#,SX60,TX67198208-198310

UPR,SUMITOMO

sub82661-20020

main82661-22080iGX6#,LX6#,MX6#,SX60,TX67198208-198310

UPR,YAZAKI

sub82661-20020

83391SWITCH, VACUUM

main83391-12091iTX67198208-198407

MARK=400B

main83391-14010iTX6#198009-198208

main83391-14061iMX60;SX60..CBR198208-198407

MARK=85M

main83391-14070iSX60..CBR198208-198407

MARK=330B

main83391-20021iMX60198011-198208

main83391-20021iSX60..LPG198302-198407

*30,MARK=80M

main83391-20030iSX60..LPG198302-198407

*30,MARK=100B

83399BRACKET, VACUUM SWITCH

main83399-20070iMX60198011-198407

sub83399-27040

main83399-20110iSX60..LPG198302-198407

*30

main83399-22011iTX67198208-198407

main83399-22050iTX6#198009-198208

sub83399-22011

main83399-22060iSX60..CBR198208-198407

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

DENSO

sub83420-20020

main83420-20020iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iRX60,TX6#198009-198407

sub83530-14030

main83530-12040iSX60198310-198407

sub83530-14040

main83530-14010iRX60198112-198208

sub83530-14030

main83530-14020iMX61..GD198308-198407

W/*DS

sub83530-30080

main83530-30042iGX61..GD198208-198407

W/*DS

sub83530-30050

main83530-30042iGX60,MX60..DLX,LE198009-198208

sub83530-30050

main83530-36011iLX6#198009-198407

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-60010iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198009-198407

84540SWITCH ASSY, NEUTRAL START

main84540-14080iLX60,65,MX61,SX60..4FC198109-198407

main84540-14090iMX60,TX67..3FC198208-198407

main84540-22161iMX60,RX60,TX6#..ATM198009-198208

sub84540-14090

main84540-24010iGX6#..ATM198208-198407

sub84540-24011

main84540-30191iGX6#,LX60,MX63..ATM198009-198109

sub84540-14080

85909ABRACKET SUB-ASSY, RELAY BLOCK

main85909-22010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

85915RELAY, MAIN

main90987-02002iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198110-198407

sub90987-02004

main90987-02004iGX6#,LX6#,MX6#,RX6#,TX6#198009-198110

85916RELAY, LIGHT CONTROL

main90987-01003iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198310

main90987-01003iGX6#,LX6#,MX6#,SX60,TX67198310-198407

TAIL

main90987-02006iGX6#,LX6#,MX6#,SX60,TX67198310-198407

HEAD

89620IGNITER ASSY

main89620-22150iGX6#198009-198102

sub89620-30H91

main89620-22151iGX6#198102-198208

sub89620-30H91

main89620-22160iTX60198009-198208

main89620-22190iMX60198011-198208

main89620-22210iRX63198009-198208

sub89620-10H90

main89620-22230iMX63198009-198208

main89620-22240iRX60198009-198108

main89620-22241iRX60198108-198208

main89620-22260iTX67198011-198407

sub89620-22220

main89620-22270iGX61..TWC198208-198407

sub89620-30130

main89620-22280iGX6#..EFI198208-198407

sub89620-22H92

main89620-22290iMX60198208-198308

main89620-22291iMX60198308-198407

sub89620-22H92

main89620-22330iMX61198308-198407

main89620-30110iMX61198110-198308

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906067

main90119-06067

9043018007

main90430-18007

9046108187

main90461-08187

9046112223

main90461-12223

9046208008

main90462-08008

9046400073

main90464-00073

9161160812

main91611-60812

9165140612

main91651-40612

9165540616

main91655-40616

9338516025

main93385-16025

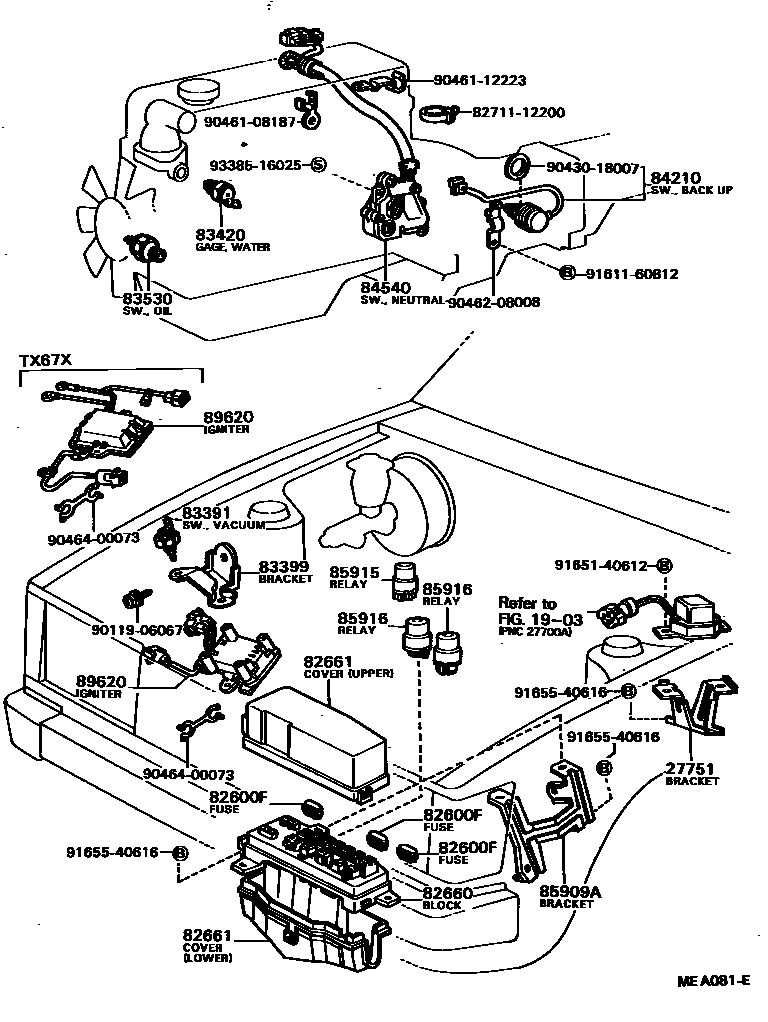

26 parts on this diagram · 14 diagrams in section
