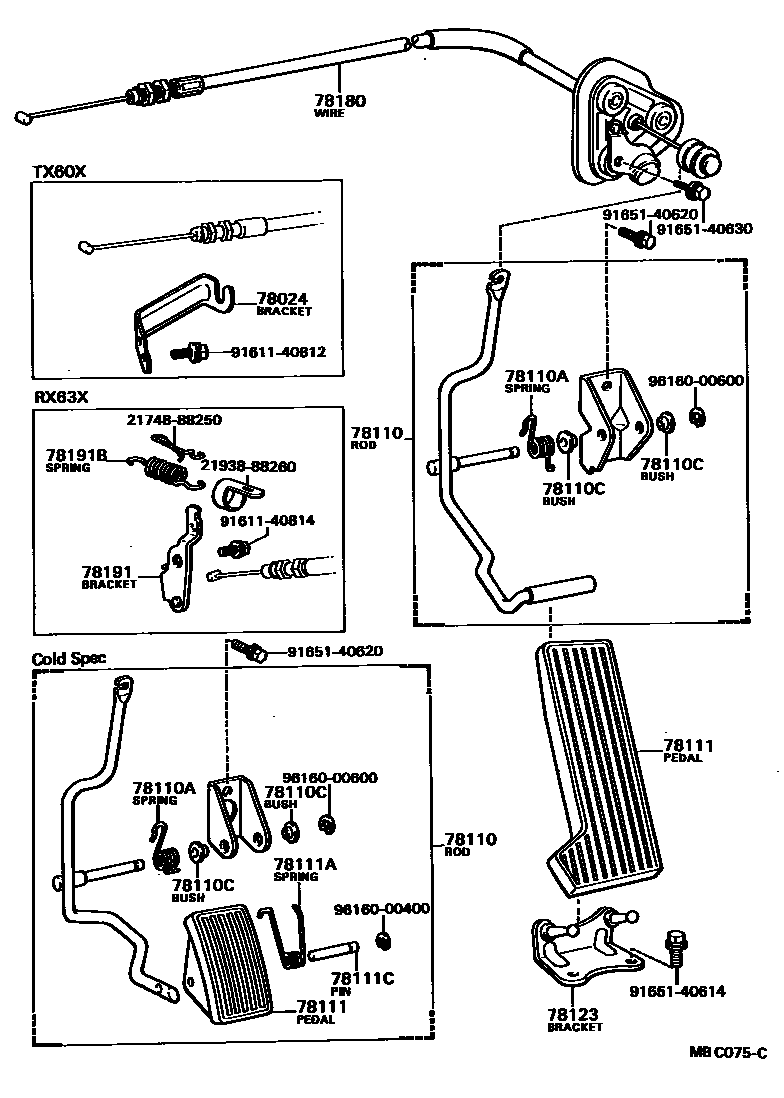

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-30010iMX60198011-198407

main78024-30040iLX65198208-198407

main78184-12050iTX6#198009-198407

main78184-20060iSX60..LPG198302-198407

*30

main78184-22070iGX6#..EFI198009-198407

main78184-22081iRX60198009-198101

main78184-22082iRX60198101-198208

main78184-22100iGX61..TWC198208-198407

main78184-22120iSX60198208-198407

main78184-30070iMX61,63198009-198407

78110ROD ASSY, ACCELERATOR PEDAL

main78120-22070iGX6#,MX6#198009-198208

main78120-22080iRX63,TX6#198009-198208

main78120-22090iGX6#,MX6#198009-198208

COLD SPEC

main78120-22090iGX6#,MX6#198208-198407

main78120-22100iTX67198208-198407

main78120-22100iRX63,TX6#198009-198208

COLD SPEC

main78120-22140iLX6#,RX60198009-198208

main78120-22150iLX6#198208-198407

main78120-22150iLX6#,RX60198009-198208

COLD SPEC

main78120-22190iSX60..5F198208-198407

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18006iGX6#,LX6#,MX6#,RX60198009-198208

main90508-20027iRX63,TX6#198009-198208

main90508-20030iRX63,TX6#198009-198208

COLD SPEC

main90508-20030iTX67198208-198407

main90508-23037iSX60..4FC198208-198212

main90508-23037iGX6#,LX6#,MX6#,RX60198009-198208

COLD SPEC

main90508-23076iSX60..4FC198212-198407

main90508-26056iSX60..5F198208-198212

main90508-26061iSX60..5F198212-198407

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-08014iTX67198305-198407

main90386-08164iRX63,TX6#198009-198407

78111PEDAL, ACCELERATOR

main78111-12100iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

COLD SPEC

main78111-12100iGX6#,LX6#,MX6#,SX60,TX67198208-198407

main78111-30080iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

sub78111-30081

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23003iGX6#,LX6#,MX6#,RX6#,TX6#198009-198407

COLD SPEC

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78114-22040iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

78180WIRE ASSY, ACCELERATOR

main78180-22091iTX6#198009-198407

main78180-22161iMX63198009-198208

main78180-22171iRX63198009-198208

main78180-22181iRX60198009-198208

main78180-22191iLX60,67198009-198407

main78180-22201iMX60198011-198407

main78180-22280iGX6#..EFI198009-198407

main78180-22300iMX61198110-198407

main78180-22320iLX65198208-198407

main78180-22380iGX61..TWC198208-198407

main78180-22390iSX60198208-198407

main78180-22420iSX60..LPG198302-198407

*30

78191BRACKET, ACCELERATOR WIRE SUPPORT

main21524-88261iRX63198009-198107

sub21524-88262

main21524-88262iRX63198107-198208

78191BSPRING, TENSION (FOR ACCELERATOR WIRE SUPPORT BRACKET)

main90506-10025iRX63198101-198208

main90506-12025iRX63198009-198101

2174888250DAMPER, THROTTLE RETURN SPRING

main21748-88250

2193888260DAMPER, RETURN SPRING

main21938-88260

9161140812

main91611-40812

9161140814

main91611-40814

9165140614

main91651-40614

9165140620

main91651-40620

9165140630

main91651-40630

9616000400

main96160-00400

9616000600

main96160-00600

20 parts on this diagram · 6 diagrams in section
