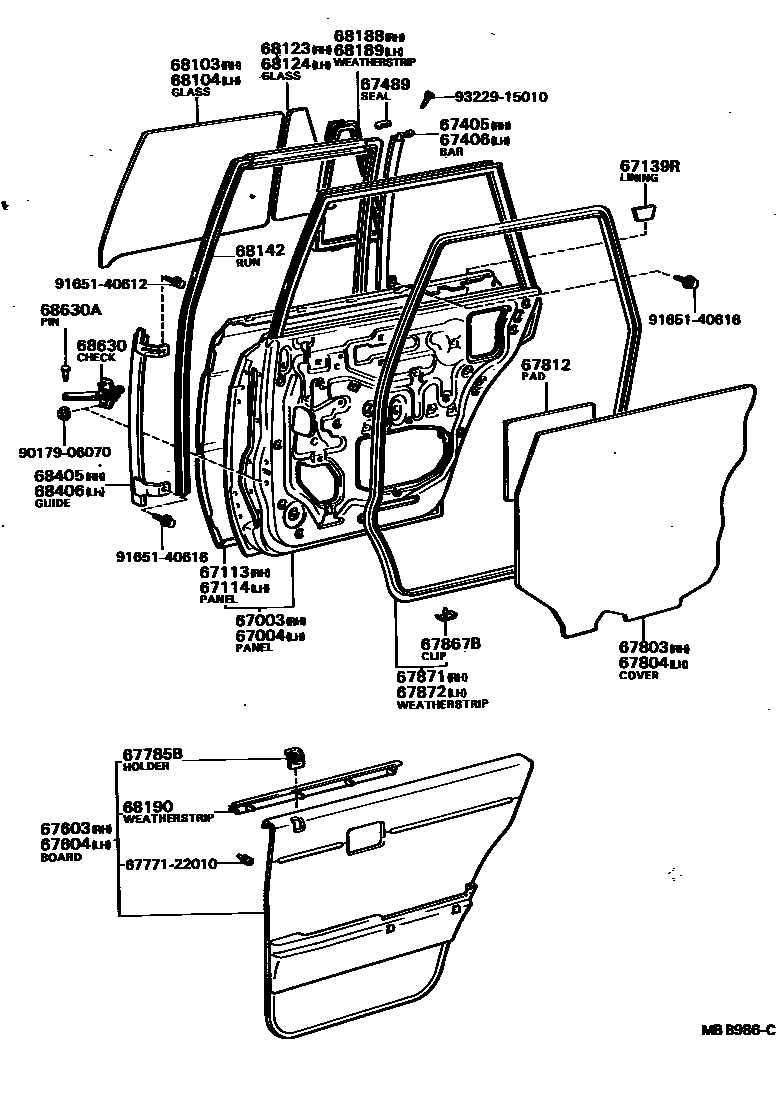

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22110iGX6#,MX63,RX60..SED..(GD,GR,LG,LGT)198009-198103

W/*PW

sub67003-22150

main67003-22110iLX60..GL198009-198103

*EXT,W/*PW

sub67003-22150

main67003-22150iGX6#,LX60,MX60,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LGT,STD)198009-198206

sub67003-22151

main67003-22151iGX6#,LX60,65,MX6#,SX60,TX60..SED198206-198407

sub67003-22181

main67003-91624iGX60,LX67,TX67..V,WG198011-198206

sub67003-91631

main67003-91631iGX60,LX67,TX67..V,WG198206-198407

sub67003-91636

main67003-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22120iGX6#,MX63,RX60..SED..(GD,GR,LG,LGT)198009-198103

W/*PW

sub67004-22160

main67004-22120iGX6#,MX63,RX60..SED..(GD,GR,LG,LGT)198009-198103

*EXT,W/*PW

sub67004-22160

main67004-22160iGX6#,LX60,MX60,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LGT,STD)198009-198206

sub67004-22161

main67004-22161iGX6#,LX60,65,MX6#,SX60,TX60..SED198206-198407

sub67004-22191

main67004-91624iGX60,LX67,TX67..V,WG198011-198206

sub67004-91631

main67004-91631iGX60,LX67,TX67..V,WG198206-198407

sub67004-91636

main67004-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

67113PANEL, REAR DOOR, OUTER RH

main67113-22080iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

sub67113-22090

main67113-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

67114PANEL, REAR DOOR, OUTER LH

main67114-22080iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

sub67114-22090

main67114-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-12010iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-22040iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

main67407-91601iGX60,LX67,TX67..V,WG198011-198407

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-22040iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

main67408-91601iGX60,LX67,TX67..V,WG198011-198407

67489SEAL, REAR DOOR DIVISION BAR

main67487-22020iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

RH

main67488-22020iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

LH

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-22480-01iRX60..SED..GR198009-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67630-22480-04iGX60..WG198009-198208

W/*PW,BLUE,BLUE,TRIM8#

main67630-22480-06iRX60..SED..GR198009-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22481-02iGX60198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main67630-22481-04iGX60198208-198407

W/*PW,BLUE,BLUE,TRIM8#

main67630-22481-06iGX60198208-198407

W/*PW,D-BROWN,BROWN,TRIM4#

main67630-22490-01iGX61..SED..LGT198009-198110

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67630-22490-04iGX61..SED..LGT198009-198110

W/*PW,BLUE,BLUE,TRIM8#

main67630-22490-06iGX61..SED..LGT198009-198110

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22491-01iGX61,MX61..SED..LGT198110-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67630-22491-04iGX61,MX61..SED..LGT198110-198208

W/*PW,BLUE,BLUE,TRIM8#

main67630-22491-06iGX61,MX61..SED..LGT198110-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22530-04iGX60..SED..LE198109-198207

PRIVATE EDITION,BLUE,BLUE,TRIM8#

main67630-22530-06iGX60..SED..LE198109-198207

PRIVATE EDITION,BROWN,BROWN,TRIM4#

main67630-22550-01iLX6#,MX60,TX6#..DLX,STD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-22550-02iLX60,67,MX60,SX60,TX67..DLX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22550-04iLX6#,MX60,TX6#..DLX198009-198208

BLUE,BLUE,TRIM8#

main67630-22550-06iLX6#,MX60,TX6#..DLX198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22550-14iLX60,67,MX60,SX60,TX67..DLX,STD198208-198407

BLUE,BLUE,TRIM8#

main67630-22550-16iLX60,67,MX60,SX60,TX67..DLX198208-198407

D-BROWN,BROWN,TRIM4#

main67630-22560-01iLX60,RX60,TX6#..(SED,V)..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

sub67630-22770

main67630-22560-04iLX60,RX60,TX6#..(SED,V)..GL198009-198208

BLUE,BLUE,TRIM8#

sub67630-22770

main67630-22560-06iLX60,RX60,TX6#..(SED,V)..GL198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

sub67630-22770

main67630-22561-02iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198208-198304

DEEP MAROON,RED/MAROON,TRIM3#

sub67630-22770

main67630-22561-04iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198208-198304

BLUE,BLUE,TRIM8#

sub67630-22770

main67630-22561-06iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198208-198304

D-BROWN,BROWN,TRIM4#

sub67630-22770

main67630-22570-01iGX60,RX60..(SED,WG)..(GR,LE)198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-22570-04iGX60,RX60..(SED,WG)..(GR,LE)198009-198208

BLUE,BLUE,TRIM8#

main67630-22570-06iGX60,RX60..(SED,WG)..(GR,LE)198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22571-02iGX60,LX65,SX60..(SED,WG)..(GR,LE)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22571-04iGX60,LX65,SX60..(SED,WG)..(GR,LE)198208-198407

BLUE,BLUE,TRIM8#

main67630-22571-06iGX60,LX65,SX60..(SED,WG)..(GR,LE)198208-198407

D-BROWN,BROWN,TRIM4#

main67630-22580-01iLX60..GL198009-198208

*EXT,BLACK & GRAY,BLACK,TRIM2#

main67630-22580-01iLX60..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-22580-04iLX60..GL198009-198208

BLUE,BLUE,TRIM8#

main67630-22580-04iGX60..SED..LG198009-198208

*EXT,BLUE,BLUE,TRIM8#

main67630-22580-06iLX60..GL198009-198208

*EXT,D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22580-06iGX60..SED..LG198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22581-02iGX61..SED..LG198208-198407

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

main67630-22581-02iLX60,65..GL,LE198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22581-04iLX60,65..GL,LE198208-198407

BLUE,BLUE,TRIM8#

main67630-22581-04iLX60,65..GL,LE198208-198407

*EXT,BLUE,BLUE,TRIM8#

main67630-22581-06iLX60,65..GL,LE198208-198407

D-BROWN,BROWN,TRIM4#

main67630-22581-06iLX60,65..GL,LE198208-198407

*EXT,D-BROWN,BROWN,TRIM4#

main67630-22590-01iGX61,RX63..SED..(GT,LGT)198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-22590-04iRX63..SED198009-198208

BLUE,BLUE,TRIM8#

main67630-22590-06iGX61,RX63..SED..(GT,LGT)198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22610-01iGX61,MX61,63..SED..GD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-22610-04iGX61,MX61,63..SED..GD198009-198208

BLUE,BLUE,TRIM8#

main67630-22610-06iGX61,MX61,63..SED..GD198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22611-02iGX61,MX61..SED..GD..(EFI,TBO)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22611-04iGX61,MX61..SED..GD..(EFI,TBO)198208-198308

BLUE,BLUE,TRIM8#

main67630-22611-06iGX61,MX61..SED..GD..(EFI,TBO)198208-198308

D-BROWN,BROWN,TRIM4#

main67630-22611-14iGX61,MX61..SED..GD..(EFI,TBO)198308-198407

BLUE,BLUE,TRIM8#

main67630-22611-16iGX61,MX61..SED..GD..(EFI,TBO)198308-198407

D-BROWN,BROWN,TRIM4#

main67630-22640-02iGX61..SED..TWC198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

sub67630-22641

main67630-22640-04iGX61..SED..TWC198208-198308

BLUE,BLUE,TRIM8#

sub67630-22641

main67630-22640-06iGX61..SED..TWC198208-198308

D-BROWN,BROWN,TRIM4#

sub67630-22641

main67630-22640-12iGX61..SED..TWC198308-198402

DEEP MAROON,RED/MAROON,TRIM3#

sub67630-22641

main67630-22640-14iGX61..SED..TWC198308-198402

BLUE,BLUE,TRIM8#

sub67630-22641

main67630-22640-16iGX61..SED..TWC198308-198402

D-BROWN,BROWN,TRIM4#

sub67630-22641

main67630-22641-02iGX61..SED..TWC198402-198407

DEEP MAROON,DEEP MAROON,TRIM3#

main67630-22641-04iGX61..SED..TWC198402-198407

BLUE,BLUE,TRIM8#

main67630-22641-06iGX61..SED..TWC198402-198407

D-BROWN,DARK BROWN,TRIM4#

main67630-22770-02iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198304-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22770-04iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198304-198407

BLUE,BLUE,TRIM8#

main67630-22770-06iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198304-198407

D-BROWN,BROWN,TRIM4#

main67630-22800iGX61..SED..GD198309-198407

LIMITED

main67630-95800-01iGX61,MX61..HT..LGT198110-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67630-95800-04iGX61,MX61..HT..LGT198110-198208

W/*PW,BLUE,BLUE,TRIM8#

main67630-95800-06iGX61,MX61..HT..LGT198110-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67630-95801-01iRX60,TX60..HT..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-95801-04iRX60,TX60..HT..GL198009-198208

BLUE,BLUE,TRIM8#

main67630-95801-06iRX60,TX60..HT..GL198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-95802-01iGX60,RX60..HT..(GR,LE)198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-95802-04iGX60,RX60..HT..(GR,LE)198009-198208

BLUE,BLUE,TRIM8#

main67630-95802-06iGX60,RX60..HT..(GR,LE)198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-95803-01iGX61,RX63..HT..(GT,LGT)198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-95803-04iGX61,RX63..HT..(GT,LGT)198009-198208

BLUE,BLUE,TRIM8#

main67630-95803-06iRX63..HT198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-95804-01iGX61,MX61,63..HT..GD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-95804-04iGX61,MX61,63..HT..GD198009-198208

BLUE,BLUE,TRIM8#

main67630-95804-06iGX61,MX61,63..HT..GD198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-95805-01iGX60..HT..LG198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-95805-04iGX60..HT..LG198009-198208

BLUE,BLUE,TRIM8#

main67630-95805-06iGX60..HT..LG198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-95806-01iRX60..HT..GR198009-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67630-95806-04iRX60..HT..GR198009-198208

W/*PW,BLUE,BLUE,TRIM8#

main67630-95806-06iRX60..HT..GR198009-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67630-95807-01iGX61..HT..LGT198009-198110

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67630-95807-04iGX61..HT..LGT198009-198110

W/*PW,BLUE,BLUE,TRIM8#

main67630-95807-06iGX61..HT..LGT198009-198110

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67630-95810-04iGX60..HT..LE198109-198207

PRIVATE EDITION,BLUE,BLUE,TRIM8#

main67630-95810-06iGX60..HT..LE198109-198207

PRIVATE EDITION,BROWN,BROWN,TRIM4#

main67630-95811-02iGX61,MX61,SX60..HT..(GL,LE,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-95811-04iGX61,MX61,SX60..HT..(GL,LE,LGT)198208-198407

BLUE,BLUE,TRIM8#

main67630-95811-06iGX61,MX61,SX60..HT..(GL,LE,LGT)198208-198407

D-BROWN,BROWN,TRIM4#

main67630-95812-02iSX60..HT..GR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-95812-04iSX60..HT..GR198208-198407

BLUE,BLUE,TRIM8#

main67630-95812-06iSX60..HT..GR198208-198407

D-BROWN,BROWN,TRIM4#

main67630-95813-02iGX61..HT..LG198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-95813-04iGX61..HT..LG198208-198407

BLUE,BLUE,TRIM8#

main67630-95813-06iGX61..HT..LG198208-198407

D-BROWN,BROWN,TRIM4#

main67630-95815-02iGX61,MX61..HT..GD..(EFI,TBO)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-95815-04iGX61,MX61..HT..GD..(EFI,TBO)198208-198308

BLUE,BLUE,TRIM8#

main67630-95815-06iGX61,MX61..HT..GD..(EFI,TBO)198208-198308

D-BROWN,BROWN,TRIM4#

main67630-95815-14iGX61,MX61..HT..GD..(EFI,TBO)198308-198407

BLUE,BLUE,TRIM8#

main67630-95815-16iGX61,MX61..HT..GD..(EFI,TBO)198308-198407

D-BROWN,BROWN,TRIM4#

main67630-95817-02iGX61..HT..TWC198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

sub67630-95822

main67630-95817-04iGX61..HT..TWC198208-198308

BLUE,BLUE,TRIM8#

sub67630-95822

main67630-95817-06iGX61..HT..TWC198208-198308

D-BROWN,BROWN,TRIM4#

sub67630-95822

main67630-95817-12iGX61..HT..TWC198308-198402

DEEP MAROON,RED/MAROON,TRIM3#

sub67630-95822

main67630-95817-14iGX61..HT..TWC198308-198402

BLUE,BLUE,TRIM8#

sub67630-95822

main67630-95817-16iGX61..HT..TWC198308-198402

D-BROWN,BROWN,TRIM4#

sub67630-95822

main67630-95821iGX61..HT..GD198309-198407

LIMITED

main67630-95822-02iGX61..HT..TWC198402-198407

DEEP MAROON,DEEP MAROON,TRIM3#

main67630-95822-04iGX61..HT..TWC198402-198407

BLUE,BLUE,TRIM8#

main67630-95822-06iGX61..HT..TWC198402-198407

D-BROWN,DARK BROWN,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-22480-01iRX60..SED..GR198009-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67640-22480-04iGX60..WG198009-198208

W/*PW,BLUE,BLUE,TRIM8#

main67640-22480-06iRX60..SED..GR198009-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22481-02iGX60198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main67640-22481-04iGX60198208-198407

W/*PW,BLUE,BLUE,TRIM8#

main67640-22481-06iGX60198208-198407

W/*PW,D-BROWN,BROWN,TRIM4#

main67640-22490-01iGX61..SED..LGT198009-198110

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67640-22490-04iGX61..SED..LGT198009-198110

W/*PW,BLUE,BLUE,TRIM8#

main67640-22490-06iGX61..SED..LGT198009-198110

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22491-01iGX61,MX61..SED..LGT198110-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67640-22491-04iGX61,MX61..SED..LGT198110-198208

W/*PW,BLUE,BLUE,TRIM8#

main67640-22491-06iGX61,MX61..SED..LGT198110-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22530-04iGX60..SED..LE198109-198207

PRIVATE EDITION,BLUE,BLUE,TRIM8#

main67640-22530-06iGX60..SED..LE198109-198207

PRIVATE EDITION,BROWN,BROWN,TRIM4#

main67640-22550-01iLX6#,MX60,TX6#..DLX,STD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-22550-02iLX60,67,MX60,SX60,TX67..DLX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22550-04iLX6#,MX60,TX6#..DLX198009-198208

BLUE,BLUE,TRIM8#

main67640-22550-06iLX6#,MX60,TX6#..DLX198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22550-14iLX60,67,MX60,SX60,TX67..DLX,STD198208-198407

BLUE,BLUE,TRIM8#

main67640-22550-16iLX60,67,MX60,SX60,TX67..DLX198208-198407

D-BROWN,BROWN,TRIM4#

main67640-22560-01iLX60,RX60,TX6#..(SED,V)..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

sub67640-22770

main67640-22560-04iLX60,RX60,TX6#..(SED,V)..GL198009-198208

BLUE,BLUE,TRIM8#

sub67640-22770

main67640-22560-06iLX60,RX60,TX6#..(SED,V)..GL198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

sub67640-22770

main67640-22561-02iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198208-198304

DEEP MAROON,RED/MAROON,TRIM3#

sub67640-22770

main67640-22561-04iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198208-198304

BLUE,BLUE,TRIM8#

sub67640-22770

main67640-22561-06iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198208-198304

D-BROWN & GREIGE,BROWN,TRIM4#

sub67640-22770

main67640-22570-01iGX60,RX60..(SED,WG)..(GR,LE)198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-22570-04iGX60,RX60..(SED,WG)..(GR,LE)198009-198208

BLUE,BLUE,TRIM8#

main67640-22570-06iGX60,RX60..(SED,WG)..(GR,LE)198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22571-02iGX60,LX65,SX60..(SED,WG)..(GR,LE)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22571-04iGX60,LX65,SX60..(SED,WG)..(GR,LE)198208-198407

BLUE,BLUE,TRIM8#

main67640-22571-06iGX60,LX65,SX60..(SED,WG)..(GR,LE)198208-198407

D-BROWN,BROWN,TRIM4#

main67640-22580-01iLX60..GL198009-198208

*EXT,BLACK & GRAY,BLACK,TRIM2#

main67640-22580-01iLX60..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-22580-04iLX60..GL198009-198208

*EXT,BLUE,BLUE,TRIM8#

main67640-22580-04iGX60..SED..LG198009-198208

BLUE,BLUE,TRIM8#

main67640-22580-06iLX60..GL198009-198208

*EXT,D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22580-06iGX60..SED..LG198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22581-02iLX60,65..GL,LE198208-198407

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

main67640-22581-02iLX60,65..GL,LE198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22581-04iLX60,65..GL,LE198208-198407

*EXT,BLUE,BLUE,TRIM8#

main67640-22581-04iGX61..SED..LG198208-198407

BLUE,BLUE,TRIM8#

main67640-22581-06iLX60,65..GL,LE198208-198407

*EXT,D-BROWN,BROWN,TRIM4#

main67640-22581-06iLX60,65..GL,LE198208-198407

D-BROWN,BROWN,TRIM4#

main67640-22590-01iRX63..SED198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-22590-04iGX61,RX63..SED..(GT,LGT)198009-198208

BLUE,BLUE,TRIM8#

main67640-22590-06iGX61,RX63..SED..(GT,LGT)198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22610-01iGX61,MX61,63..SED..GD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-22610-04iGX61,MX61,63..SED..GD198009-198208

BLUE,BLUE,TRIM8#

main67640-22610-06iGX61,MX61,63..SED..GD198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22611-02iGX61,MX61..SED..GD..(EFI,TBO)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22611-04iGX61,MX61..SED..GD..(EFI,TBO)198208-198308

BLUE,BLUE,TRIM8#

main67640-22611-06iGX61,MX61..SED..GD..(EFI,TBO)198208-198308

D-BROWN,BROWN,TRIM4#

main67640-22611-14iGX61,MX61..SED..GD..(EFI,TBO)198308-198407

BLUE,BLUE,TRIM8#

main67640-22611-16iGX61,MX61..SED..GD..(EFI,TBO)198308-198407

D-BROWN,BROWN,TRIM4#

main67640-22650-02iGX61..SED..TWC198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

sub67640-22651

main67640-22650-04iGX61..SED..TWC198208-198308

BLUE,BLUE,TRIM8#

sub67640-22651

main67640-22650-06iGX61..SED..TWC198208-198308

D-BROWN,BROWN,TRIM4#

sub67640-22651

main67640-22650-12iGX61..SED..TWC198308-198402

DEEP MAROON,RED/MAROON,TRIM3#

sub67640-22651

main67640-22650-14iGX61..SED..TWC198308-198402

BLUE,BLUE,TRIM8#

sub67640-22651

main67640-22650-16iGX61..SED..TWC198308-198402

D-BROWN,BROWN,TRIM4#

sub67640-22651

main67640-22651-02iGX61..SED..TWC198402-198407

DEEP MAROON,DEEP MAROON,TRIM3#

main67640-22651-04iGX61..SED..TWC198402-198407

BLUE,BLUE,TRIM8#

main67640-22651-06iGX61..SED..TWC198402-198407

D-BROWN,DARK BROWN,TRIM4#

main67640-22770-02iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198304-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22770-04iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198304-198407

BLUE,BLUE,TRIM8#

main67640-22770-06iGX61,LX60,MX61,SX60,TX67..(SED,V)..(GL,LE,LGT)198304-198407

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22800iGX61..SED..GD198401-198407

LIMITED,W/*DM

main67640-22800iGX61..SED..GD198309-198407

LIMITED

main67640-95800-01iGX61,MX61..HT..LGT198110-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67640-95800-04iGX61,MX61..HT..LGT198110-198208

W/*PW,BLUE,BLUE,TRIM8#

main67640-95800-06iGX61,MX61..HT..LGT198110-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67640-95801-01iRX60,TX60..HT..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-95801-04iRX60,TX60..HT..GL198009-198208

BLUE,BLUE,TRIM8#

main67640-95801-06iRX60,TX60..HT..GL198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-95802-01iGX60,RX60..HT..(GR,LE)198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-95802-04iGX60,RX60..HT..(GR,LE)198009-198208

BLUE,BLUE,TRIM8#

main67640-95802-06iGX60,RX60..HT..(GR,LE)198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-95803-01iGX61,RX63..HT..(GT,LGT)198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-95803-04iRX63..HT198009-198208

BLUE,BLUE,TRIM8#

main67640-95803-06iRX63..HT198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-95804-01iGX61,MX61,63..HT..GD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-95804-04iGX61,MX61,63..HT..GD198009-198208

BLUE,BLUE,TRIM8#

main67640-95804-06iGX61,MX61,63..HT..GD198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-95805-01iGX60..HT..LG198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-95805-04iGX60..HT..LG198009-198208

BLUE,BLUE,TRIM8#

main67640-95805-06iGX60..HT..LG198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-95806-01iRX60..HT..GR198009-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67640-95806-04iRX60..HT..GR198009-198208

W/*PW,BLUE,BLUE,TRIM8#

main67640-95806-06iRX60..HT..GR198009-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67640-95807-01iGX61..HT..LGT198009-198110

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67640-95807-04iGX61..HT..LGT198009-198110

W/*PW,BLUE,BLUE,TRIM8#

main67640-95807-06iGX61..HT..LGT198009-198110

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67640-95810-04iGX60..HT..LE198109-198207

PRIVATE EDITION,BLUE,BLUE,TRIM8#

main67640-95810-06iGX60..HT..LE198109-198207

PRIVATE EDITION,BROWN,BROWN,TRIM4#

main67640-95811-02iGX61,MX61,SX60..HT..(GL,LE,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-95811-04iGX61,MX61,SX60..HT..(GL,LE,LGT)198208-198407

BLUE,BLUE,TRIM8#

main67640-95811-06iGX61,MX61,SX60..HT..(GL,LE,LGT)198208-198407

D-BROWN,BROWN,TRIM4#

main67640-95812-02iSX60..HT..GR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-95812-04iSX60..HT..GR198208-198407

BLUE,BLUE,TRIM8#

main67640-95812-06iSX60..HT..GR198208-198407

D-BROWN,BROWN,TRIM4#

main67640-95813-02iGX61..HT..LG198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-95813-04iGX61..HT..LG198208-198407

BLUE,BLUE,TRIM8#

main67640-95813-06iGX61..HT..LG198208-198407

D-BROWN,BROWN,TRIM4#

main67640-95815-02iGX61,MX61..HT..GD..(EFI,TBO)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-95815-04iGX61,MX61..HT..GD..(EFI,TBO)198208-198308

BLUE,BLUE,TRIM8#

main67640-95815-06iGX61,MX61..HT..GD..(EFI,TBO)198208-198308

D-BROWN,BROWN,TRIM4#

main67640-95815-14iGX61,MX61..HT..GD..(EFI,TBO)198308-198407

BLUE,BLUE,TRIM8#

main67640-95815-16iGX61,MX61..HT..GD..(EFI,TBO)198308-198407

D-BROWN,BROWN,TRIM4#

main67640-95817-02iGX61..HT..TWC198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

sub67640-95822

main67640-95817-04iGX61..HT..TWC198208-198308

BLUE,BLUE,TRIM8#

sub67640-95822

main67640-95817-06iGX61..HT..TWC198208-198308

D-BROWN,BROWN,TRIM4#

sub67640-95822

main67640-95817-12iGX61..HT..TWC198308-198402

DEEP MAROON,RED/MAROON,TRIM3#

sub67640-95822

main67640-95817-14iGX61..HT..TWC198308-198402

BLUE,BLUE,TRIM8#

sub67640-95822

main67640-95817-16iGX61..HT..TWC198308-198402

D-BROWN,BROWN,TRIM4#

sub67640-95822

main67640-95821iGX61..HT..GD198401-198407

LIMITED,W/DOOR MIRROR

main67640-95821iGX61..HT..GD198309-198407

LIMITED

main67640-95822-02iGX61..HT..TWC198402-198407

DEEP MAROON,DEEP MAROON,TRIM3#

main67640-95822-04iGX61..HT..TWC198402-198407

BLUE,BLUE,TRIM8#

main67640-95822-06iGX61..HT..TWC198402-198407

D-BROWN,DARK BROWN,TRIM4#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-22020-01iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

BLACK,BLACK,TRIM2#

sub67785-22020

main67785-22020-02iGX61,LX60,67,MX6#,SX60,TX67..DLX,GD,GL,GR,LG,LGT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub67785-22020

main67785-22020-04iGX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT198009-198208

BLUE,BLUE,TRIM8#

sub67785-22020

main67785-22020-06iGX6#,LX60,67,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LG,LGT198009-198407

D-BROWN,BROWN,TRIM4#

sub67785-22020

main67785-22020-14iGX6#,LX6#,MX6#,SX60,TX67198208-198407

BLUE,BLUE,TRIM8#

sub67785-22020

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-22100iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

main67841-95801iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-22100iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

main67841-95801iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

67812PAD, REAR DOOR SILENCER

main67812-22040iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

sub67812-12010

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22070iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198103

sub67871-22071

main67871-22071iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198103-198401

sub67871-22072

main67871-22072iGX61,LX6#,MX61,SX60,TX67..SED,V198401-198407

main67871-22090iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198401

COLD SPEC

sub67871-22091

main67871-22091iGX61,LX6#,MX61,SX60,TX67..SED,V198401-198407

COLD SPEC

sub67871-22072

main67871-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22070iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198103

sub67872-22071

main67872-22071iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198103-198401

sub67872-22072

main67872-22072iGX61,LX6#,MX61,SX60,TX67..SED,V198401-198407

main67872-22090iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198401

COLD SPEC

sub67872-22091

main67872-22091iGX61,LX6#,MX61,SX60,TX67..SED,V198401-198407

COLD SPEC

sub67872-22072

main67872-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-22080iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

*TT,T=3.5

main68113-22090iLX60,MX60..MTM..DLX198109-198407

*30,*TEM,T=3.5

sub68113-22080

main68113-22090iSX60,TX60..STD198009-198407

*TEM,T=3.5

sub68113-22080

main68113-22120iGX61,MX61..SED..GD198110-198407

*TEM,T=3.5,BRONZE

main68113-91609iTX67..STD198011-198407

*TEM,T=3.5

sub68113-91610

main68113-91610iGX60,LX67,TX67..(V,WG)..(DLX,GL,LE)198011-198407

*TT,T=3.5

main68113-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

*TT,T=5.0

main68113-95801iMX61..HT..GD198110-198407

*TEM,T=5.0,BRONZE

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-22080iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

*TT,T=3.5

main68114-22090iSX60,TX60..STD198009-198407

*TEM,T=3.5

sub68114-22080

main68114-22090iLX60,MX60..MTM..DLX198109-198407

*30,*TEM,T=3.5

sub68114-22080

main68114-22120iMX61..SED..GD198110-198407

*TEM,T=3.5,BRONZE

main68114-91609iTX67..STD198011-198407

*TEM,T=3.5

sub68114-91610

main68114-91610iGX60,LX67,TX67..(V,WG)..(DLX,GL,LE)198011-198407

*TT,T=3.5

main68114-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

*TT,T=5.0

main68114-95801iMX61..HT..GD198110-198407

*TEM,T=5.0,BRONZE

68123GLASS, REAR DOOR WINDOW, RH

main68123-22080iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

*TT,T=3.5

main68123-22090iLX60,MX60..MTM..DLX198109-198407

*30,*TEM,T=3.5

sub68123-22080

main68123-22090iSX60,TX60..STD198009-198407

*TEM,T=3.5

sub68123-22080

main68123-22110iMX61..SED..GD198110-198407

*TEM,T=3.5,BRONZE

main68123-91609iTX67..STD198011-198407

*TEM,T=3.5

sub68123-91610

main68123-91610iGX60,LX67,TX67..(V,WG)..(DLX,GL,LE)198011-198407

*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-22080iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

*TT,T=3.5

main68124-22090iLX60,MX60..MTM..DLX198109-198407

*30,*TEM,T=3.5

sub68124-22080

main68124-22090iSX60,TX60..STD198009-198407

*TEM,T=3.5

sub68124-22080

main68124-22110iMX61..SED..GD198110-198407

*TEM,T=3.5,BRONZE

main68124-91609iTX67..STD198011-198407

*TEM,T=3.5

sub68124-91610

main68124-91610iGX60,LX67,TX67..(V,WG)..(DLX,GL,LE)198011-198407

*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-22040iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED,WG198009-198407

main68142-91607iLX67,TX67198011-198407

sub68142-22040

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-22040iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

main68188-91607iGX60,LX67,TX67..V,WG198011-198407

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-22030iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

main68189-91604iGX60,LX67,TX67..V,WG198011-198407

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-22060iGX6#,LX60,MX63,RX6#,TX60..SED198009-198010

main68190-22061iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198010-198407

main68190-95801iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

68405GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-22050iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

main67405-95801iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

68406GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-22050iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

main67406-95801iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

68630CHECK ASSY, REAR DOOR

main68630-22020iGX6#,MX63,RX6#,TX60..HT198009-198012

sub68630-22021

main68630-22021iGX6#,MX61,63,RX6#,SX60,TX60..HT198012-198407

main68630-22030iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198012

sub68630-22031

main68630-22031iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198012-198407

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iGX6#,LX6#,MX6#,SX60,TX67198406-198407

sub68617-90A00

main68617-22010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198406

sub68617-12010

6777122010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22010

9017906070

main90179-06070

9165140612

main91651-40612

9165140616

main91651-40616

9322915010

main93229-15010

34 parts on this diagram · 2 diagrams in section
