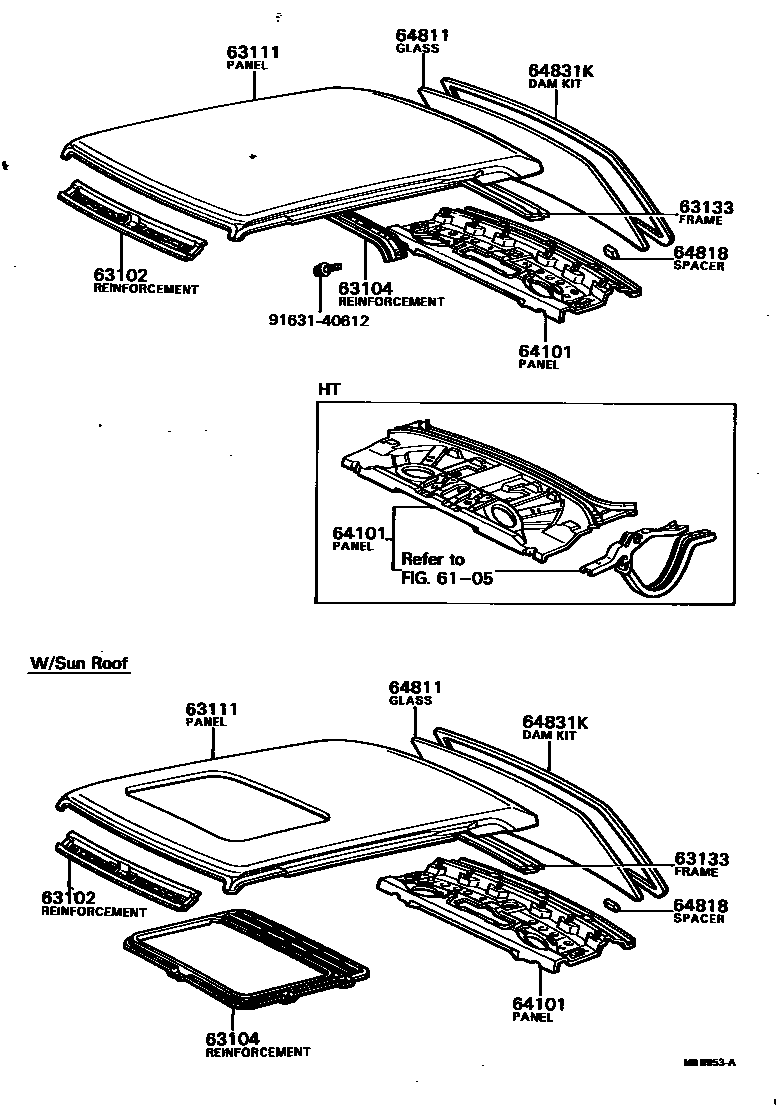

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

6105

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-22040iGX60,RX6#,TX60..HT..(GL,GR,GT,LE)198009-198407

sub63102-22050

main63102-22050iGX61,MX61..HT..(GD,LG)198009-198407

main63102-22060iLX65,MX61..SED..(LE,LGT)198009-198407

W/SUN ROOF

sub63102-22070

main63102-22060iGX60,LX6#,MX60,RX6#,TX6#..(SED,V,WG)..(DLX,GL,GR,GT,LE,STD)198009-198407

sub63102-22070

main63102-22070iGX61,MX61..SED..(GD,LG)198208-198407

W/MAP LAMP

main63102-22070iGX6#,MX61,63..SED..(GD,LG,LGT)198009-198208

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-22030iGX61,MX61,63..HT..GD198009-198407

main63103-22040iGX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LG,LGT)198009-198407

sub63103-22030

main63103-22050iGX61,MX61,63..SED..GD198009-198407

sub63103-22071

main63103-22060iGX6#,LX60,65,MX60,61,RX6#,SX60,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD)198009-198407

sub63103-22070

main63103-91602iGX60,LX67,TX67..V,WG198011-198407

main63142-22010iGX6#,RX6#..SED..(GD,GR,GT,LE,LG,LGT)198009-198407

W/SUN ROOF

63111PANEL, ROOF

main63111-22080iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

main63111-22090iLX65,MX61..SED198009-198407

W/SUN ROOF

main63111-91609iGX60,LX67,TX67..V,WG198011-198407

sub63111-91610

main63111-91610iGX60..WG198107-198407

main63111-95801iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-22050iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

main63133-95801iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

64101PANEL SUB-ASSY, UPPER BACK

main64101-22111iSX60..LPG198302-198407

*30

main64101-22111iMX60198011-198407

main64101-22130iGX6#,LX60,MX63,RX6#,TX60..SED198009-198011

sub64101-22131

main64101-22131iGX6#,LX60,MX63,RX6#,TX60..SED198011-198407

main64101-22140iGX6#,MX63,RX63..SED..(GD,GT,LG,LGT)198009-198011

W/RR WIPER

sub64101-22141

main64101-22141iMX61..SED..LGT198011-198208

W/RR WIPER

main64101-95803iGX6#,MX61,63,RX60,TX60..HT..(GD,GL,GR,LE,LG)198009-198407

sub64101-95805

main64101-95804iGX61,RX63..HT..(GT,LGT)198009-198208

sub64101-95806

main64101-95805iGX61..HT..GD;MX61..HT..LGT198009-198407

W/RR WIPER

main64101-95806iGX61,MX61,RX63..HT..(GT,LGT)198009-198208

W/RR WIPER

64811GLASS, BACK WINDOW

main64811-22200iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

*EHTT,T=4.0

main64811-22210iMX61..SED..LGT198009-198208

*EHTT,T=4.0,W/RR WIPER

main64811-22250iSX60,TX60..STD198009-198407

*TEM,T=4.0

sub64811-22260

main64811-22260iSX60,TX60..STD198109-198407

*TEM,T=4.0,W/*DEF

sub64811-22230

main64811-22260iSX60,TX60..STD198109-198407

*30,*TEM,T=4.0

sub64811-22230

main64811-22280iMX61..SED..GD198110-198407

*TEM,T=4.0,BRONZE

main64811-95807iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

*EHTT,T=4.0

main64811-95808iMX61..HT..LGT198009-198407

*EHTT,T=4.0,W/RR WIPER

main64811-95809iGX61,MX61..HT..GD198110-198407

*TEM,T=4.0,BRONZE

main64811-95810iGX61..HT..GD198208-198407

*TEM,T=4.0,W/RR WIPER,BRONZE

64818SPACER, BACK WINDOW GLASS

main56116-22010iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

sub56116-32040

main56116-30020iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

sub56116-24010

64831KDAM KIT, BACK WINDOW GLASS

main04562-30030iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED198009-198407

sub04562-30040

9163140612

main91631-40612

10 parts on this diagram · 3 diagrams in section
