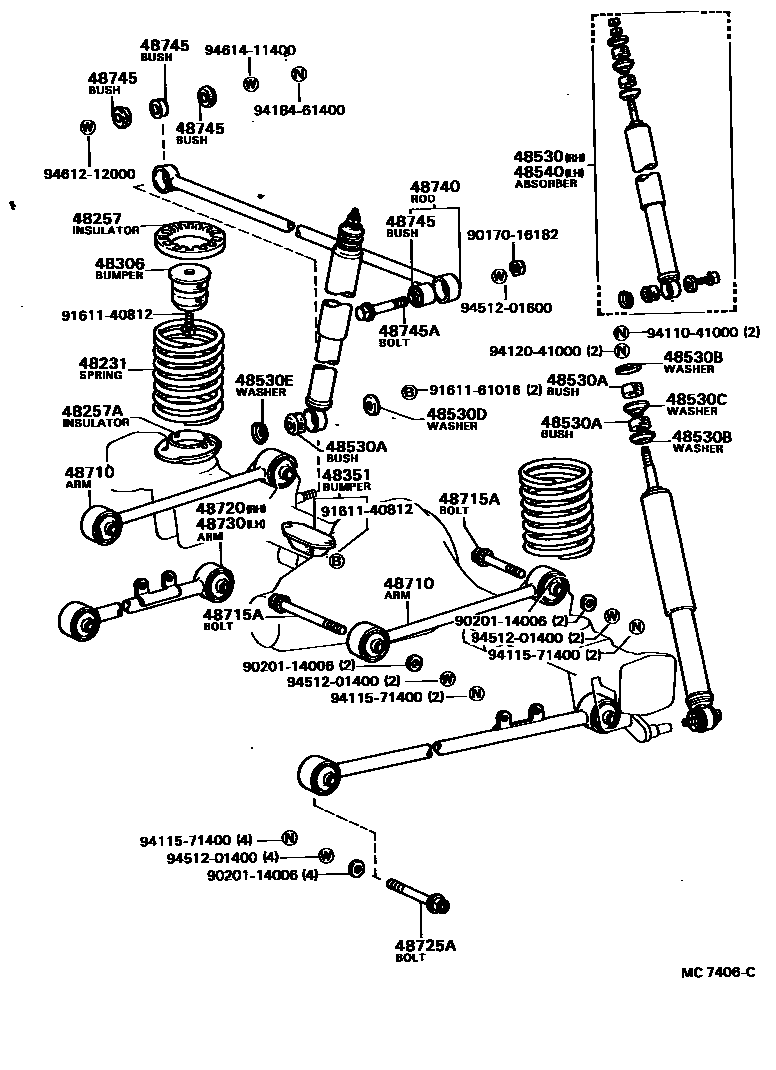

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1

48231SPRING, COIL, REAR

main48231-22260iGX61,MX63..GD198009-198208

main48231-22270iGX60,TX60..HT,SED198009-198208

main48231-22280iGX61,MX61..LGT198009-198208

sub48231-22550

main48231-22310iLX60,RX60198009-198208

sub48231-22410

main48231-22320iLX60,MX60..DLX198009-198208

TAXI SPEC

sub48231-22410

main48231-22340iMX61,RX63..GD,GT198009-198208

sub48231-24050

main48231-22390iSX60198208-198407

RH

sub48231-22400

main48231-22400iSX60198208-198407

LH

main48231-22410iLX60198208-198407

RH

main48231-22420iLX60198208-198407

LH

sub48231-22410

main48231-22430iLX60,MX60198208-198407

RH,TAXI SPEC

main48231-22440iLX60,MX60198208-198407

LH,TAXI SPEC

main48231-22510iGX61..GD..EFI198208-198407

RH

sub48231-22520

main48231-22520iGX61,LX65..EFI,TDE198208-198407

LH

main48231-22530iGX61..TWC198208-198407

RH

sub48231-24050

main48231-22540iGX61..TWC198208-198407

LH

sub48231-24050

main48231-22550iMX61..LGT198208-198407

RH

main48231-22550iMX61..LGT198208-198407

RH,HARDER SUSPENSION

main48231-22560iMX61..LGT198208-198407

LH

sub48231-22550

main48231-22560iGX61..TWC198208-198407

LH,HARDER SUSPENSION

sub48231-22550

main48231-22630iGX61,LX65..LE,LG198211-198407

RH

sub48231-22640

main48231-22640iGX61,LX65..LE,LG198211-198407

LH

main48231-23010iGX60..WG198011-198208

sub48231-23070

main48231-23070iGX60198208-198407

RH

main48231-23080iGX60198208-198407

LH

sub48231-23070

48257INSULATOR, REAR COIL SPRING

main48257-22020iGX60,LX60,MX60,RX60,SX60,TX60..HT,SED198009-198407

main48257-22030iGX61,LX65,MX61,63,RX63198009-198407

main48257-23010iGX60..WG198011-198407

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-22010iGX60,LX60,MX60,RX60,SX60,TX60..HT,SED198009-198407

main48258-22040iGX61,LX65,MX61,63,RX63198009-198305

RH

sub48258-22041

main48258-22041iGX61,LX65,MX61198305-198407

RH

main48258-22050iGX61,LX65,MX61,63,RX63198009-198407

LH

main48258-30010iGX60..WG198011-198407

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030iGX60..WG198011-198407

main48306-23020iLX67,TX67198011-198407

main48341-22080iGX60,LX60,MX60,RX60,SX60,TX60..HT,SED198009-198407

main48341-22100iGX61,LX65,MX61,63,RX63198009-198407

48351BUMPER, DIFFERENTIAL CARRIER

main48351-29015iGX60,LX6#,MX60,RX60,TX60198009-198407

sub48351-20020

main48351-29065iTX67198009-198407

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29375iGX61,MX63..GD198009-198407

sub48531-29377

main48531-29695iGX60,LX60,MX60,RX60,TX60..HT,SED198009-198407

sub48531-29696

main48531-29705iLX65,MX61..GD,LE198110-198407

sub48531-29706

main48531-29715iMX61..LGT198208-198407

HARDER SUSPENSION

sub48531-29705

main48531-29715iGX61,MX61,RX63..GT,LGT198009-198208

sub48531-29705

main48531-29765iGX60..WG198011-198407

sub48531-80375

main48531-29825iLX67,TX67198011-198407

main48531-80007iSX60198208-198407

sub48531-80008

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198109-198407

ABSORBER X AXLE HOUSING

main90385-16060iGX6#,LX6#,MX6#,RX6#,TX6#198009-198109

ABSORBER X AXLE HOUSING

main90540-10004iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

ABSORBER X BODY(LWR)

main90540-10005iGX60..WG198011-198407

ABSORBER X BODY(UPR)

main90948-01003iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..HT,SED,V198009-198407

ABSORBER X BODY(UPR)

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..HT,SED,V198009-198407

main90948-02002iGX60..WG198011-198407

T=2.3,LWR

main90948-02045iGX60..WG198011-198407

T=3.2,UPR

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02007iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..HT,SED,V198009-198407

main90948-02050iGX60..WG198011-198407

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29375iGX61,MX63..GD198009-198407

sub48531-29377

main48531-29695iGX60,LX60,MX60,RX60,TX60..HT,SED198009-198407

sub48531-29696

main48531-29705iLX65,MX61..GD,LE198110-198407

sub48531-29706

main48531-29715iMX61..LGT198208-198407

HARDER SUSPENSION

sub48531-29705

main48531-29715iGX61,MX61,RX63..GT,LGT198009-198208

sub48531-29705

main48531-29765iGX60..WG198011-198407

sub48531-80375

main48531-29825iLX67,TX67198011-198407

main48531-80007iSX60198208-198407

sub48531-80008

48710ARM ASSY, UPPER CONTROL

main48710-22080iGX60..HT,SED198009-198208

main48710-22080iLX60,MX60..DLX198009-198407

TAXI SPEC

main48710-22130iSX60,TX60198009-198407

main48710-22160iLX60,RX60198009-198407

main48710-23010iGX60..WG198011-198407

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14006iGX60,LX60,MX60,RX60,SX60,TX60198009-198407

AXLE HOUSING X CONTROL ARM

main90105-14008iGX60,LX60,MX60,RX60,SX60,TX60..HT,SED198009-198407

BODY X CONTROL ARM

main90105-14009iGX60..WG198011-198407

BODY X CONTROL ARM

48720ARM ASSY, LOWER CONTROL, RH

main48720-22060iLX60,RX60,SX60,TX60198009-198407

main48720-22090iGX60..HT,SED198009-198208

main48720-22090iLX60,MX60..DLX198009-198407

TAXI SPEC

main48720-23010iGX60..WG198011-198407

48725BUSH, LOWER CONTROL ARM

main48725-22010iGX61,LX65..EFI,TDE198009-198407

OUTER

main48725-22020iGX61,LX65..EFI,TDE198009-198407

INNER

main48725-22030iMX61;GX61,RX63..GT,LGT198009-198407

OUTER

main48725-22040iMX61;GX61,RX63..GT,LGT198009-198407

INNER

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14006iGX60..WG198011-198407

main90105-14007iGX60,LX60,MX60,RX60,SX60,TX60..HT,SED198009-198407

48730ARM ASSY, LOWER CONTROL, LH

main48720-22060iLX60,RX60,SX60,TX60198009-198407

main48720-22090iLX60,MX60..DLX198009-198407

TAXI SPEC

main48720-22090iGX60..HT,SED198009-198208

main48720-23010iGX60..WG198011-198407

48740ROD ASSY, REAR LATERAL CONTROL

main48740-22030iGX60,MX60,SX60,TX60..HT,SED198009-198407

main48740-22050iLX60,RX60198009-198407

main48740-23010iGX60..WG198011-198407

48745BUSH, LATERAL CONTROL ROD

main48706-14010iGX60..WG198011-198407

BODY SIDE

main48706-22010iGX60,LX60,MX60,RX60,SX60,TX60..HT,SED198009-198407

BODY SIDE

main90385-20001iGX60,LX60,MX60,RX60,SX60,TX60198009-198407

L=15,HOUSING SIDE

main90386-20001iGX60,LX60,MX60,RX60,SX60,TX60198009-198407

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iGX60..WG198011-198407

main90105-16006iGX60,LX60,MX60,RX60,SX60,TX60..HT,SED198009-198407

9017016182

main90170-16182

9020114006

main90201-14006

9161140812

main91611-40812

9161161016

main91611-61016

9411041000

main94110-41000

9411571400

main94115-71400

9412041000

main94120-41000

9418461400

main94184-61400

9451201400

main94512-01400

9451201600

main94512-01600

9461212000

main94612-12000

9461411400

main94614-11400

33 parts on this diagram · 5 diagrams in section
