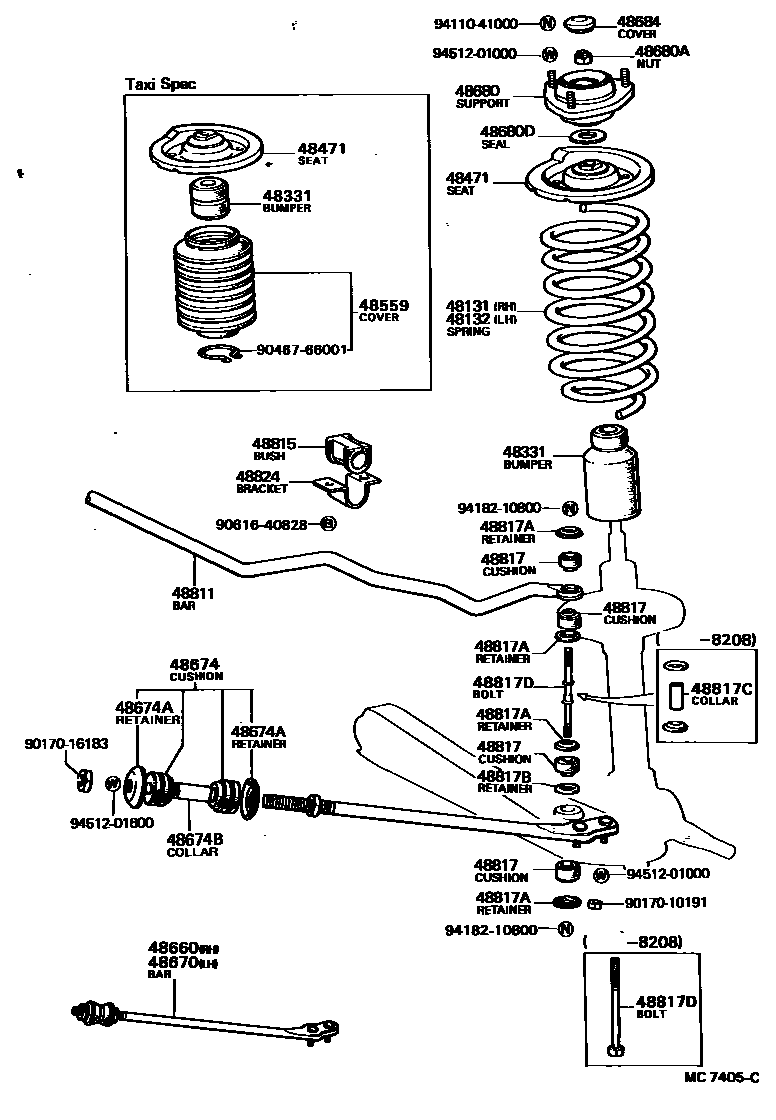

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-22530iGX60..HT,SED¥12,400198009-198208

main48131-22540iTX60;GX60..WG¥12,400198009-198208

sub48131-22530¥12,400

main48131-22550iGX61..LGT¥8,900198009-198208

main48131-22560iGX61..GD¥9,900198009-198208

main48131-22570iLX60,MX60..DLX198009-198208

TAXI SPEC

main48131-22580iLX60198009-198208

main48131-22590iMX63¥10,700198009-198208

sub48131-22870¥10,700

main48131-22610iTX67¥12,400198011-198208

sub48131-22770¥11,800

main48131-22620iLX67¥10,300198011-198208

sub48131-22670

main48131-22650iRX60¥9,700198009-198208

main48131-22660iRX63¥8,500198009-198208

main48131-22680iMX61..LGT¥10,700198110-198208

sub48131-2A110

main48131-22690iMX61..GD¥10,700198110-198208

main48131-22720iSX60198208-198407

main48131-22770iTX67¥11,800198208-198407

main48131-22790iGX60¥11,800198208-198407

sub48131-22820¥11,700

main48131-22830iLX67¥10,400198208-198407

sub48131-22670

main48131-22850iGX61..GD..EFI¥10,400198208-198407

sub48131-22880¥10,400

main48131-2A010iLX60,MX60..DLX198208-198407

TAXI SPEC

main48131-2A030iGX61,LX60..DSL,TWC¥10,600198208-198407

main48131-2A050iGX61..LE,LG¥10,400198208-198407

main48131-2A070iLX65,MX61..GD,LE¥11,800198208-198407

main48131-2A090iGX61..TWC¥10,400198208-198407

HARDER SUSPENSION

sub48131-22640¥10,300

main48131-2A110iMX61..LGT198208-198407

48132SPRING, FRONT COIL, LH

main48131-22530iGX60..HT,SED¥12,400198009-198208

main48131-22540iTX60;GX60..WG¥12,400198009-198208

sub48131-22530¥12,400

main48131-22550iGX61..LGT¥8,900198009-198208

main48131-22560iGX61..GD¥9,900198009-198208

main48131-22570iLX60,MX60..DLX198009-198208

TAXI SPEC

main48131-22580iLX60198009-198208

main48131-22590iMX63¥10,700198009-198208

sub48131-22870¥10,700

main48131-22610iTX67¥12,400198011-198208

sub48131-22770¥11,800

main48131-22620iLX67¥10,300198011-198208

sub48131-22670

main48131-22650iRX60¥9,700198009-198208

main48131-22660iRX63¥8,500198009-198208

main48131-22680iMX61..LGT¥10,700198110-198208

sub48131-2A110

main48131-22690iMX61..GD¥10,700198110-198208

main48131-22780iTX67¥11,800198208-198407

sub48131-22770¥11,800

main48131-22800iGX60¥11,800198208-198407

sub48131-22530¥12,400

main48131-22840iLX67¥10,400198208-198407

sub48131-22670

main48131-22860iGX61..GD..EFI¥10,400198208-198407

sub48131-2A050¥10,400

main48131-22890iSX60198208-198407

main48131-2A020iLX60,MX60..DLX¥9,900198208-198407

TAXI SPEC

main48131-2A040iGX61,LX60..DSL,TWC¥9,900198208-198407

main48131-2A060iGX61..LE,LG¥10,400198208-198407

sub48131-22670

main48131-2A080iLX65,MX61..GD,LE¥11,800198208-198407

sub48131-22690¥10,700

main48131-2A100iGX61..TWC¥10,400198208-198407

HARDER SUSPENSION

main48131-2A120iMX61..LGT198208-198407

48331BUMPER, FRONT SPRING, NO.1

main48331-14020iGX6#,LX6#,MX61,63,RX6#,SX60,TX6#¥1,000198009-198407

main48331-22030iLX60,MX60..DLX¥790198009-198407

TAXI SPEC

48471SEAT, FRONT SPRING, UPPER

main48044-22010iGX6#,LX6#,MX61,63,RX6#,SX60,TX6#¥1,820198009-198407

main48044-22020iLX60,MX60..DLX¥1,810198009-198407

TAXI SPEC

48559COVER, SHOCK ABSORBER, DUST

main48304-22020iLX60,MX60..DLX¥3,350198009-198407

TAXI SPEC

48660BAR ASSY, STRUT, RH

main48660-29085iGX6#,LX6#,MX6#,RX6#,TX6#¥6,500198009-198208

main48660-29125iGX6#,LX6#,MX61,SX60,TX67¥7,200198208-198407

48670BAR ASSY, STRUT, LH

main48670-29085iGX6#,LX6#,MX6#,RX6#,TX6#¥6,500198009-198208

main48670-29125iGX6#,LX6#,MX6#,SX60,TX67¥7,200198208-198407

48674CUSHION, STRUT BAR

main48674-29045iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥1,780198009-198407

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02036iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥540198009-198407

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-16108iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥540198009-198407

48680SUPPORT ASSY, FRONT SUSPENSION

main48603-22010iGX6#,LX6#,MX6#,SX60,TX67¥4,900198208-198407

RH

main48609-22010iGX6#,LX6#,MX6#,RX6#,TX6#¥4,930198009-198208

main48609-22030iGX6#,LX6#,MX6#,SX60,TX67¥4,900198208-198407

LH

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥310198009-198407

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥260198009-198407

48684COVER, BEARING DUST

main48684-14020iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥230198009-198407

48811BAR, STABILIZER, FRONT

main48811-22130iGX60,LX67,RX60,TX60..DLX,GL,LE,STD¥11,500198009-198208

OD=21

sub48811-22190

main48811-22140iMX61;GX60..WG;GX61,LX60,MX60,63,RX63..DLX,GD,GL,GT¥12,700198009-198208

OD=23

sub48811-22210¥12,700

main48811-22150iGX60,LX6#,MX60,RX60¥12,000198009-198208

OD=22

sub48811-22200

main48811-22160iTX67¥11,100198011-198208

OD=20

sub48811-22180

main48811-22170iGX61..LGT¥13,400198009-198208

OD=24

sub48811-22220¥13,400

main48811-22180iTX67198208-198407

OD=20

main48811-22190iLX67,SX60198208-198407

OD=21

main48811-22200iGX60,LX60,MX6#..DLX,GL,LE,LGT198208-198407

OD=22

main48811-22210iGX60,LX60,MX6#¥12,700198208-198407

W/POWER STEERING,OD=23

main48811-22210iGX60,LX60,MX6#¥12,700198208-198407

OD=23(RED PAINT)

main48811-22220iGX61..TWC¥13,400198208-198407

HARDER SUSPENSION,OD=24(BLUE PAINT)

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14020iGX60,LX6#,MX60,RX60¥600198009-198407

ID=22

sub48815-38010¥590

main48815-20060iLX67,SX60¥600198009-198407

ID=21

main48815-28010iGX61..TWC¥600198403-198407

HARDER SUSPENSION,ID=24

main48815-30040iTX67¥510198011-198407

ID=20

main48815-30050iGX61,LX65¥380198208-198407

ID=23,24

main48815-30050iGX60,LX60,MX6#¥380198208-198407

W/POWER STEERING,ID=23

main48815-30050iGX60..WG;GX61,LX60,MX6#,RX63¥380198009-198208

ID=23

48817CUSHION, FRONT STABILIZER

main48817-22010iGX6#,LX6#,MX6#,RX6#,TX6#¥600198009-198204

sub48817-22020¥510

main48817-22020iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥510198204-198407

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥200198009-198407

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥90198009-198407

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09002iGX6#,LX6#,MX6#,RX6#,TX6#¥260198009-198208

48817DBOLT(FOR FRONT STABILIZER)

main48819-24010iGX6#,LX6#,MX6#,SX60,TX67¥510198208-198407

main90101-08023iGX6#,LX6#,MX6#,RX6#,TX6#¥280198009-198208

48824BRACKET, STABILIZER, FRONT

main48824-22010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#¥250198009-198407

9017010191

main90170-10191¥110

9017016083

main90170-16083

9046766001

main90467-66001¥210

9061640828

main90616-40828

9411041000

main94110-41000¥160

9418210800

main94182-10800¥230

9451201000

main94512-01000¥90

9451201600

main94512-01600¥200

30 parts on this diagram · 2 diagrams in section
