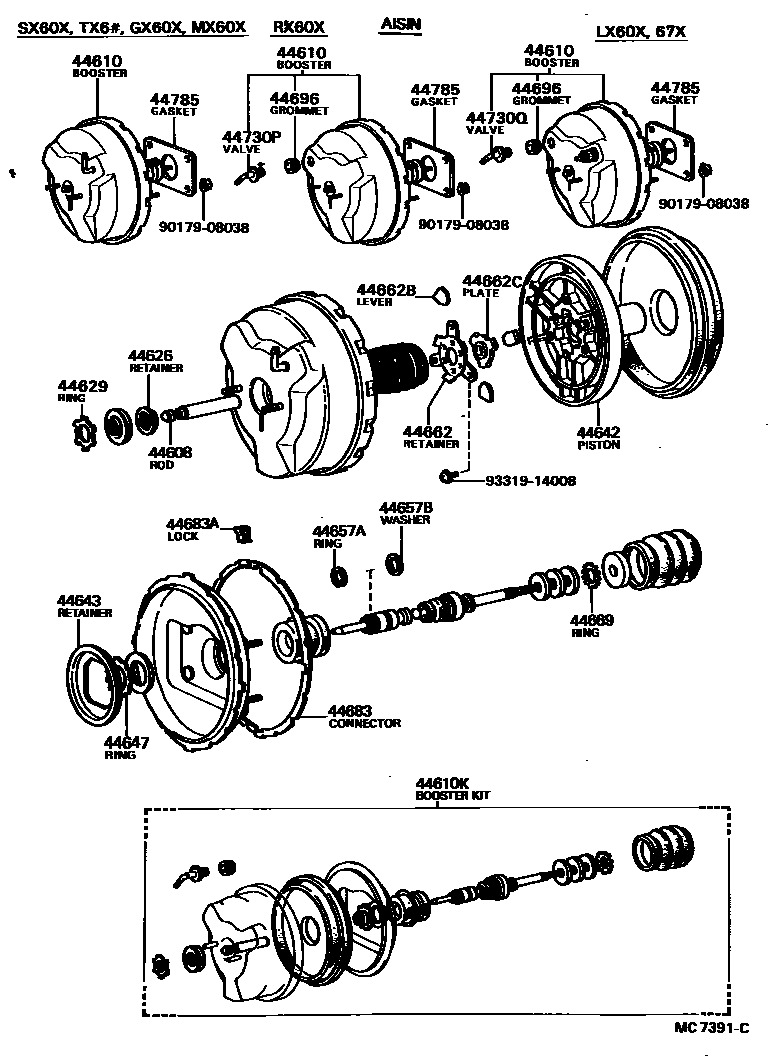

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1 0012 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-35100iGX6#,LX6#,MX60,SX60,TX67..DLX,GL,GR,LE,LG,STD198009-198407

main44608-22090iGX61,MX61..GD,LGT198009-198407

44610BOOSTER ASSY, BRAKE

main44610-22330iGX60,MX60,SX60,TX6#198009-198407

main44610-22340iGX61,MX63,RX63198009-198407

main44610-22350iLX60,67198009-198407

main44610-22360iRX60198009-198208

main44610-22400iGX61..LE,LG198208-198407

main44610-22410iMX61198110-198407

main44610-22430iLX65198208-198407

44610KBOOSTER KIT, BRAKE

main04443-14320iGX60,MX60,SX60,TX67198208-198407

main04443-22230iGX60,MX60,TX6#198009-198208

main04443-22240iGX61,MX63,RX63198009-198208

main04443-22250iGX61,MX63..GD198009-198407

W/ESC

main04443-22260iLX60,67198009-198407

main04443-22270iRX60198009-198208

main04443-22311iGX61..LE,LG198208-198407

main04443-22320iMX61198110-198407

main04443-22330iGX61..GD198208-198407

main04443-22340iLX65198208-198407

44626RETAINER, BOOSTER ROD CUP

main44626-60010iGX60,LX6#,MX60,RX60,TX6#198009-198407

44629RING, CIRCULAR INTERNAL

main44628-60010iGX60,LX6#,MX60,RX60,TX6#198009-198407

44642PISTON, BRAKE BOOSTER

main44642-14170iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

main44642-25080iGX61,MX61,63,RX63198009-198407

main44642-30030iGX61,LX65..LE,LG198208-198407

44643RETAINER, DIAPHRAGM

main44643-60010iGX60,LX6#,MX60,RX60,TX6#198009-198407

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iGX60,LX6#,MX60,RX60,TX6#198009-198407

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iGX6#,LX6#,MX60,SX60,TX67..DLX,GL,GR,LE,LG,STD198009-198407

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

44662RETAINER, REACTION, NO.1

main44662-20460iGX61,LX65..LE,LG198208-198407

main44662-35100iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

44662BLEVER, REACTION

main44661-35100iGX6#,LX6#,MX60,SX60,TX67..DLX,GL,GR,LE,LG,STD198009-198407

44662CPLATE, REACTION, NO.1

main44607-22330iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

main44607-22380iGX61,LX65..LE,LG198208-198407

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iGX60,LX6#,MX60,RX60,TX6#198009-198407

44683CONNECTOR, BOOSTER BODY

main44682-20150iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

44683ALOCK, CONNECTOR

main44683-20100iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

44696GROMMET, CHECK VALVE

main90480-24439iLX6#,RX60198009-198407

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44580-22030iMX61198110-198407

main44730-10010iGX6#,MX60,SX60,TX67198208-198407

main44730-20010iGX6#,MX60,63,RX63,TX6#198009-198208

main44730-20020iGX61,MX63..GD198009-198305

W/ESC

sub44730-24010

main44730-20030iRX60198009-198407

main44730-22110iLX6#198009-198407

main44730-24010iGX61..GD198305-198407

W/ESC

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-20030iLX60,67198009-198407

main44730-20060iLX65198208-198407

44785GASKET, BRAKE BOOSTER

main44785-30020iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

9017908038

main90179-08038

9331914008

main93319-14008

22 parts on this diagram · 10 diagrams in section
