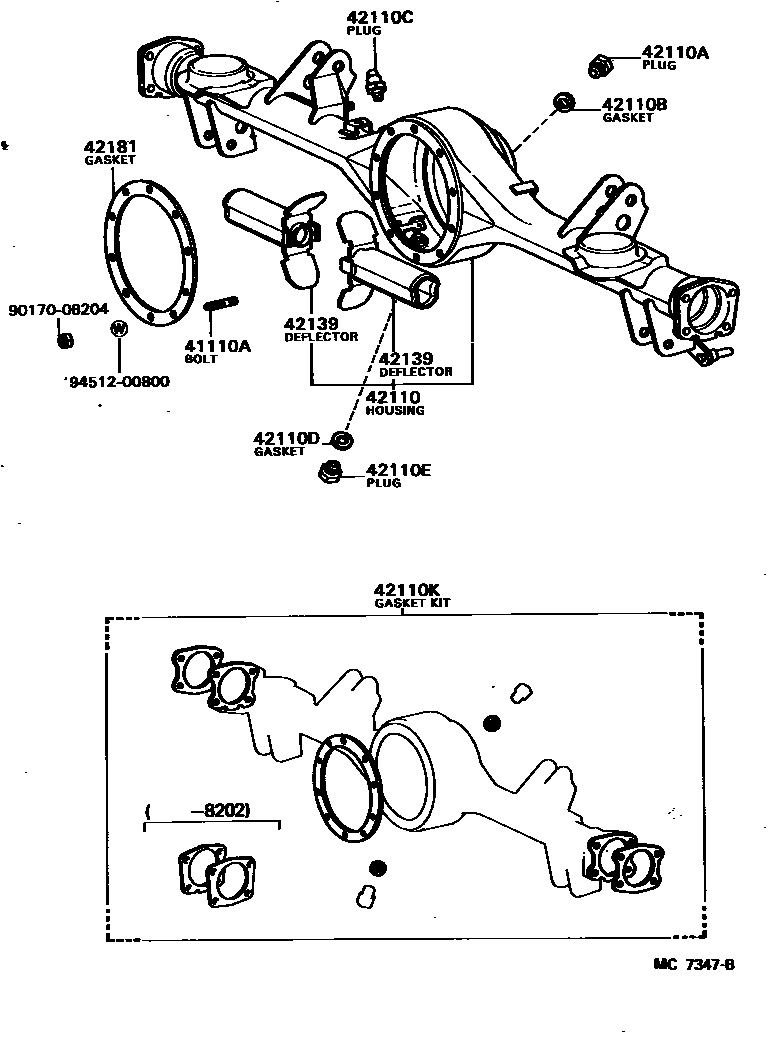

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0005 1 0006 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14180iMX63198009-198208

main41110-14210iRX63;GX61..TWC198009-198407

main41110-14220iGX61..ATM..EFI198208-198407

sub41110-14221

main41110-20241iLX67,TX67;LX60,SX60,TX60..ATM198009-198407

main41110-20251iTX60..4F;LX60,MX60..3FC,4F,5F198009-198407

main41110-20251iSX60..LPG198302-198407

main41110-21020iLX60..DLX198208-198407

main41110-22131iGX61198009-198407

main41110-22141iRX63;GX61,MX61..TBO,TWC198009-198407

main41110-22170iGX60,RX60,SX60..(HT,SED)..MTM198009-198407

sub41110-22171

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08106iGX60,RX60,SX60..(HT,SED)..MTM198009-198407

main90116-08235iGX60..WG..5F;GX60,RX60..ATM;LX60,67,MX60,TX6#198009-198407

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-22110iGX60,LX60,RX60,TX60..HT,SED198009-198208

sub42110-22150

main42110-22120iLX60,MX60..DLX198009-198208

TAXI SPEC

sub42110-22170

main42110-22150iLX60,SX60198208-198407

sub42110-22170

main42110-22170iLX60,MX60..DLX198208-198407

TAXI SPEC OR *30

sub42110-22180

main42110-23060iLX67,TX67198011-198407

main42110-23080iGX60..WG198011-198407

sub42110-23090

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-20030iGX60,LX60,67,MX60,RX60,SX60,TX6#198202-198407

main04412-22050iGX60,LX6#,MX60,RX60,TX6#198009-198202

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iGX60,LX60,MX60,RX60,SX60,TX60198009-198407

main42139-22020iLX67,TX67198011-198407

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iGX60,LX60,67,MX60,RX60,SX60,TX6#198009-198407

9017008204

main90170-08204

9451200800

main94512-00800

13 parts on this diagram · 5 diagrams in section
