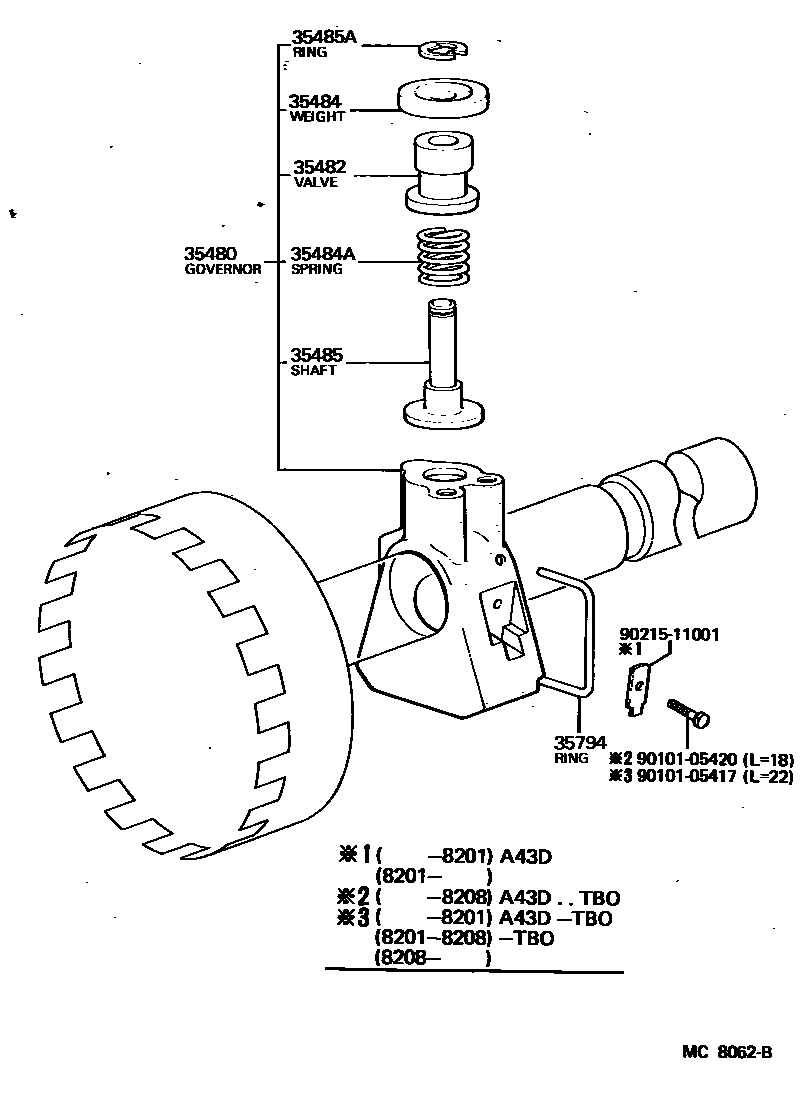

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-22020iTX6#..3FC198009-198201

sub35480-30040

main35480-30040iGX6#,RX60..ATM198009-198201

sub35480-30060

main35480-30050iLX60..4FC198009-198208

sub35480-30051

main35480-30060iGX6#,MX6#,RX60,SX60,TX6#..ATM..(CBR,EFI,LPG,TBO)198009-198407

main35480-30080iLX60,65..4FC198208-198407

35482VALVE, GOVERNOR

main35482-20010iLX60,65..4FC198208-198407

main35482-22010iGX6#,MX6#,RX60,SX60,TX6#..ATM..(CBR,EFI,LPG,TBO)198009-198407

main35482-30030iLX60..4FC198009-198208

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iLX60,65..4FC198208-198407

main35484-22010iGX6#,MX6#,RX60,SX60,TX6#..ATM..(CBR,EFI,LPG,TBO)198009-198407

main35484-30010iLX60..4FC198009-198208

sub35484-22010

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09030iLX60,65..4FC198208-198407

main90501-09673iGX6#,LX60,MX6#,RX60,TX6#..ATM198009-198407

35485SHAFT, GOVERNOR VALVE

main35485-22010iGX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)198009-198407

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iGX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)198009-198407

35794RING, GOVERNOR RETAINING

main35794-22010iGX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)198009-198407

9010105417

main90101-05417

9010105420

main90101-05420

9021511001

main90215-11001

10 parts on this diagram · 1 diagram in section
