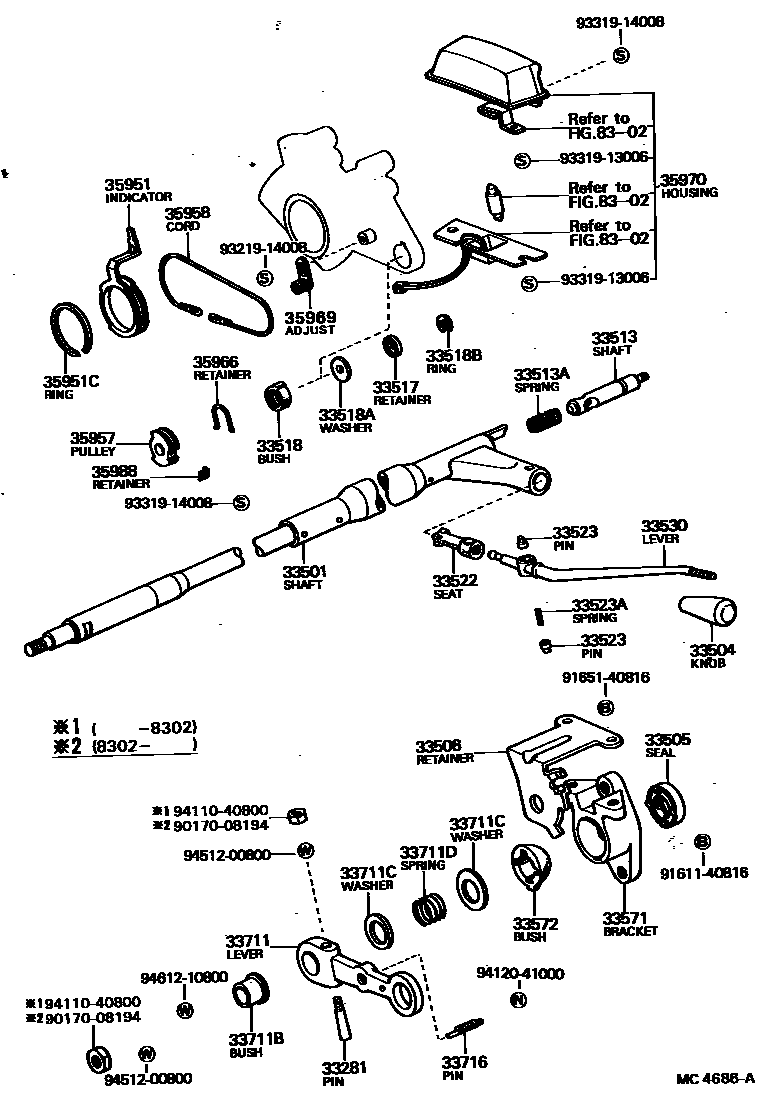

CONTROL SHAFT & CROSSSHAFT
33281PIN, LEVER LOCK (FOR COLUMN SHIFT)
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33517RETAINER, CONTROL SHAFT UPPER SPRING
33518BUSH, UPPER CONTROL SHAFT PIECE
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ASPRING, COMPRESSION
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
sub33503-22230
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711BBUSH (FOR CONTROL SHAFT LEVER)
33711CWASHER, PLATE (FOR CONTROL SHAFT LEVER)
33711DSPRING, COMPRESSION (FOR CONTROL SHAFT LEVER)
33716PIN, CONTROL SHAFT LEVER STOPPER
35951INDICATOR, CONTROL POSITION
35951CRING, SHAFT SNAP (FOR CONTROL POSITION INDICATOR)
35957PULLEY, POSITION INDICATOR DRIVE
35958CORD, POSITION INDICATOR DRIVE
35966RETAINER, CONTROL POSITION INDICATOR
35969ADJUST, DRIVE CORD
35970HOUSING ASSY, POSITION INDICATOR (FOR COLUMN SHIFT)
35988RETAINER, DRIVE CORD
8302
9017008194
main90170-08194
9161140816
main91611-40816
9165140816
main91651-40816
9321914008
main93219-14008
9331913006
main93319-13006
9331914008
main93319-14008
9411040800
main94110-40800
9412041000
main94120-41000
9451200800
main94512-00800
9461210800
main94612-10800
41 parts on this diagram · 2 diagrams in section
