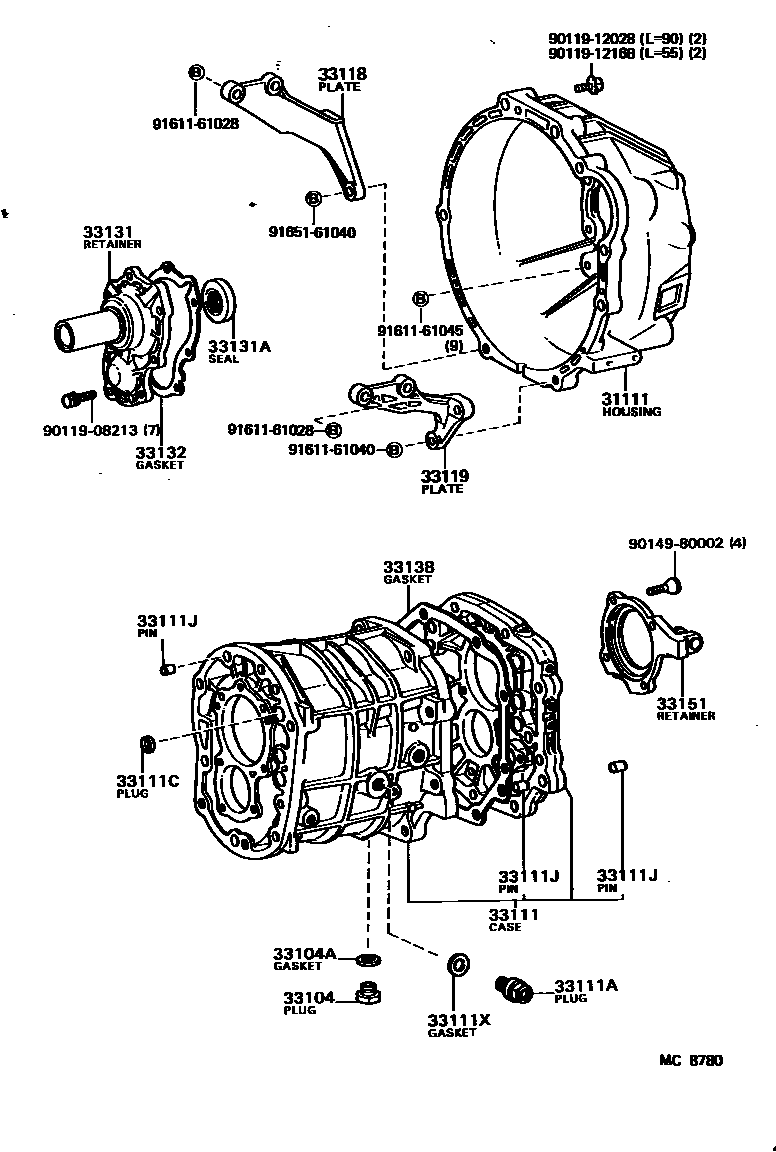

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

31111HOUSING, CLUTCH

main31111-14060iRX63198009-198208

main31111-20160iTX6#..4F198009-198407

main31111-20170iRX60..MTM198009-198108

sub31111-20171

main31111-20171iRX60..MTM198108-198208

main31111-22090iMX60..4F198011-198108

sub31111-22091

main31111-22091iMX60..4F198108-198407

main31111-22100iGX6#..MTM198009-198207

sub31111-22130

main31111-22110iLX6#..5F198009-198108

sub31111-22111

main31111-22111iLX60,67..5F198108-198407

sub31111-22112

main31111-22120iSX60..5F198208-198407

main31111-22130iGX6#..MTM198207-198407

main31111-30180iSX60..LPG198302-198407

*30

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198009-198407

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iGX6#,LX6#,MX60,RX6#,TX6#..MTM198009-198108

main90430-18007iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198108-198407

sub90430-18008

33111CASE, MANUAL TRANSMISSION

main33101-22010iGX6#,LX6#,MX60,RX6#,TX6#..MTM198009-198108

sub33101-22020

main33101-22021iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198108-198407

sub33101-22031

main33101-30040iSX60..LPG198302-198407

*30

sub33101-22040

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198009-198407

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198009-198407

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iGX6#,LX60,67,MX60,SX60,TX67..MTM198009-198407

main90250-12146iGX6#,LX6#,MX60,RX6#,TX6#..MTM198009-198208

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iGX6#,LX6#,MX60,RX6#,TX6#..MTM198009-198108

main90430-18007iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198108-198407

sub90430-18008

33118PLATE, STIFFENER, RH(MTM)

main33118-14010iTX6#..4F198009-198407

main33118-14030iSX60..5F198208-198407

main33118-22030iRX6#..MTM198009-198208

main33118-22040iMX60..4F198011-198407

main33118-22050iGX6#..MTM198009-198407

sub33118-22051

main33118-25020iLX60,67..5F198009-198407

main33118-28010iSX60..LPG198302-198407

*30

33119PLATE, STIFFENER, LH(MTM)

main33119-14040iTX6#..4F198009-198407

main33119-14050iSX60..5F198208-198407

main33119-22021iRX6#..MTM198009-198208

sub33119-22022

main33119-22030iMX60..4F198011-198407

main33119-22040iGX6#..MTM198009-198010

sub33119-22041

sub91611-61028

main33119-22041iGX6#..MTM198010-198407

sub33119-22042

main33119-25020iLX60,67..5F198009-198407

main33119-28010iSX60..LPG198302-198407

*30

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198009-198407

sub33131-22021

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198009-198407

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198009-198407

33138GASKET, INTERMEDIATE PLATE

main33142-22010iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198009-198407

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iGX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM198009-198407

9011908213

main90119-08213

9011912028

main90119-12028

9011912168

main90119-12168

9014980002

main90149-80002

9161161028

main91611-61028

9161161040

main91611-61040

9161161045

main91611-61045

9165161040

main91651-61040

23 parts on this diagram · 8 diagrams in section
