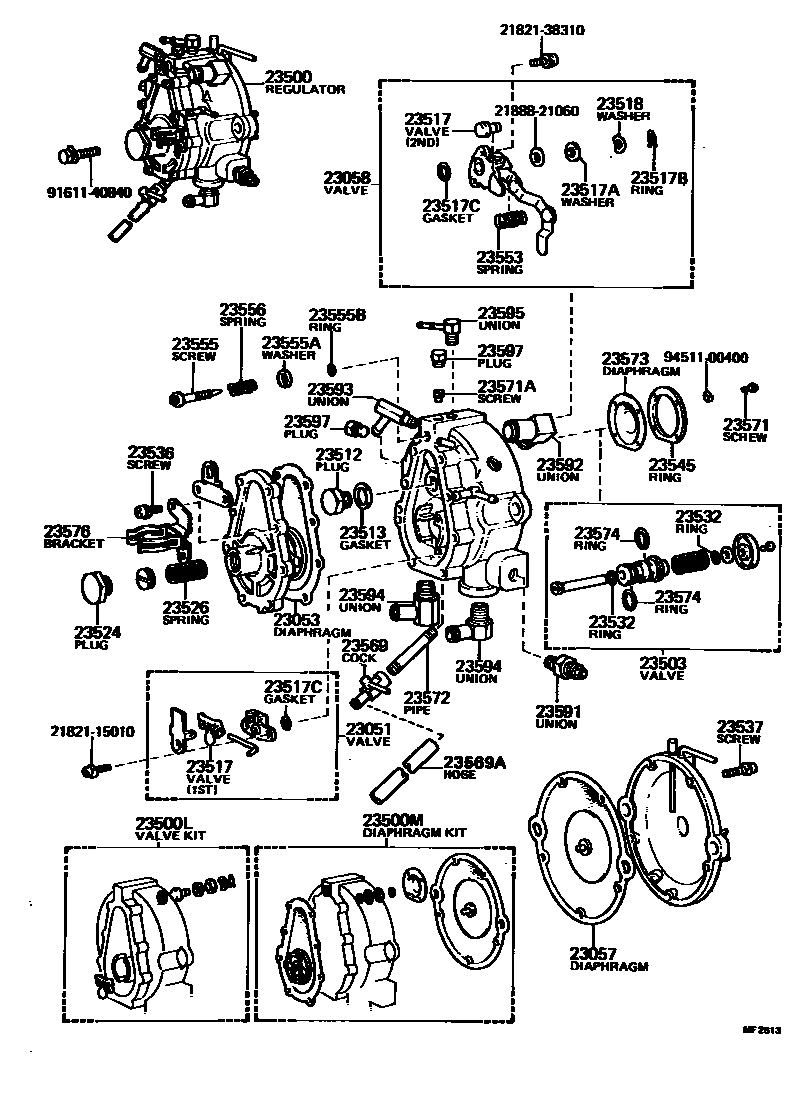

LPG OR CNG REGULATOR
23051VALVE SUB-ASSY, 1ST
23053DIAPHRAGM SUB-ASSY, 1ST
sub04235-44030
23057DIAPHRAGM SUB-ASSY, 2ND REGULATOR
sub04235-44030
23500REGULATOR ASSY, LPG(CNG)
*30
23500LVALVE KIT, LPG REGULATOR
23500MDIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
23503VALVE SUB-ASSY
23512PLUG, WATER CORE
23513GASKET, WATER CORE
23517VALVE, ELASTIC FACE
2ND
1ST
23517AWASHER(FOR ELASTIC FACE VALVE SET)
23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)
23517CGASKET(FOR ELASTIC FACE VALVE)
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23524PLUG, 1ST REGULATOR COVER
23526SPRING, 1ST REGULATOR
23532RING, O, NO.2(FOR BULB)
23536SCREW(FOR 1ST REGULATOR COVER SET)
23537SCREW(FOR 2ND REGULATOR COVER SET)
23545RING, VACUUM LOCK DIAPHRAGM
23553SPRING, 2ND REGULATOR
23555AWASHER, IDLE ADJUST SCREW
23555BRING, O(FOR IDLE ADJUST SCREW)
23556SPRING, IDLE ADJUST SCREW
23569COCK, DRAIN
23569AHOSE(FOR DRAIN COCK)
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23571ASCREW
23572PIPE, DRAIN
23573DIAPHRAGM
23574RING, O, NO.1(FOR BULB)
23576BRACKET
23591UNION, NO.1, FUEL
23593UNION, NO.3
23594UNION, NO.4, WATER HOSE
OUTLET
INLET
OUTLET
INLET
*30
23595UNION, NO.5
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2188821060WASHER(FOR POSITIONER VALVE SET)
main21888-21060
9161140840
main91611-40840
9451100400
main94511-00400
45 parts on this diagram · 3 diagrams in section
