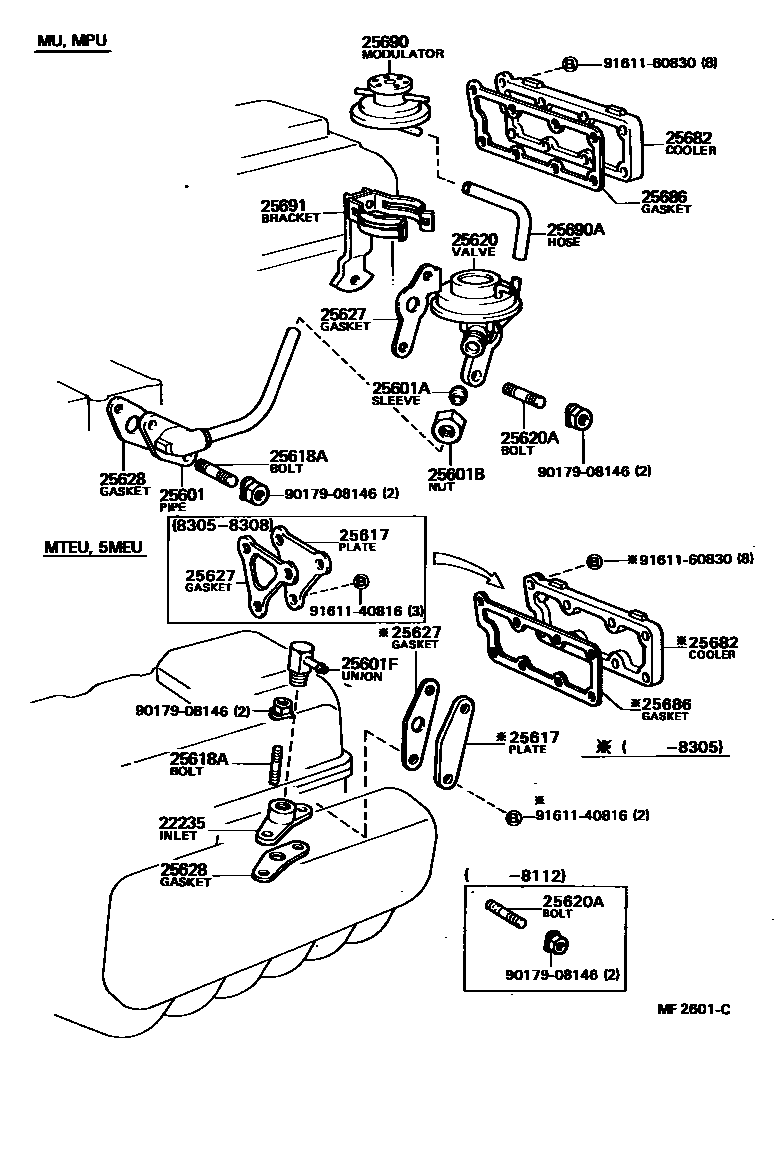

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 MF1852B,MF2694A 0004 1

22235INLET, AUXILIARY AIR

main22235-43010i5MEU,MTEU..MX61,63198009-198407

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38010i21RU..RX60198009-198208

main25601-41030iMU..MX60198011-198308

main25601-41040iMU..MX60198308-198407

main25611-72010i2YPU..SX60198302-198407

*30

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i2YPU..SX60198302-198407

*30,VALVE SIDE

main90410-14001iMU..MX60198011-198407

sub90410-14003

main90410-16001i2YPU..SX60198302-198407

*30,UNION SIDE

main90410-16044i21RU..RX60198009-198208

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20008i2YPU..SX60198302-198308

*30,VALVE SIDE

sub90402-20073

main90402-20073i2YPU..SX60198308-198407

*30,VALVE SIDE

main90402-22005i2YPU..SX60198302-198308

*30,UNION SIDE

main90402-22010i2YPU..SX60198308-198407

*30,UNION SIDE

main90402-22076iMU..MX60198011-198407

main90402-22081i21RU..RX60198009-198208

25601FUNION(FOR EGR PIPE, NO.1)

main90404-22003i2YPU..SX60198302-198407

*30

main90404-53027i5MEU,MTEU..MX61,63198009-198407

25617PLATE, EGR HOLE COVER

main25617-43010i5MEU,MTEU..MX61,63198009-198305

main25617-43030iMTEU..MX61198305-198308

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025i5MEU,MTEU,MU..MX6#198009-198407

25620VALVE ASSY, EGR

main25620-18010i13TJ..TX67198011-198407

main25620-18020i13TU..TX60..3FC198009-198208

main25620-18030i13TU..TX60..4F198009-198208

main25620-37010i21RU..RX60198009-198208

main25620-41080iMU..MX60..3FC198011-198308

main25620-41110iMU..MX60..4F198011-198308

main25620-41160iMU..MX60198308-198407

main25620-63010i1SU..SX60..5F198208-198407

main25620-63020i1SU..SX60..4FC198208-198407

main25620-72010i2YPU..SX60198302-198407

*30

sub25620-72011

sub90445-11078

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08008i2YPU..SX60198302-198407

*30

main90116-08025i5MEU,MTEU,MU..MX6#198009-198407

main90116-08207i21RU..RX60198009-198208

25627GASKET, EGR VALVE

main25627-26011i13T#..TX6#198009-198407

sub25627-26012

main25627-31020i2YPU..SX60198302-198407

*30

main25627-41020i5MEU,MTEU..MX61,63198009-198305

sub25627-43140

main25627-43040iMTEU..MX61198305-198308

sub25627-43060

main25627-45011iMU..MX60198011-198407

sub25627-43130

main25627-63010i1SU..SX60198208-198407

sub25627-63011

25628GASKET, EGR INLET

main25628-38010i21RU..RX60198009-198208

main25628-45011iMU..MX60198011-198407

sub25628-43020

main25628-45020i5MEU,MTEU..MX61,63198009-198407

25682COOLER, EGR, NO.2

main25682-45020i5MEU,MTEU,MU..MX6#198009-198407

25686GASKET, EGR COOLER, NO.2

main25686-45010iMU..MX60198009-198407

sub25686-43010

25690MODULATOR ASSY, EGR VACUUM

main25690-18010i13TJ..TX67198011-198407

main25690-28010i13TU..TX60198009-198208

main25690-37010i21RU..RX60198009-198208

main25690-41030iMU..MX60198011-198308

main25870-41010iMU..MX60198308-198407

main25870-63010i1SU..SX60198208-198407

main25870-72010i2YPU..SX60198302-198407

*30

sub25870-71011

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11013i1SU..SX60198208-198407

main90445-11017iMU..MX60198009-198407

main90445-11020i13T#..TX6#198009-198407

sub90445-11051

main90910-05134i21RU..RX60198009-198208

main90910-05137i2YPU..SX60198302-198407

*30

sub90910-05128

25691BRACKET, EGR VACUUM MODULATOR

main25691-27011i13T#..TX6#198009-198407

main25691-38021i21RU..RX60198009-198208

main25691-41030iMU..MX60198011-198407

main25691-63010i1SU..SX60198208-198407

main25691-72010i2YPU..SX60198302-198407

*30

9017908146

main90179-08146

9161140816

main91611-40816

9161160830

main91611-60830
