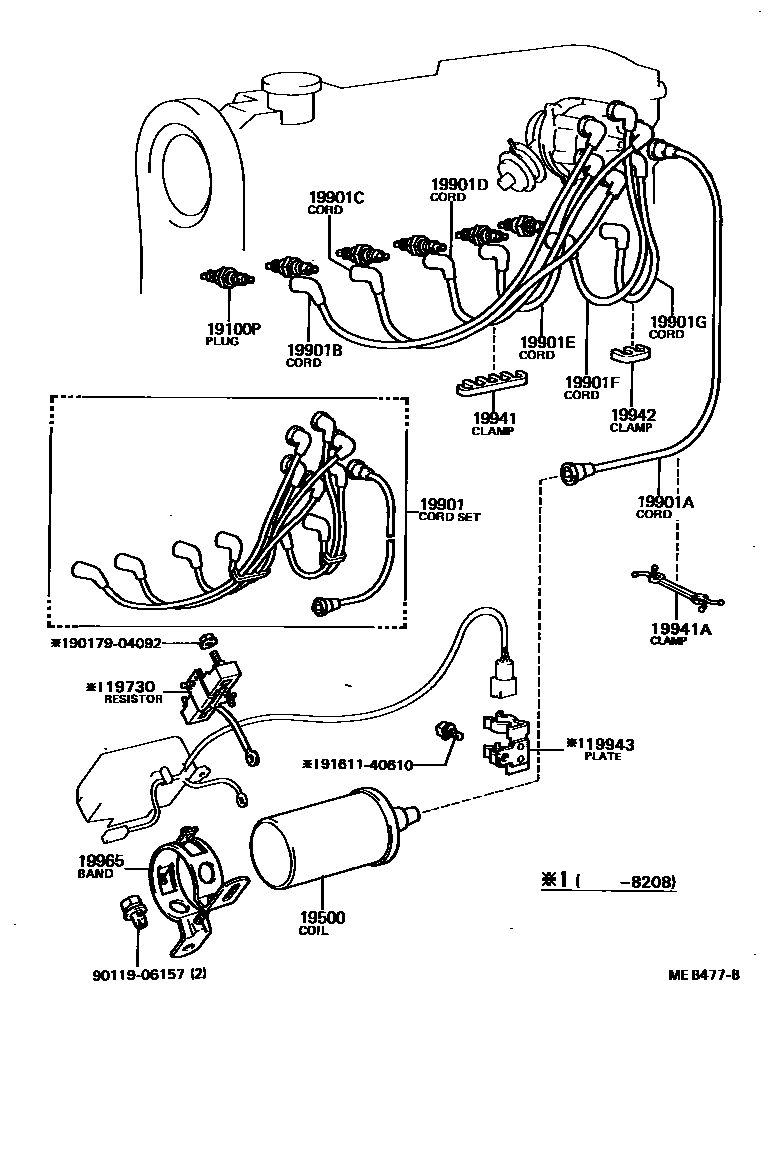

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

19100PPLUG, SPARK

main90919-01064i1GEU..GX6#198009-198208

main90919-01065i1GEU..GX6#198009-198208

main90919-01084iMTEU,MU..MX60,61198011-198407

main90919-01087i13TJ..TX67198011-198407

BP5EK-A(NGK)

main90919-01090i13TJ..TX67198011-198407

W16ET-S(DENSO)

main90919-01091i18RGEU..RX63198009-198407

main90919-01095i13TU..TX60198009-198208

W16ETR-S(DENSO)

main90919-01096i13TU..TX60198009-198208

BPR5EK-A(NGK)

main90919-01098iMTEU,MU..MX60,61198011-198407

main90919-01102i5MEU..MX63198009-198208

main90919-01103i5MEU..MX63198009-198208

main90919-01104i1SU..SX60198009-198407

main90919-01115i2YPU..SX60198302-198407

main90919-01116i2YPU..SX60198302-198407

main90919-01119i1GEU..GX6#198208-198407

main90919-01120i1GEU..GX6#198208-198407

main90919-01127i1GGEU..GX61198208-198407

main90919-01128i1GGEU..GX61198208-198407

19500COIL ASSY, IGNITION

main90919-02083i13TJ..TX67198009-198407

main90919-02106i13TU..TX60198009-198208

main90919-02113iMU..MX60198011-198407

main90919-02117i21RU..RX60198009-198208

main90919-02146iMTEU..MX61198308-198407

19730RESISTOR, IGNITION COIL

main90919-04017i1GEU..GX6#198009-198208

main90919-04030i18RGEU..RX63198009-198407

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21153i13T#..TX6#198009-198407

main90919-21254i1GEU..GX6#198009-198407

main90919-21270i18RGEU..RX63198009-198208

main90919-21294iMTEU..MX61198110-198308

main90919-21303i1GGEU..GX61198208-198407

sub90919-21445

main90919-21304iMU..MX60198208-198308

main90919-21346iMU..MX60198308-198407

main90919-21347iMTEU..MX61198308-198407

main90919-22113i1SU..SX60198208-198407

main90919-22141i2YPU..SX60198302-198407

*30

sub90919-22357

main90999-99051i21RU..RX60198009-198208

main90999-99084i5MEU,MU..MX60,63198009-198208

19901ACORD, COIL RESISTIVE

main90919-13039i5MEU..MX63198009-198208

main90919-13093i1GEU..GX6#198009-198407

main90919-13114i21RU..RX60198009-198208

main90919-13142i13T#..TX6#198009-198407

main90919-13173iMTEU,MU..MX60,61198011-198308

main90919-13178i18RGEU..RX63198009-198208

main90919-13187i21RU..RX60198011-198103

sub90919-13114

main90919-13205i1GGEU..GX61198208-198407

main90919-13208iMTEU..MX61198308-198407

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12149i13T#..TX6#198009-198407

main90919-12180i5MEU,MU..MX60,63198009-198407

main90919-12230i21RU..RX60198009-198208

main90919-12238i18RGEU..RX63198009-198208

main90919-12330i1GEU..GX6#198009-198407

sub90919-12336

main90919-12379iMTEU..MX61198110-198308

main90919-12391i1SU..SX60198208-198209

main90919-12394i1SU..SX60198209-198407

main90919-12451i1GGEU..GX61198208-198407

sub90919-12930

main90919-12540iMTEU..MX61198308-198407

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12150i13T#..TX6#198009-198407

main90919-12181i5MEU,MU..MX60,63198009-198407

main90919-12231i21RU..RX60198009-198208

main90919-12239i18RGEU..RX63198009-198208

main90919-12331i1GEU..GX6#198009-198407

sub90919-12337

main90919-12380iMTEU..MX61198110-198308

main90919-12392i1SU..SX60198208-198407

main90919-12452i1GGEU..GX61198208-198407

sub90919-12931

main90919-12541iMTEU..MX61198308-198407

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12151i13T#..TX6#198009-198407

main90919-12182i5MEU,MU..MX60,63198009-198407

main90919-12232i21RU..RX60198009-198208

main90919-12240i18RGEU..RX63198009-198208

main90919-12332i1GEU..GX6#198009-198407

sub90919-12338

main90919-12381iMTEU..MX61198110-198308

main90919-12392i1SU..SX60198209-198407

main90919-12393i1SU..SX60198208-198209

main90919-12453i1GGEU..GX61198208-198407

sub90919-12932

main90919-12542iMTEU..MX61198308-198407

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12152i13T#..TX6#198009-198407

main90919-12183i5MEU,MU..MX60,63198009-198308

main90919-12233i21RU..RX60198009-198208

main90919-12241i18RGEU..RX63198009-198208

main90919-12333i1GEU..GX6#198009-198407

sub90919-12339

main90919-12382iMTEU..MX61198110-198308

main90919-12394i1SU..SX60198208-198407

main90919-12454i1GGEU..GX61198208-198407

sub90919-12933

main90919-12530iMU..MX60198308-198407

main90919-12543iMTEU..MX61198308-198407

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12184i5MEU,MU..MX60,63198009-198308

main90919-12334i1GEU..GX6#198009-198407

sub90919-12340

main90919-12383iMTEU..MX61198110-198308

main90919-12455i1GGEU..GX61198208-198407

sub90919-12934

main90919-12531iMU..MX60198308-198407

main90919-12544iMTEU..MX61198308-198407

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-12185i5MEU,MU..MX60,63198009-198308

main90919-12335i1GEU..GX6#198009-198407

sub90919-12341

main90919-12384iMTEU..MX61198110-198308

main90919-12456i1GGEU..GX61198208-198407

sub90919-12935

main90919-12532iMU..MX60198308-198407

main90919-12545iMTEU..MX61198308-198407

19941CLAMP, RESISTIVE CORD, NO.1

main19941-88210i18RGEU..RX63198009-198208

main90464-00053i13T#..TX6#198009-198407

main90464-00068i5MEU,MU..MX60,63198009-198407

main90464-00193iMTEU..MX61198110-198308

main90464-00214i1GEU..GX6#198009-198407

main90929-01031i2YPU..SX60198302-198407

*30

main90929-01044i1GGEU..GX61198208-198407

19941ACLAMP(FOR RESISTIVE CORD)

main90464-00001i13T#..TX6#198009-198407

sub90464-00064

main90464-00073i1GEU..GX6#198009-198407

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00061i21RU..RX60198009-198208

main90464-00069i5MEU,MU..MX60,63198009-198407

main90464-00204iMTEU..MX61198110-198308

main90464-00208i1GEU..GX6#198009-198407

main90464-00347iMTEU..MX61198308-198407

main90929-01030i1GGEU..GX61198208-198407

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main19943-38011i21RU..RX60198009-198208

main19943-70010i1GEU..GX6#198009-198208

19965BAND, IGNITION COIL, NO.1

main90919-03066iMU..MX60198009-198304

main90919-03074i21RU..RX60198009-198108

sub90919-03092

main90919-03076iMTEU..MX61198108-198308

main90919-03077i18RGEU..RX63198009-198407

sub90919-03075

main90919-03086i1GGEU..GX61198208-198407

main90919-03094iMU..MX60198304-198407

9011906157

main90119-06157

9017904092

main90179-04092

9161140610

main91611-40610

19 parts on this diagram · 11 diagrams in section
