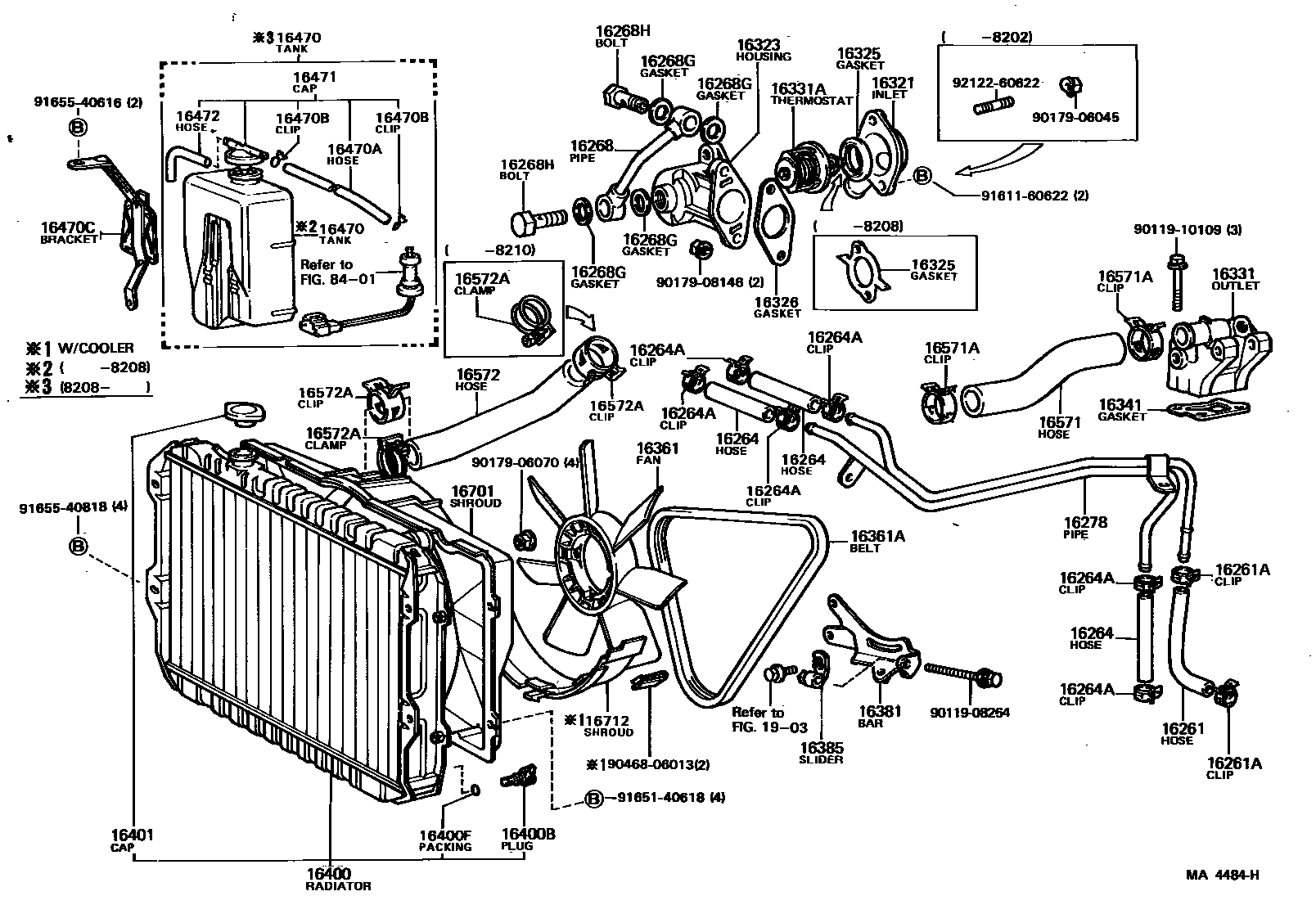

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

16261HOSE, WATER BY-PASS

main16261-25020i13T#..TX6#198009-198407

main16261-35010i21RU..RX60198009-198207

main16261-35040i21RU..RX60198207-198208

main16261-41090iMTEU..MX61198308-198407

main16261-54020i2LTE..LX65198208-198407

main16261-63010i1SU..SX60198208-198407

main16261-70010i1GEU..GX6#198009-198102

main16261-70020i1GEU..GX6#198102-198407

sub16261-70030

main16261-88271i18RGEU..RX63198009-198208

ID=12

main16261-88300i1GGEU..GX61198208-198407

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-32001i1GGEU..GX61198208-198304

sub90467-26003

main90467-13001i1GEU..GX6#198009-198407

sub96135-51300

main90467-15004i2LTE..LX65198208-198407

main90467-20004i21RU..RX60198009-198010

sub90467-20005

main90467-20005i13T#..TX6#198010-198407

sub96134-41900

main90467-20134i18RGEU..RX63198009-198208

main90467-26003i1GGEU..GX61198304-198407

sub90467-26007

main96111-10250i1SU..SX60198208-198308

sub96112-10250

main96112-10250i1SU..SX60198308-198407

16264HOSE, WATER BY-PASS, NO.2

main16264-54020i2LTE..LX65198208-198407

main99553-00130i1SU..SX60198308-198405

L=130

sub99555-00200

main99553-00200i1SU..SX60198307-198308

COLD SPEC

sub99555-00200

main99553-10100i1GEU..GX6#198009-198308

sub99555-10100

main99555-00140i1SU..SX60198405-198407

sub99555-00150

main99555-10100i1GEU..GX6#198308-198407

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i1SU..SX60198307-198308

COLD SPEC

sub96135-51100

main90467-11009i1SU..SX60198308-198407

sub96135-51100

main90467-13001i1GEU..GX6#198009-198407

sub96135-51300

main90467-15004i2LTE..LX65198208-198407

16268PIPE, WATER BY-PASS, NO.1

main16268-35010i21RU..RX60198009-198208

main16268-41140i5MEU,MTEU..MX61,63198009-198407

main16268-41150iMU..MX60198101-198407

main16268-45021iMU..MX60198011-198101

sub16268-41150

sub90461-08551

main16268-63030i1SU..SX60198307-198308

COLD SPEC

main16268-70010i1GEU..GX6#198009-198407

sub16268-70011

main16268-72010i2YPU..SX60198302-198407

*30

main16268-88273i18RGEU..RX63198009-198208

main16268-88300i1GGEU..GX61198208-198407

sub16268-88301

16268GGASKET(FOR WATER BY-PASS PIPE)

main90430-12005iMTEU..MX61198308-198407

WATER PUMP & MANIFOLD SIDE

main90430-18012i1GEU..GX6#198009-198407

main90430-18012iMTEU..MX61198308-198407

TURBO SIDE

16268HBOLT, UNION(FOR WATER BY-PASS PIPE)

main90401-12097iMTEU..MX61198308-198407

WATER PUMP & MANIFOLD SIDE

main90401-18006i1GEU..GX6#198009-198407

main90401-18012iMTEU..MX61198308-198407

TURBO SIDE

16278PIPE, WATER BY-PASS, NO.2

main16278-41030iMTEU..MX61198308-198407

main16278-70010i1GEU..GX6#198009-198012

sub16278-70020

sub16261-70020

main16278-70020i1GEU..GX6#198012-198108

sub16278-70021

main16278-70021i1GEU..GX6#198108-198407

main16278-88300i1GGEU..GX61198208-198407

16321INLET, WATER

main16321-70010i1GEU..GX6#198009-198208

sub16321-70011

main16321-70011i1GEU..GX6#198208-198407

main16321-71010i2YPU..SX60198302-198407

*30

main16321-88300i1GGEU..GX61198208-198407

16323HOUSING, WATER INLET

main16323-63010i1SU..SX60198208-198407

main16323-70010i1GEU..GX6#198009-198208

sub16323-70011

sub16325-63010

main16323-70011i1GEU..GX6#198208-198407

16325GASKET, WATER INLET HOUSING, NO.1

main16325-15010i1GEU..GX6#198009-198105

sub16325-70020

main16325-63010i1SU,2YPU..SX60198208-198407

sub16325-63011

main16325-70020i1GEU..GX6#198105-198112

sub16325-70021

main16325-70021i1GEU..GX6#198112-198208

16326GASKET, WATER INLET HOUSING, NO.2

main16326-70010i1GEU..GX6#198009-198112

sub16326-70011

main16326-70011i1G#..GX6#198112-198407

sub16326-70012

16331OUTLET, WATER

main16304-63010i1SU..SX60198307-198308

COLD SPEC

main16331-26031i13TU..TX60198009-198208

main16331-27010i13TJ..TX67198011-198208

main16331-27020i13TJ..TX67198208-198407

main16331-37030i21RU..RX60198009-198208

main16331-41071i5MEU,MTEU..MX61,63198009-198308

sub16331-43020

main16331-41080iMU..MX60198308-198407

main16331-43020iMTEU..MX61198308-198407

main16331-45030iMU..MX60198011-198308

main16331-54010iL..LX6#198009-198208

main16331-54030iL,2LTE..LX6#198208-198407

main16331-63010i1SU..SX60..5F198208-198407

main16331-63020i1SU..SX60..4FC198208-198407

main16331-70010i1GEU..GX6#198009-198308

main16331-70020i1GEU..GX6#198308-198407

main16331-71010i2YPU..SX60198302-198407

*30

main16331-88270i18RGEU..RX63198009-198208

main16331-88300i1GGEU..GX61198208-198407

16331ATHERMOSTAT

main90916-03034i5MEU,MTEU,MU..MX6#198009-198208

*WAX 82-95,FUJI-THOMSON

main90916-03036i21RU,18RGEU..RX6#198009-198212

*WAX 88-100,FUJI-THOMSON

sub90916-03040

main90916-03037i5MEU,MTEU,MU..MX6#198009-198212

*WAX 82-95,KUZEH

sub90916-03083

main90916-03040i5MEU,MTEU,MU..MX6#198009-198212

*WAX 88-100,KUZEH

sub90916-03078

main90916-03042iL..LX6#198009-198110

*WAX 82-95

sub90916-03061

main90916-03043iL..LX6#198009-198110

COLD SPEC,*WAX 88-100

sub90916-03062

main90916-03046i1SU,2YPU..SX60198208-198407

main90916-03046i1GEU..GX6#198009-198011

main90916-03054iMTEU,MU..MX6#198212-198407

sub90916-03083

main90916-03055iMTEU,MU..MX6#198212-198407

sub90916-03078

main90916-03055i13TJ..TX67198212-198407

sub90916-03078

main90916-03060i1GEU..GX6#198012-198407

sub90916-03090

main90916-03061iL,2LTE..LX6#198110-198307

*WAX 82-95

main90916-03062iL,2LTE..LX6#198110-198307

sub90916-03072

main90916-03062iL,2LTE..LX6#198307-198407

sub90916-03072

main90916-03063i1GGEU..GX61198208-198407

16341GASKET, WATER OUTLET

main16341-38010i13T#..TX6#198009-198208

main16341-38011i13T#..TX6#198201-198407

main16341-38020i21RU..RX60198009-198208

main16341-41010iMTEU,MU..MX6#198009-198407

sub16341-38021

main16341-54010iL,2LTE..LX6#198208-198304

sub16341-54011

main16341-54011iL,2LTE..LX6#198304-198407

sub16341-54030

main16341-63010i1SU..SX60198208-198407

sub16341-63011

main16341-70010i1GEU..GX6#198009-198407

main16341-71010i2YPU..SX60198302-198407

*30

sub16341-71011

main16341-88260i18RGEU..RX63198009-198208

sub16341-88280

16361FAN

main16361-18010i13TU..TX60..GL198009-198208

W/POWER STEERING

sub16361-16010

main16361-26040i13T#..TX6#198009-198407

main16361-34030i18RGEU..RX63198009-198208

7 BLADES

main16361-38010i21RU..RX60198009-198407

7 BLADES

main16361-41050i2LTE..LX65198208-198407

main16361-41070i1GGEU..GX61198208-198407

sub16361-41071

main16361-41090i5MEU,MTEU,MU..MX6#198009-198407

7 BLADES

main16361-45020i1SU..SX60198208-198407

main16361-70010i1GEU..GX6#198009-198407

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076i5MEU,MTEU,MU..MX6#198009-198308

DOUBLE V BELTS,L=925

main90916-02119i2LTE..LX65198208-198211

DOUBLE V BELTS

sub90916-02282

main90916-02132i2LTE..LX65198211-198407

DOUBLE V BELTS

sub90916-02281

main90916-02133iL..LX60,67198211-198407

L=990

main99321-00850i18RGEU..RX63198009-198208

L=850

main99321-00885i13T#..TX6#198009-198407

main99331-00880i21RU..RX60198009-198208

L=880

main99332-00985iL..LX6#198009-198104

L=985

main99332-10985iL..LX6#198104-198207

L=985

main99332-11000iL..LX60,67198207-198211

L=1000

main99332-51130i1GEU..GX6#198009-198308

main99363-01150i1SU..SX60198208-198407

sub99363-31150

main99364-01100i1GEU..GX6#198308-198407

sub99364-81100

main99364-50830i2YPU..SX60198302-198407

*30

sub99364-80830

main99364-51160i1GGEU..GX61198208-198407

sub99364-81160

main99367-00920iMTEU,MU..MX6#198308-198407

16381BAR, FAN BELT ADJUSTING

main16381-25010i13T#..TX6#198009-198407

main16381-34030i18RGEU..RX63198009-198208

main16381-38020i21RU..RX60198009-198208

main16381-43010iMTEU,MU..MX6#198308-198407

main16381-45011i5MEU,MTEU,MU..MX6#198009-198308

main16381-54011iL,2LTE..LX6#198009-198407

main16381-63010i1SU..SX60198208-198407

main16381-70010i1GEU..GX6#198009-198308

main16381-70020i1GEU..GX6#198308-198407

sub16381-70021

main16381-71010i2YPU..SX60198302-198407

*30

main16381-88300i1GGEU..GX61198208-198407

sub16381-88301

16385SLIDER, FAN BELT ADJUSTING

main16385-70010i1GEU..GX6#198009-198308

sub16385-70011

main16385-70011i1GEU..GX6#198308-198407

16400RADIATOR ASSY

main16400-28010i13T#..TX6#..4F198009-198407

main16400-28020i13T#..TX6#..3FC198009-198407

main16400-37040i21RU..RX60..MTM198009-198208

main16400-37050i21RU..RX60..4FC198009-198208

main16400-37070i18RGEU..RX63198009-198208

sub16400-37110

main16400-37070i2YPU..SX60198302-198407

*30

sub16400-37110

main16400-41280i1G#..GX6#..ATM198009-198407

main16400-41320iMTEU..MX61198110-198306

sub16410-41211

main16400-41321iMTEU..MX61198404-198407

main16400-54120iL..LX6#..5F198009-198407

sub16400-54131

main16400-54130iL..LX60..4FC198009-198208

sub16400-54131

main16400-54131iL..LX60..4FC198208-198407

sub16400-54190

main16400-54190i2LTE..LX65198208-198407

main16400-54230iL..LX67198208-198407

sub16400-54131

main16400-63050i1SU..SX60..5F198208-198407

sub16400-63060

main16400-63060i1SU..SX60..4FC198208-198407

main16400-70010iMU..MX60..4F198009-198407

sub16400-41280

main16400-70020i1GEU..GX6#..ATM198009-198208

sub16400-41280

main16410-41211iMTEU..MX61198306-198404

sub16400-41321

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054iL,2LTE..LX6#198009-198407

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i13T#..TX6#198009-198110

sub96711-19007

main96711-19007iL,2LTE..LX6#198110-198407

16401CAP SUB-ASSY, RADIATOR

main16401-36011iL,2LTE..LX6#198009-198407

16470TANK ASSY, RADIATOR RESERVE

main16470-41180iMTEU..MX61198308-198407

main16470-63020i1SU,2YPU..SX60198208-198407

main16470-70030i1GEU..GX61..LE198208-198407

sub16470-63020

main16470-70040i1GEU..GX60;1G#..GX61..GD,LG198208-198407

W/OK MONITOR

sub16470-37010

main16480-24010iL..LX60,67198009-198407

main16480-70010i2LTE..LX65198009-198407

main16480-70020i18RGEU..RX63198009-198208

W/OK MONITOR

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12063i21RU,18RGEU..RX6#198009-198407

*H,L=300

sub90445-12078

main90445-12067i2LTE..LX65198208-198407

main90445-12073iL..LX60,67198009-198407

sub90099-33370

main90445-12097i5MEU,MTEU,MU..MX6#198009-198208

sub90445-12043

main90445-12115iMTEU,MU..MX6#198208-198407

sub90445-12078

main90445-12117i13TJ..TX67198208-198407

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1SU,2YPU..SX60198009-198407

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-18010i21RU,18RGEU..RX6#198009-198208

main16402-54020i2LTE..LX65198208-198407

main16402-70010i5MEU,MTEU,MU..MX6#198009-198208

main16402-70020i1SU,2YPU..SX60198208-198407

main16611-54010iL..LX60,67198009-198407

16471CAP SUB-ASSY, RESERVE TANK

main16405-18010i21RU,18RGEU..RX6#198009-198208

sub16405-54030

main16405-54010iL..LX60,67198009-198407

sub16405-56021

main16405-54030i2LTE..LX65198208-198407

sub16405-52011

main16405-63020i13TJ..TX67198208-198407

main16405-70010i5MEU,MTEU,MU..MX6#198009-198208

sub16405-18010

main16405-70020i1G#..GX6#198208-198407

sub16405-63020

16472HOSE, BREATHER

main85338-22020iL,2LTE..LX6#198009-198407

main85338-22030i1G#..GX6#198208-198407

16571HOSE, RADIATOR, INLET

main16571-18040i13TU..TX60..GL198009-198208

W/POWER STEERING

main16571-34120i18RGEU..RX63198009-198208

main16571-37040i21RU..RX60198009-198208

main16571-41090i5MEU,MTEU,MU..MX6#198009-198308

main16571-41120iMTEU,MU..MX6#198308-198407

main16571-54070iL..LX6#198009-198208

sub16571-54100

main16571-54100iL,2LTE..LX6#198208-198407

main16571-63030i1SU..SX60198208-198407

main16571-70010i1GEU..GX6#198009-198407

main16571-70040i1GGEU..GX61198208-198407

main16571-72030i2YPU..SX60198302-198407

*30

main90916-01168i13T#..TX6#198009-198407

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001i1SU..SX60198208-198407

WATER OUTLET SIDE

sub90467-33003

main90467-37001i13T#..TX6#198009-198407

sub90467-37003

main90467-37001i21RU,18RGEU..RX6#198009-198103

WATER OUTLET SIDE

sub90467-37003

main90467-37001i1SU..SX60198208-198407

RADIATOR SIDE

sub90467-37003

main96111-10430i21RU,18RGEU..RX6#198009-198103

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16571-18030i13T#..TX6#198009-198407

main16572-34070i18RGEU..RX63198009-198208

main16572-37030i21RU..RX60198009-198208

main16572-41080i5MEU,MTEU,MU..MX6#198009-198407

main16572-54070iL,2LTE..LX6#198009-198407

main16572-63030i1SU..SX60198208-198407

main16572-70010i1GEU..GX6#198009-198207

sub16572-70011

sub96111-10430

main16572-70011i1GEU..GX6#198207-198407

main16572-70040i1GGEU..GX61198208-198407

main16572-72030i2YPU..SX60198302-198407

*30

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-49062i18RGEU..RX63198009-198407

WATER PUMP SIDE

sub96111-10490

main90467-34001i1SU..SX60198208-198407

WATER INLET SIDE

sub90467-33003

main90467-37001i1SU..SX60198208-198407

RADIATOR SIDE

sub90467-37003

main90467-37001i2YPU..SX60198302-198407

*30

sub90467-37003

main90467-37001iMTEU,MU..MX6#198210-198407

WATER PUMP SIDE;RADIATOR SIDE CLIP

sub90467-37003

main90467-37001iMTEU,MU..MX6#198210-198407

WATER INLET SIDE;RADIATOR SIDE CLIP

sub90467-37003

main96111-10430i1GEU..GX6#198210-198407

RADIATOR SIDE CLAMP

main96111-10430i5MEU,MTEU,MU..MX6#198009-198210

ID=43

main96111-10430i1GEU..GX6#198207-198210

main96111-10460iL,2LTE..LX6#198009-198407

RADIATOR SIDE

main96111-10460i1GEU..GX6#198009-198407

main96111-10480i21RU..RX60198009-198208

WATER PUMP SIDE,ID=48

main96111-10500iL,2LTE..LX6#198009-198407

PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16701-54050iL,2LTE..LX6#198208-198407

main16711-25030i13T#..TX6#198009-198407

main16711-34100i21RU,18RGEU..RX6#198009-198208

main16711-43010i5MEU,MTEU,MU..MX6#198009-198304

sub16711-43011

main16711-43011iMTEU,MU..MX6#198304-198407

main16711-54080iL..LX6#198009-198208

sub16701-54050

main16711-63040i1SU..SX60198208-198407

main16711-70010i1G#..GX6#198009-198407

main16711-72030i2YPU..SX60198302-198407

*30

16712SHROUD, FAN, NO.2

main16712-25040i13T#..TX6#198009-198407

W/COOLER

main16712-34070i21RU,18RGEU..RX6#198009-198208

W/COOLER

main16712-43010i5MEU,MTEU,MU..MX6#198009-198407

W/COOLER

main16712-54050i1SU..SX60198208-198407

W/COOLER

main16712-54060iL,2LTE..LX6#198009-198407

W/COOLER

main16712-70010i1G#..GX6#198009-198407

W/COOLER

1903

8401

9011908264

main90119-08264

9011910109

main90119-10109

9017906045

main90179-06045

9017906070

main90179-06070

9017908146

main90179-08146

9046806013

main90468-06013

9161160622

main91611-60622

9165140618

main91651-40618

9165540616

main91655-40616

9165540818

main91655-40818

9212260622

main92122-60622

48 parts on this diagram · 18 diagrams in section
