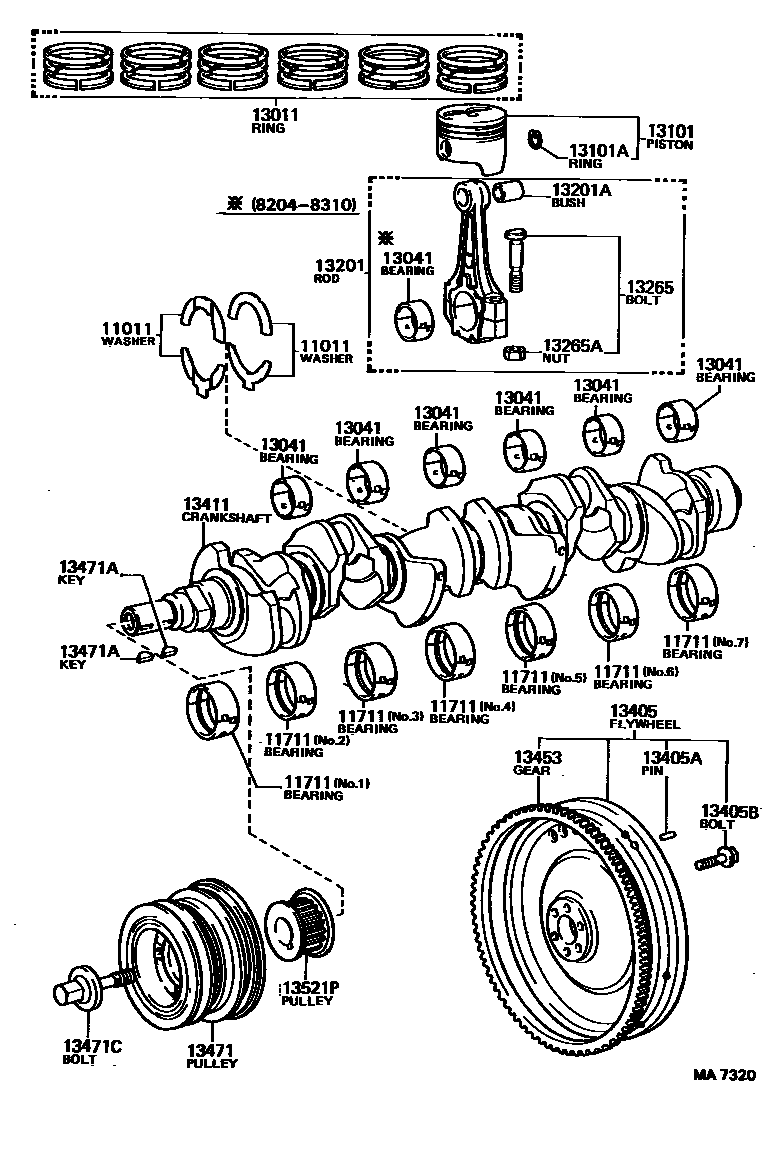

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
sub11011-35011
sub11011-54020
O/S 0.125
sub11012-35021
sub11012-54020
O/S 0.250
sub11013-35021
sub11013-35021
sub11013-54020
11711BEARING, CRANKSHAFT
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
NO.2,3,4,5,6 MARK"1",MARK 1
NO.2,3,4,5,6 MARK"2",MARK 2
NO.2,3,4,5,6 MARK"3",MARK 3
*30,MARK"1",MARK 1
*30,MARK"2",MARK 2
*30,MARK"3",MARK 3
13011RING SET, PISTON
STD
STD
sub13011-43030
STD,TAXI
STD
sub13011-54061
sub13011-63011
STD
O/S 0.50
O/S 0.50
sub13013-43031
O/S 0.50,TAXI
sub13013-63011
O/S 0.50
O/S 0.75
sub13014-43031
sub13014-63011
O/S 1.00
O/S 1.00
sub13015-43031
sub13015-63011
O/S 1.00
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"3" OR "6",MARK 3
MARK"4" OR "7",MARK 4
MARK"5" OR "8",MARK 5
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
sub13101-43011
STD,TAXI
STD
STD
STD
STD,TAXI
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
sub13103-43031
O/S 0.50
O/S 0.50,TAXI
O/S 0.50
O/S 0.50
O/S 0.50,TAXI
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
sub13104-43031
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
sub13105-43031
O/S 1.00
O/S 1.00
13201ROD SUB-ASSY, CONNECTING
sub13201-34012
sub13201-35020
sub13201-49015
sub13201-59016
sub13201-59017
sub13201-59026
sub13201-69055
sub13201-79015
*30
sub13201-79026
sub13201-79056
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
*10-1.25PX26-18
13411CRANKSHAFT
sub13401-54012
sub13401-54013
sub13401-54021
sub13041-88281
sub13411-70011
sub13411-70012
sub13411-70021
sub13411-70903
13453GEAR, FLYWHEEL RING
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=20
20 parts on this diagram · 11 diagrams in section
