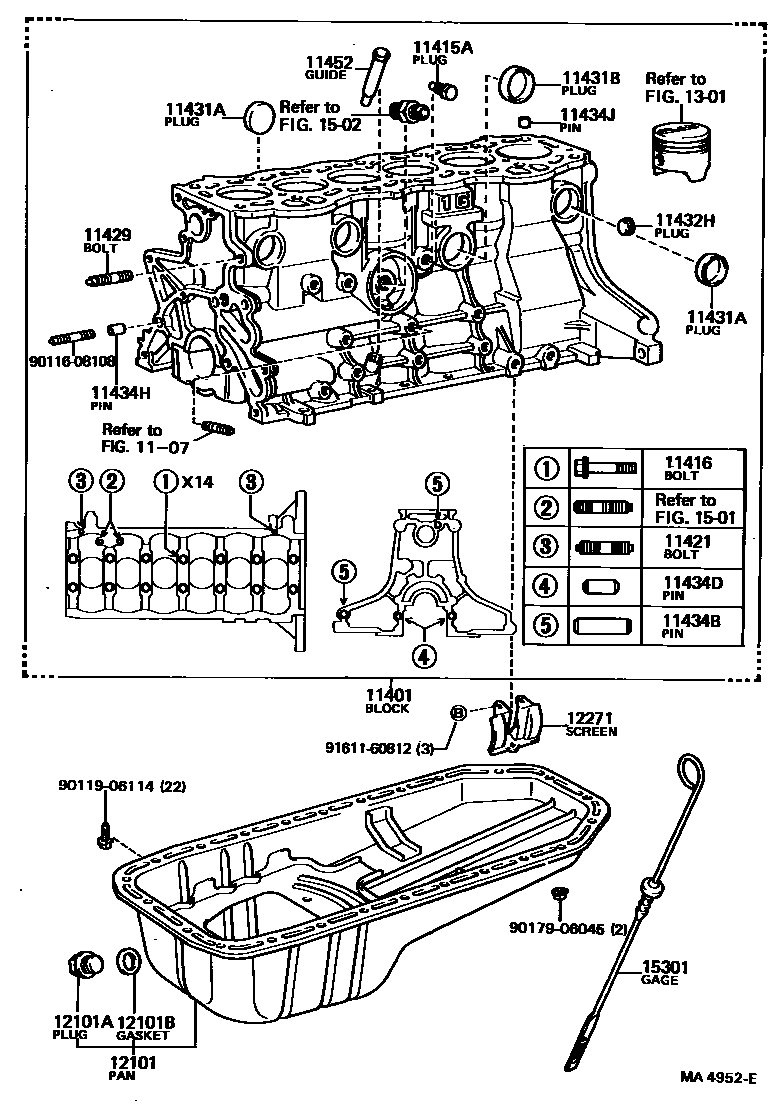

CYLINDER BLOCK
1107
11401BLOCK SUB-ASSY, CYLINDER
sub11401-19087
sub11401-19088
sub11401-39375
sub11401-39345
sub11401-39356
sub11401-49385
sub11494-41010
sub15473-41010
sub90179-08012
sub90341-12011
sub90345-51006
sub90430-12010
sub92122-40818
sub11401-49276
sub11401-49415
sub11071-43010
sub11452-41020
sub90116-08111
sub90116-08121
sub90116-08147
sub90116-08191
sub90116-10010
sub90116-10097
sub90179-10016
sub90345-51006
sub90404-20173
sub90910-09070
sub11401-49306
sub11401-49375
sub11401-49395
sub11494-41010
sub15473-41010
sub90179-08012
sub90341-12011
sub90345-51006
sub90430-12010
sub92122-40818
sub11401-59155
sub11401-59195
sub11401-59185
sub11401-59185
sub11401-59166
sub11401-59167
sub11401-59195
sub11401-59236
sub11401-79017
sub11401-79018
sub11401-79155
sub11401-79016
sub11401-79056
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*10-1.25PX67-18
*12-1.25PX62-21
*12-1.25PX75-25
*12-1.25PX67-22
11421BOLT, STUD(FOR OIL PAN)
L=24.5,S=8.5&8.5
L=29,S=13&13
L=26,S=12&12
11429BOLT, STUD(FOR ALTERNATOR BRACKET)
L=70,S=12&22
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
*30
OD=25
OD=35
OD=40
OD=45
OD=50
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=35
OD=40
OD=35
11432HPLUG, W/HEAD TAPER SCREW, NO.5
NO.2
NO.1
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=16,OD=17
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
11434HPIN, RING (FOR TIMING BELT COVER SET)
11434JPIN, RING (FOR CYLINDER HEAD SET)
*30
11452GUIDE, OIL LEVEL GAGE
*30
UPR,W/POWER STEERING
12101PAN SUB-ASSY, OIL
sub12101-29076
sub12101-29106
sub12101-39307
sub12101-49296
sub12101-49306
sub12101-63011
12101APLUG(FOR OIL PAN DRAIN)
sub90033-41020
12101BGASKET(FOR OIL PAN DRAIN PLUG)
sub90430-18023
12271SCREEN, OIL SEPARATOR
1301
1501
1502
9011608108
main90116-08108
9011906114
main90119-06114
9017906045
main90179-06045
9161160812
main91611-60812
27 parts on this diagram · 16 diagrams in section
