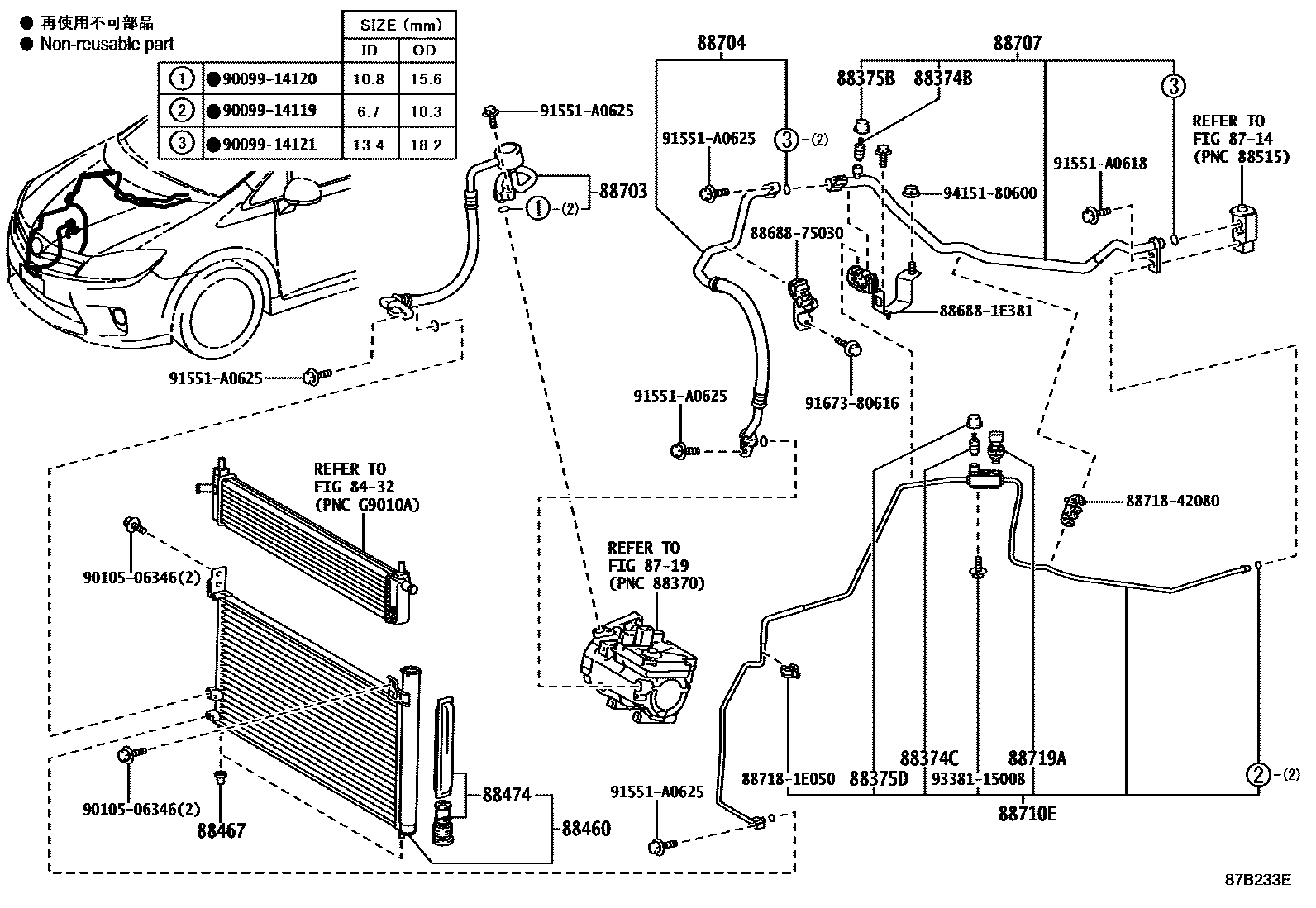

HEATING & AIR CONDITIONING - COOLER PIPING

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAZK10..CBU200911-201308

88374CVALVE, SERVICE, NO.2

main88374-30010iAZK10..CBU200911-201308

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAZK10..CBU200911-201308

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iAZK10..CBU200911-201308

88460CONDENSER ASSY, COOLER

main88460-75010iAZK10..CBU200911-201802

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iAZK10..CBU200911-201802

88474DRYER, COOLER

main88474-47020iAZK10..CBU200911-201308

88703HOSE SUB-ASSY, DISCHARGE

main88703-75010iAZK10..CBU200911-201308

88704HOSE SUB-ASSY, SUCTION

main88704-75010iAZK10..CBU200911-201308

sub88704-75020

main88704-75020iAZK10..CBU201308

88707PIPE SUB-ASSY, SUCTION

main88707-75010iAZK10..CBU200911-201308

sub88707-75020

main88707-75020iAZK10..CBU201308

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-75010iAZK10..CBU200911-201110

main88710-75020iAZK10..CBU201110-201308

sub88710-75030

main88710-75030iAZK10..CBU201308

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAZK10..CBU200911-201308

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

8868875030BRACKET, COOLER DIAPHRAGM

main88688-75030

887181E050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E050

8871842080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-42080

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

91551A0618

main91551-A0618

91551A0625

main91551-A0625

9167380616

main91673-80616

9338115008

main93381-15008

9415180600

main94151-80600

28 parts on this diagram · 1 diagram in section
