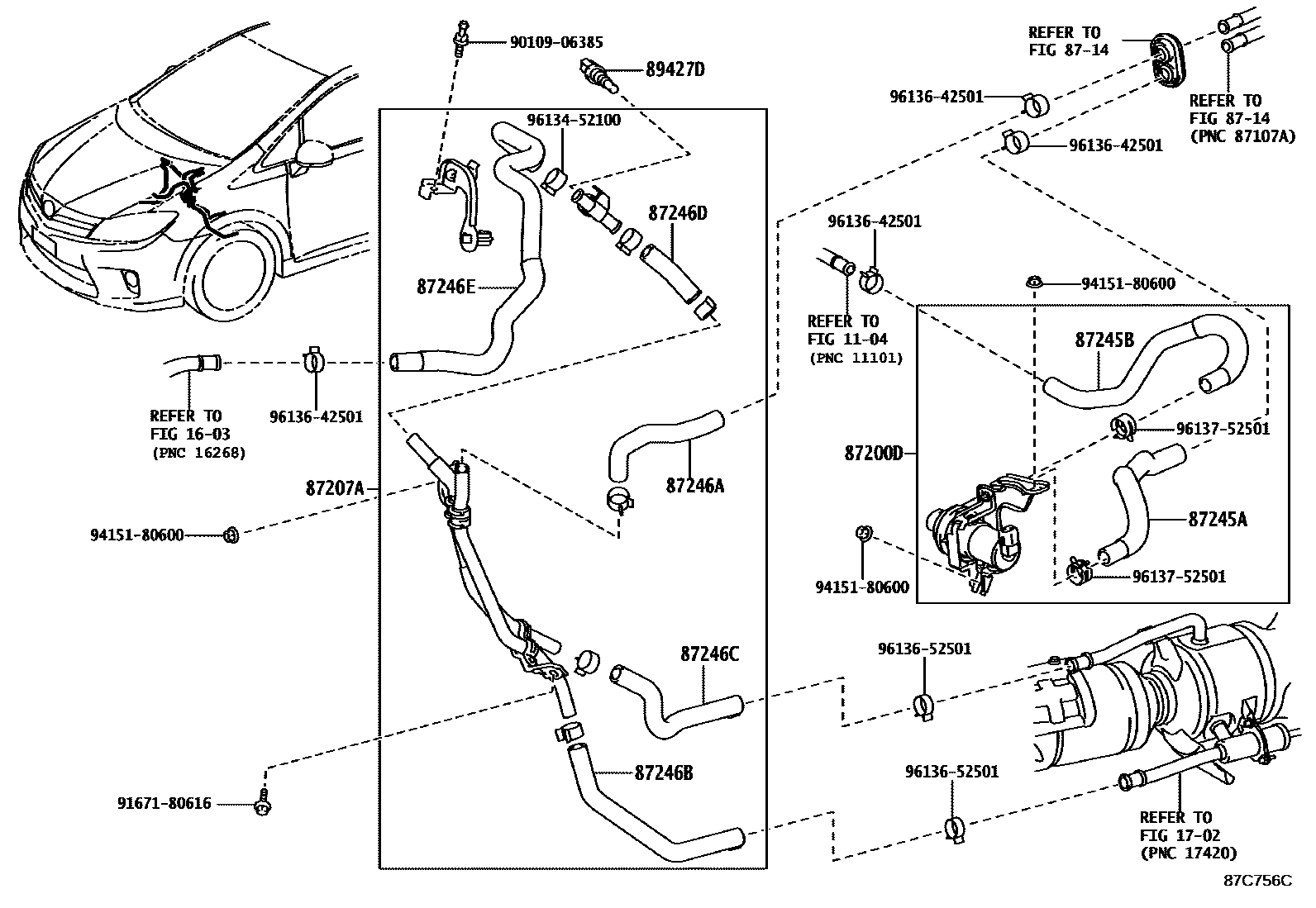

HEATING & AIR CONDITIONING - WATER PIPING

1104

1603

1702

8714

87200DACCESSORY ASSY, HEATER

main87200-75010iAZK10..CBU200911-201308

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-75010iAZK10..CBU200911-201308

87245AHOSE, HEATER WATER, INLET A

main87245-75010iAZK10..CBU200911-201308

87245BHOSE, HEATER WATER, INLET B

main87245-75020iAZK10..CBU200911-201308

87246AHOSE, HEATER WATER, OUTLET A

main87245-75030iAZK10..CBU200911-201308

87246BHOSE, HEATER WATER, OUTLET B

main87245-75040iAZK10..CBU200911-201308

87246CHOSE, HEATER WATER, OUTLET C

main87245-75050iAZK10..CBU200911-201308

87246DHOSE, HEATER WATER, OUTLET D

main87245-75060iAZK10..CBU200911-201308

87246EHOSE, HEATER WATER, OUTLET E

main87245-75070iAZK10..CBU200911-201308

89427DSWITCH, TEMPERATURE

main89428-12170iAZK10..CBU200911-201802

sub89428-12180

9010906385

main90109-06385

9167180616

main91671-80616

9415180600

main94151-80600

9613452100

main96134-52100

9613642501

main96136-42501

9613652501

main96136-52501

9613752501

main96137-52501

21 parts on this diagram · 1 diagram in section
