RADIO RECEIVER & AMPLIFIER & CONDENSER

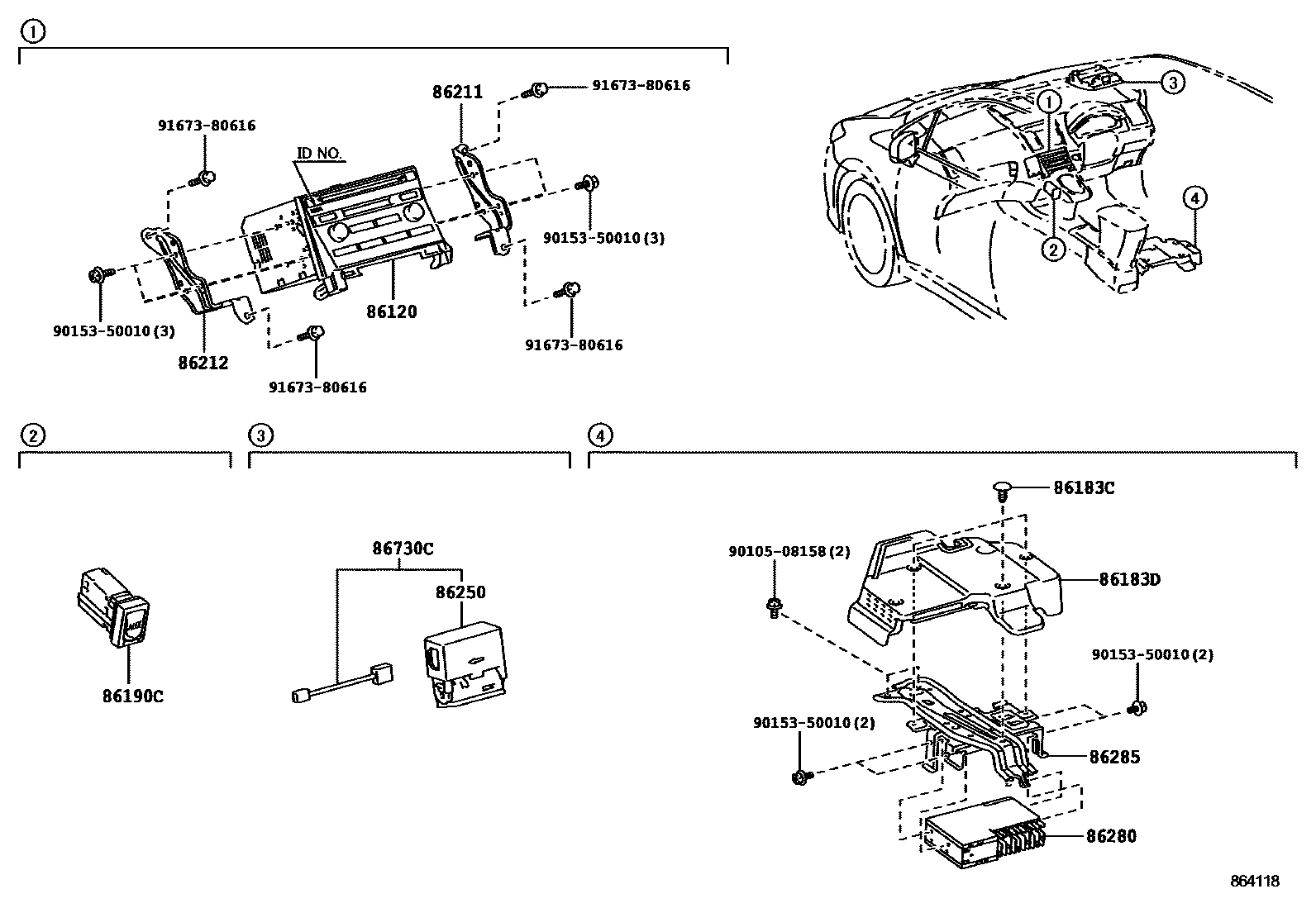

Parts diagram
86120RECEIVER ASSY, RADIO
main86120-75210i200911-201003
sub86120-75211
main86120-75210i200911-201003
sub86120-75211
main86120-75211i201004-201008
sub86120-75212
main86120-75211i201004-201008
sub86120-75212
main86120-75212i201009-201103
sub86120-75213
main86120-75212i201009-201103
sub86120-75213
main86120-75213i201104-201108
sub86120-75214
main86120-75213i201104-201108
sub86120-75214
main86120-75214i201109-201111
main86120-75214i201109-201111
main86120-75251i201111-201205
sub86120-75252
main86120-75252i201206-201208
sub86120-75253
main86120-75253i201209-201303
sub86120-75254
main86120-75254i201304-201308
main86120-75260i200911-201003
sub86120-75261
main86120-75261i201004-201008
sub86120-75262
main86120-75262i201009-201103
sub86120-75263
main86120-75263i201104-201108
main86120-75264i201109-201111
86183CCLIP, AUDIO RACK
main90467-05161-C0i200911-201802
BLACK
sub90467-05161
main90467-05161-C0i201308-201802
sub90467-05161
86183DCOVER, AUDIO AMPLIFIER
main86183-75010i200911-201308
main86183-75010i201308
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-12020i200911-201308
main86190-75020i201308-201504
sub86190-75021
main86190-75021i201505-201802
86211BRACKET, RADIO, NO.1
main86211-75010i200911-201308
main86211-75050i201308
86212BRACKET, RADIO, NO.2
main86212-75010i200911-201308
main86212-75050i201308
86250MICROPHONE ASSY, AMPLIFIER
main86250-52020i200911-201308
86280AMPLIFIER ASSY, STEREO COMPONENT
main86280-75010i200911-201308
main86280-75020i200911-201308
main86280-75100i201308-201504
sub86280-75101
main86280-75101i201505
86285BRACKET, AMPLIFIER, NO.1
main86285-75010i200911-201308
main86285-75020i201308
86730CMICROPHONE ASSY, TELEPHONE
main86730-30220i201508-201802
main86730-75010i200911-201308
main86730-75030i201308-201508
9010508158
main90105-08158
9015350010
main90153-50010
9167380616
main91673-80616

13 parts on this diagram · 5 diagrams in section
