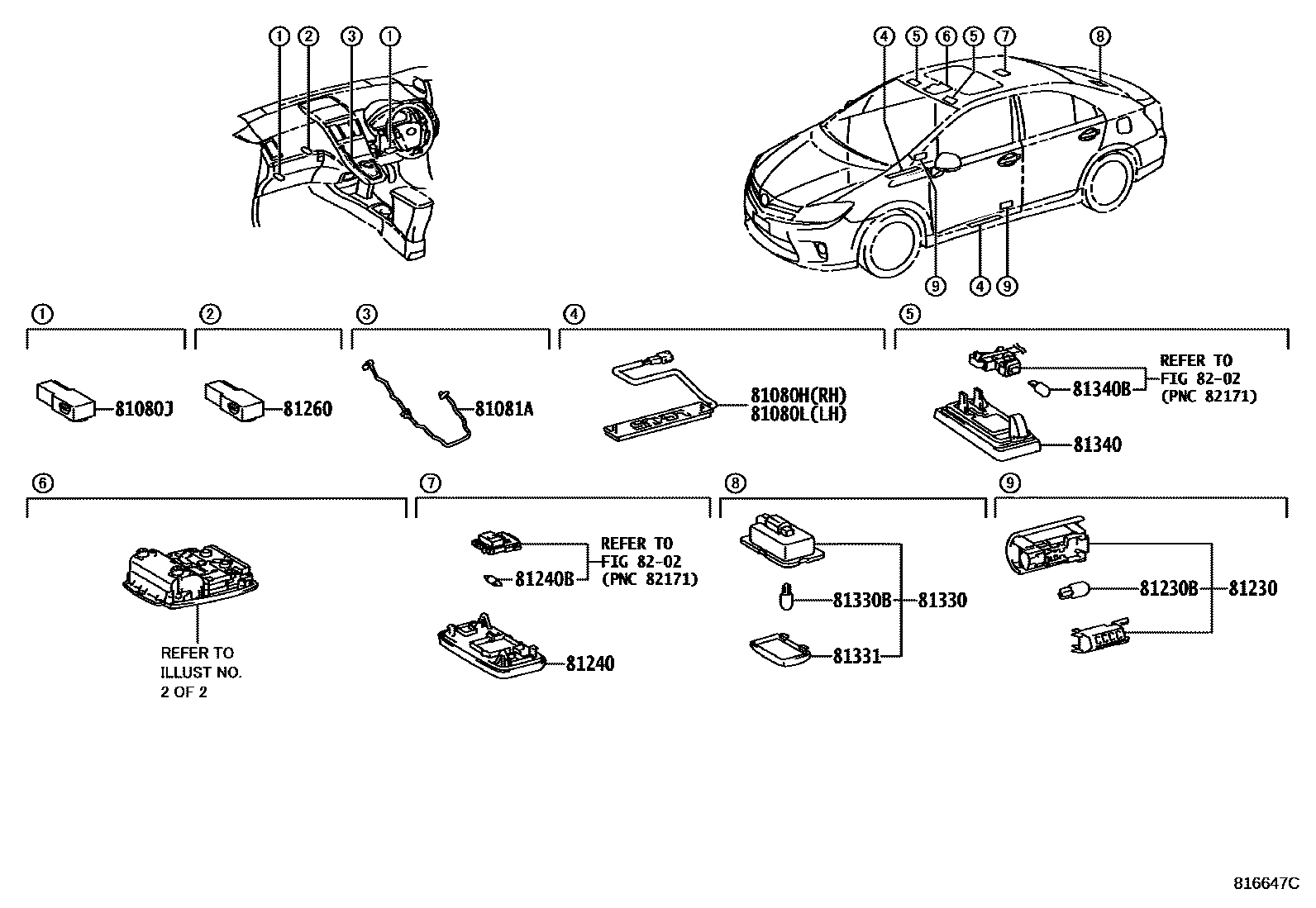

INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
81230BBULB(FOR COURTESY LAMP)
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
SHELL,TRIM0#
GRAY,TRIM1#
GREGE,TRIM4#
81340BBULB (FOR VANITY LAMP)
8202
15 parts on this diagram · 2 diagrams in section
