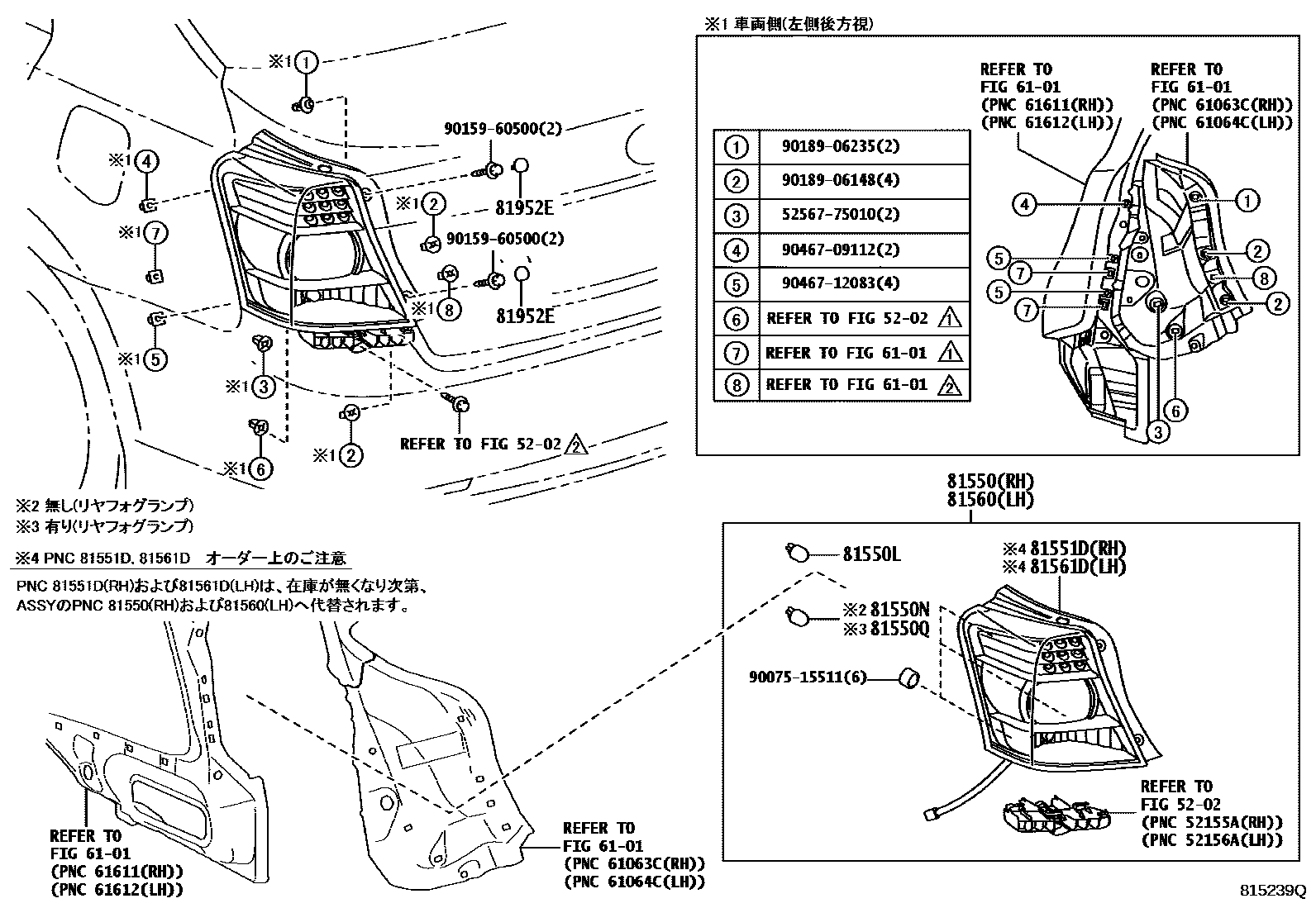

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

5202

6101

81550LAMP ASSY, REAR COMBINATION, RH

main81550-75020supersedes 81550-75010iAZK10..CBU200911-201308

sub81550-75200

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iAZK10..CBU200911-201308

81550NBULB, BACK UP LAMP

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iAZK10..CBU200911-201308

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-75020supersedes 81551-75122iAZK10..CBU200911-201308

sub81550-75200

81560LAMP ASSY, REAR COMBINATION, LH

main81560-75010iAZK10..CBU200911-201308

sub81560-75070

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-75010iAZK10..CBU200911-201308

sub81560-75070

main81561-75050iAZK10..CBU201308-201405

main81561-75051iAZK10..CBU201405-201408

main81561-75120iAZK10..CBU201408-201409

main81561-75121iAZK10..CBU201410-201412

main81561-75122iAZK10..CBU201412

81952ECOVER, REAR LAMP

main81952-22010×4iAZK10..CBU200911-201308

5256775010BRACKET, REAR BUMPER EXTENSION, RH

main52567-75010

9007515511

main90075-15511

9015960500

main90159-60500

9018906148

main90189-06148

9018906235

main90189-06235

9046709112

main90467-09112

9046712083

main90467-12083

17 parts on this diagram · 3 diagrams in section
