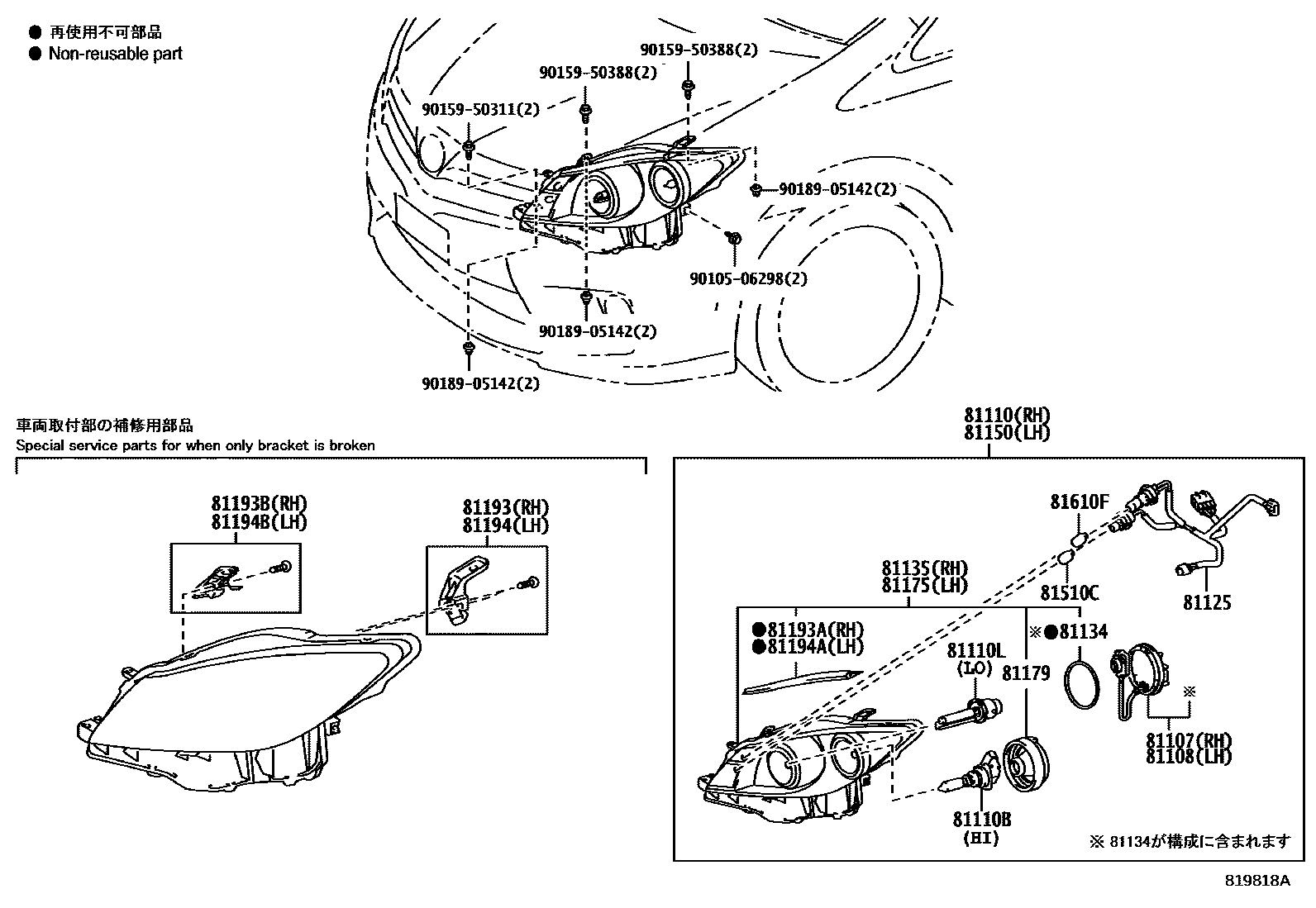

HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81110LBULB, DISCHARGE HEADLAMP
81125CORD, HEADLAMP
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81179COVER, HEADLAMP SOCKET
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193APROTECTOR, HEADLAMP, RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194APROTECTOR, HEADLAMP, LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81610FBULB(FOR CLEARANCE LAMP)
9010506298
main90105-06298
9015950311
main90159-50311
9015950388
main90159-50388
9018905142
main90189-05142
23 parts on this diagram · 4 diagrams in section
