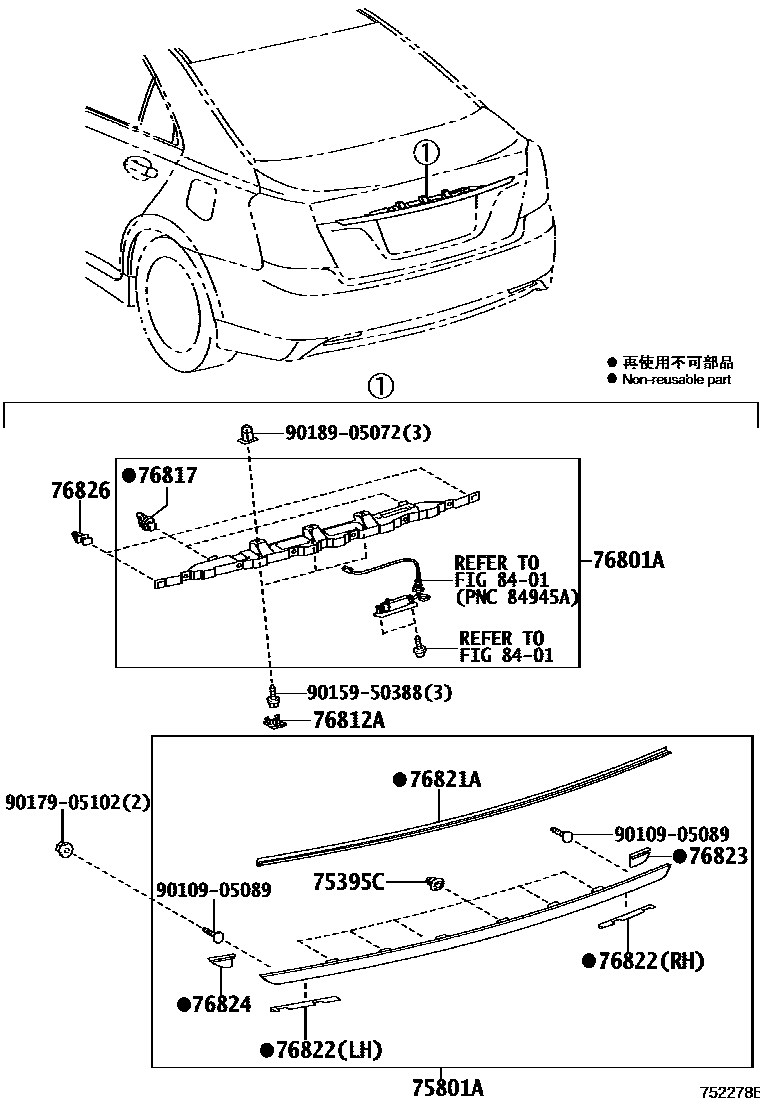

REAR MOULDING
75395CCLIP, OUTSIDE MOULDING, NO.1
75801AMOULDING SUB-ASSY, LUGGAGE COMPARTMENT DOOR
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
AQUA M.M.,782
DK.BLUE MC.,8S6
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76826RETAINER, BACK DOOR GARNISH, NO.1
8401
9010905089
9015950388
9017905102
9018905072
15 parts on this diagram · 2 diagrams in section
